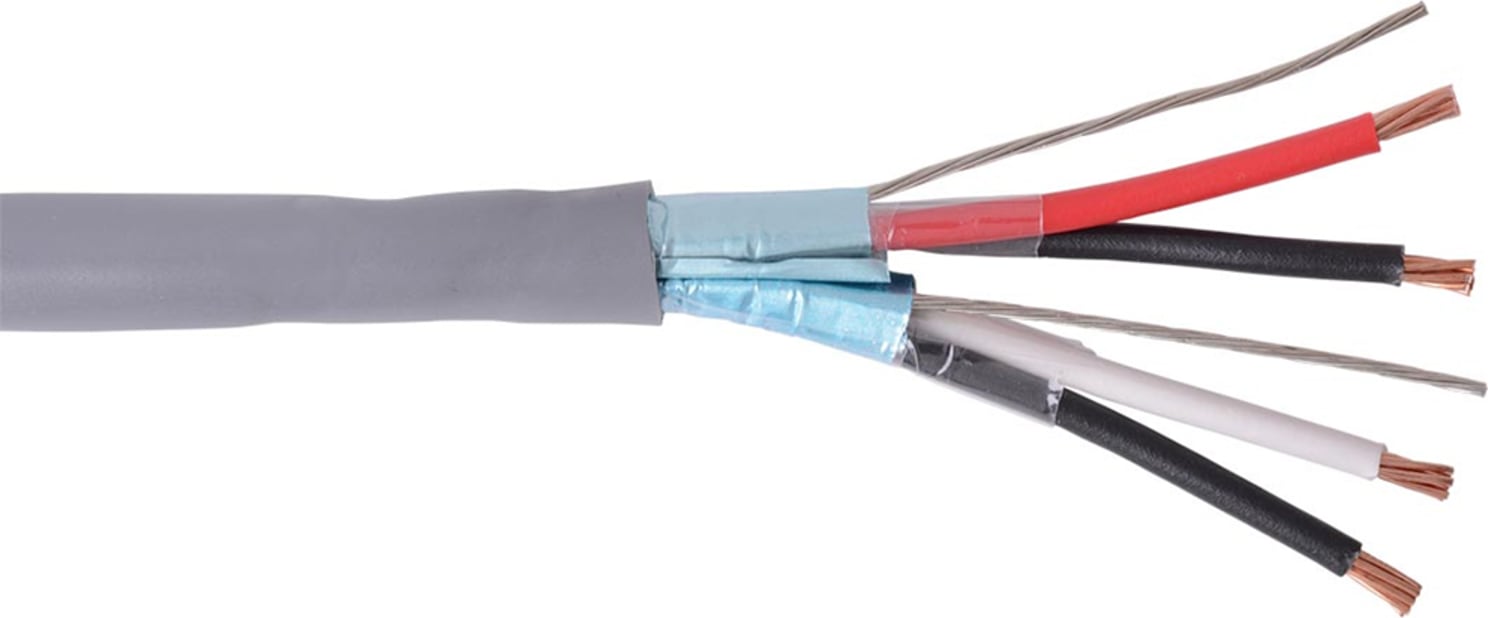

Liberty 22-2P-INDSH-GRY-500 - Grey Commercial 2-Pair Individually Shielded Cable Box

Name: Liberty 22-2P-INDSH-GRY-500 - Grey Commercial 2-Pair Individually Shielded Cable Box
Brand: Liberty
SKU: Liberty22-2P-INDSH-GRY-500
Price: 521.28 USD
Availability: InStock

0 reviews | Model: Liberty 22-2P-INDSH-GRY-500

Compare

Grey Riser Audio and Control 22 AWG 2 Pair Individually Shielded

7-Strand annealed bare copper conductors
Polypropylene dielectric insulation
Tightly twisted and shielded
Each pair individually shielded with its own drain
PVC jacket
NEC CM, CEC CMG FT4, RoHS compliant
1000 foot nested pull boxes

Applications

Line level, microphone audio
Balanced and unbalanced audio formats
Infrared (IR), RS-232C signaling
Class 2 and Class 3 low voltage power
Instrumentation and control

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $521.28

See Price

Request Quote

Recommended for you

Liberty 22-2P-INDSH-GRY-500 - Grey Commercial 2-Pair Individually Shielded Cable Box

Grey Riser Audio and Control 2 pair 22 AWG stranded, twisted, and individually shielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

General Specifications
Conductor	22 AWG 7-strand annealed bare copper conductors Diameter: 0.029" \| 0.74mm Electrical DC resistance: 16.4 Ω / 1000' \| 53.79 Ω/KM Mutual capacitance: 27.1 pF/FT \| 88.89 pF/M Impedance: 56 Ω Velocity of Propagation: 67% Voltage rating: 300V Maximum current: 2.3A@25˚C
Insulation	polypropylene Wall thickness: 0.008" \| 0.20mm Diameter: 0.048" \| 1.14mm
Regulatory	NEC: CMR 75˚C CEC: CMG FT4 60˚C EU RoHS 2002/95/EC Compliant
Color Code	Pair 1: Red, Black Pair 2: White, Green
Packages	Reel: 1000' \| 305M Weight: 24 Lbs/1000' \| 36 Kg/KM
Assembly	Pair lay length: 3.0" \| 80mm 4.0 twists per foot \| 12.5 twists per meter 2 Shielded pairs cabled on a common axis
Installation	Pull Tension: 29 Lbs \| 129 N Bend radius: 2.02" \| 52mm unloaded Bend radius: 4.04" \| 104mm loaded
Construct	Ripcord under jacket
Applications	Riser line level balanced audio Riser General purpose security and low voltage power
Shield	100% aluminum/polyester tape foil in 24 AWG 7-strand tinned copper drain
Performance	Assuming 600 Ω source impedance: Line level balanced audio 230 feet
Jacket	Polyvinyl chloride Colors: Gray Wall thickness: 0.020" \| 0.51mm Diameter: 0.202" \| 5.13mm
Final Outside Diameter (inches)	0.202
