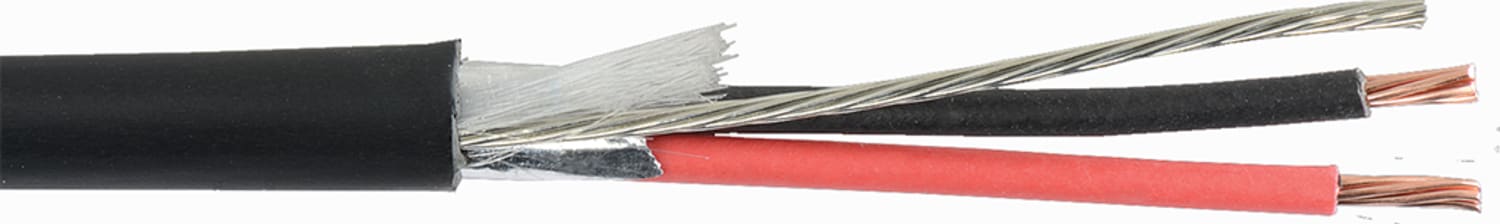

Liberty 22-2C-PSH-WHT-500 - White Audio 22 AWG 1 Pair Shielded Plenum

Name: Liberty 22-2C-PSH-WHT-500 - White Audio 22 AWG 1 Pair Shielded Plenum
Brand: Liberty
SKU: Liberty22-2C-PSH-WHT-500
Price: 117.72 USD
Availability: InStock

0 reviews | UPC: 601446008829 | Model: Liberty 22-2C-PSH-WHT-500

Compare

White Audio and Control 22 AWG 1 Pair Shielded Plenum

White Audio and control 22 AWG 1 pair shielded plenum
7-strand annealed bare copper conductors
Plenum rated PVC alloy insulation
Twisted, shielded with drain out
Plenum rated PVC alloy jacket
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Applications

Line Level, Microphone level Audio runs under 100 feet
Balanced and unbalanced Audio formats
Infrared (IR), RS-232C signaling

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $133.42

See Price

Request Quote

Recommended for you

Liberty 22-2C-PSH-WHT-500 - White Audio 22 AWG 1 Pair Shielded Plenum

2 conductor 22 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

General Specification
Conductor	18 AWG 7-strand annealed bare copper conductors Diameter: 0.029" \| 0.73mm
Electrical	DC resistance: 16.4 Ω / 1000’ \| 53.79 Ω/KM Mutual capacitance: 39.7 pF/FT \| 130.22 pF/M Impedance: 47 Ω Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 3.75A@25°C
Insulation	Plenum rated polyvinyl chloride Wall thickness: 0.008" \| 0.20mm Diameter: 0.044" \| 1.13mm
Regulatory	NEC: CMR 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Black, Red
Packages	Reel: 1000’ \| 305M Weight: 13 Lbs/1000’ \| 20 Kg/KM
Assembly	2 conductors twisted Lay length: 3.0" \| 80mm 4.0 twists per foot \| 12.5 twists per meter
Installation	Pull Tension: 11 Lbs \| 49 N Bend radius: 1.18" \| 30mm unloaded Bend radius: 2.36" \| 60mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F \| 0°C ambient temperature
Construct	Ripcord under jacket
Applications	Plenum line level balanced audio Plenum security and low voltage power
Shield	100% aluminum/polyester tape foil out 24 AWG 7-strand tinned copper drain
Performance	Assuming 600 Ω source impedance: Line level balanced audio 130 feet
Jacket	Plenum rated polyvinyl chloride Colors: Natural White Wall thickness: 0.014" \| 0.36mm Diameter: 0.118" \| 3.00mm
Final Outside Diameter (inches)	0.118
