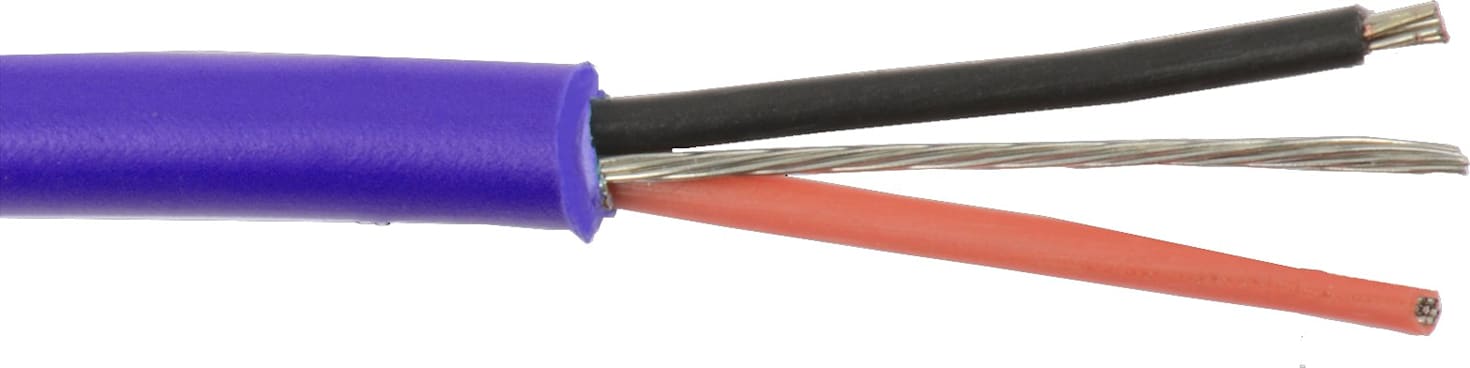

Liberty 22-1P-CMP-EZ-VIO-500 Shielded Plenum Cable

Name: Liberty 22-1P-CMP-EZ-VIO-500 Shielded Plenum Cable
Brand: Liberty
SKU: Liberty22-1P-CMP-EZ-VIO-500
Price: 318.60 USD
Availability: InStock

0 reviews | Model: Liberty 22-1P-CMP-EZ-VIO-500

Compare

Violet High-Performance EZ-Strip Broadcast Audio 22 AWG 1 Pair Shielded Plenum Cable

7-strand annealed tinned copper conductors
Cellular fluoropolymer dielectric insulation
Tightly twisted and shielded
Semi-pressure extruded plenum PVC jacket
Low capacitance broadcast audio
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Applications

Line level, microphone audio
Balanced and unbalanced audio formats
Infrared (IR), RS-232C signaling
Class 2 and Class 3 low voltage power
Instrumentation and control

View Product Details

List Price: $354.00

In Stock:

View Payment Options

Recommended for you

General Specifications
Conductor	22 AWG 7-strand tinned annealed copper conductors Diameter: 0.030" \| 0.76mm
Electrical	DC resistance: 16.88 Ω / 1000’ \| 55.36 Ω/KM Mutual capacitance: 15.5 pF/FT \| 50.84 pF/M Impedance: 65 Ω Velocity of Propagation: 76% Voltage rating: 300V Maximum current: 2.8A@25°C
Insulation	Foam fluorinated ethylene propylene Wall thickness: 0.010" \| 0.25mm Diameter: 0.050" \| 1.27mm
Regulatory	NEC: CMP 75°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Black, Red
Packages	Reel: 1000’ \| 305M Weight: 14 Lbs/1000’ \| 21 Kg/KM
Assembly	2 conductors twisted Pair lay length: 2.0" \| 51.0mm 6.0 twists per foot \| 19.6 twists per meter
Installation	Pull Tension: 14 Lbs \| 62 N Bend radius: 1.31" \| 34mm unloaded Bend radius: 2.62" \| 68mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F \| 0°C ambient temperature
Construct	N/A
Applications	Plenum broadcast quality line level balanced audio Plenum low voltage control and RS-232C signaling
Shield	100% aluminum/polyester tape foil in 24 AWG 7-strand tinned copper drain
Performance	Assuming 600 Ω source impedance: Line level balanced audio 450 feet
Jacket	Pressure extruded plenum rated polyvinyl chloride Colors: Black, Blue, Brown, Green, Cool Gray, Orange, Red, Violet, Tan, White, Yellow Wall thickness: 0.015" \| 0.38mm Diameter: 0.131" \| 3.33mm
Final Outside Diameter (inches)	0.131
