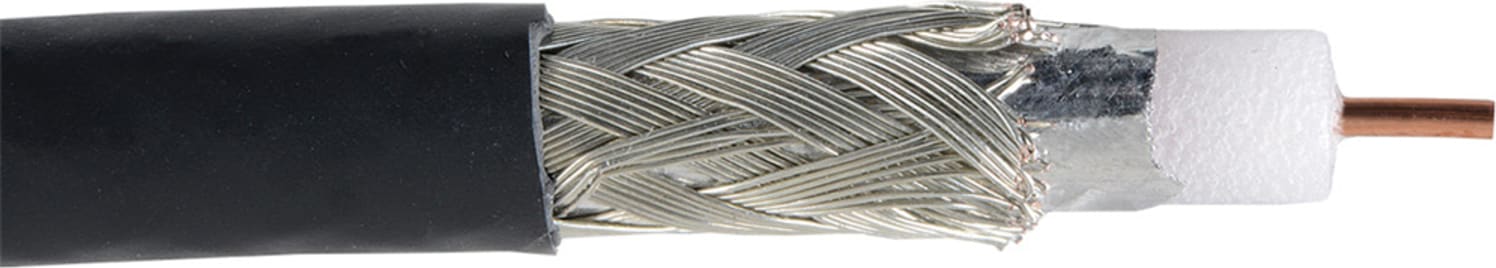

Liberty 20-CMP-VID-BLK-500 - Black Serial Digital Plenum Coaxial Cable Reel

Name: Liberty 20-CMP-VID-BLK-500 - Black Serial Digital Plenum Coaxial Cable Reel
Brand: Liberty
SKU: Liberty20-CMP-VID-BLK-500
Price: 1122.18 USD
Availability: InStock

0 reviews | Model: Liberty 20-CMP-VID-BLK-500

Compare

Black Serial Digital RG59 Dual Shield 4.5 GHz Plenum Coaxial Cable

Black Serial digital RG59 dual shield 4.5 GHz plenum coaxial cable
20 AWG solid annealed bare copper conductor
Gas-injected cellular fluoropolymer dielectric
100% coverage aluminum/poly/aluminum foil inner shield
95% coverage tinned copper braid shield
Plenum rated PVC jacket
4.5 GHz sweep, very low loss, excellent SRL
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Applications

SMPTE serial digital video, AES3id digital audio
S/PDIF digital audio, subwoofer audio
All base band video and unbalanced analog audio
RF modulated signals, CATV, DBS, MATV

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $1,246.86

See Price

Request Quote

Recommended for you

Liberty 20-CMP-VID-BLK-500 - Black Serial Digital Plenum Coaxial Cable Reel

Black Serial Digital RG59 Dual Shield 4.5 GHz Plenum Coaxial Cable Reel 20 AWG solid core dual shielded RG59 serial digital coaxial cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820

General Specifications
Conductor	20 AWG Solid annealed bare copper conductors Diameter: 0.032" \| 0.81mm
Electrical	Conductor DCR: 10.34 Ω / 1000’ \| 33.92 Ω/KM Shield DCR: 2.90 Ω / 1000’ \| 9.51 Ω/KM Capacitance: 16.1 pF/FT \| 52.81 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 84% Voltage rating: 300V SRL 1-450 MHz: -23dB SRL 451-2400 MHz: -15dB
Insulation	Foam fluorinated ethylene propylene Wall thickness: 0.052" \| 1.31mm Diameter: 0.135" \| 3.43mm
Regulatory	NEC: CMP 60°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Natural
Packages	Reel: 1000’ \| 305M Weight: 34 Lbs/1000’ \| 51 Kg/KM
Assembly	N/A
Installation	Pull Tension: 52 Lbs \| 231 N Bend radius: 2.07" \| 53mm unloaded Bend radius: 4.14" \| 106mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F \| 0°C ambient temperature
Construct	N/A
Applications	Plenum Serial Digital Video (SMPTE) Plenum CATV and DBS modulated video Plenum baseband video signals Plenum digital audio unbalanced formats
Shield	100% aluminum/poly/aluminum tape 95% 16x7/34 AWG tinned copper braid shield
Performance	3G HDSDI to 200 feet CATV to 96 feet CCTV to 426 feet S/PDIF digital audio 400 feet
Jacket	Plenum rated polyvinyl chloride Colors: Black, Blue, Green, Red, Violet, White, Yellow Wall thickness: 0.016" \| 0.41mm Diameter: 0.207" \| 5.26m
Final Outside Diameter (inches)	0.207
