Configuration for challenging environments

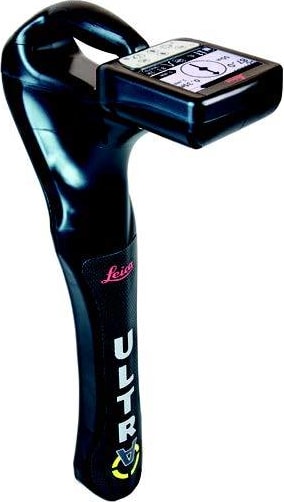

Optimize the instrument to overcome the most challenging and complex site conditions. The Leica ULTRA System locator can be configured for different project environments and has more than 100 programmable operating frequencies available. Program modes can adapt the onboard circuitry to repeatably deliver improved accuracy results.
Best frequencies in congested environments
When working in congested environments, the Leica ULTRA System incorporates Ambient Interference Measurement (AIM), which digitally analyses the surrounding area for noise and recommends the best frequencies for accurate results.
Locate utilities when access is obstructed
There will always be an occasion when a buried utility runs close to or underneath an obstruction. With Offset Measuring, the Leica ULTRA System can locate the target line when direct access from above is not possible. The unique function allows the software to calculate the horizontal offset (displayed to user) and the function uses the available data to estimate the horizontal and vertical (depth) distance.
Transmitter to receiver link
Control the transmitter directly from the receiver with Bluetooth communication link between the Leica ULTRA System receiver and the transmitter. Save time and improve efficiency by simply controlling the transmitter from the receiver, no more walking backwards and forwards to change settings.
Clear High-contrast and backlit lay LCD display
LCD display is visible in all conditions, including direct sunlight. A large display ensures maximum confidence in the displayed information with compass function, guidance arrows, signal strength and unique sonde compass guidance ensuring maximum confidence at all times.
GNSS & GIS integration
A unique feature to the Leica ULTRA System allows the user to connect to two utilities at the same time and remotely switch between dedicated assigned frequencies saving time required to locate multiple services.
Dual-output connectivity
Integrate Leica ULTRA system to GNSS RTK corrections with bespoke mapping software to give a true one-man data capture solution with real-time back to base functionality for near instant mapping capabilities.
12-watt transmitter output
Class leading 12-watt transmitter output (Advanced model) enhances signal transmission along large, direct buried utilities.
Superior battery life
Using Alkaline batteries - transmitter 100hrs, receiver - 30hrs.
