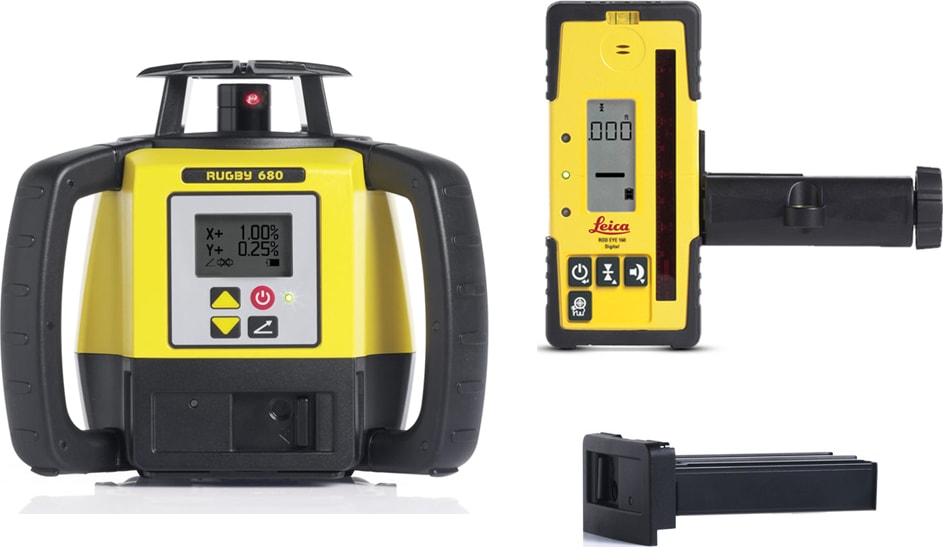

Leica Rugby 680 - Rotating Laser, Rod Eye 160 Receiver, Lithium-ion Batteries (Catalog 6006010)



• Includes Rugby 680 semi-automatic dual grade laser, Rod Eye 160 digital receiver, lithium-ion batteries, charger, carrying case, and manual.
• Catalog number 6006010
• 10 revolutions per second
• Self-leveling horizonal, dial-in grade in dual axis laser

Bring simplicity to construction applications with the Leica Rugby 680 and 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 and 670 construction lasers are easy to use and effective in all levelling and grading tasks.


Slopes done easily

Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 and 670 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.

Accurate performance throughout the day

Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 and 670 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.

Best value for money

• Great value for money with PROTECT by Leica Geosystems service offering. It includes Lifetime Manufacturer's Warranty and the three year No Cost* period.
• Packages with the long-lasting Li-Ion rechargeable battery allowing up to 40 hours of operation per charge.
• IP 67 protection standard assuring reliable performance even under harsh jobsite environment.

Site Preparation

Level to grade with dozers, graders and excavators.

Grade checking

Easy and reliable grade checks.

Slopes for ramps and driveways

Dial-in slopes in single and dual axis.

Formwork verticality

Align parallel to the reference and check plumb of formwork.

Set-out walls

Align two points and mark position of wall or formwork.

Concrete Pouring

Set concrete forms and check concrete during the pour.

Formwork levelling

Transfer reference height and level formwork.

Level ceiling

Check and level suspended ceiling hangers.

Set-out

Set-out and mark position of walls.

Rod Eye 160 Digital - Professional receiver


Digital readout - the large numbers are clear and easy to read so you can stay on grade. Capture function allows the user to store and display a measurement. Anti-strobe protection detects and ignores the flash from strong strobes on the job.


• Professional receiver with digital readout, half mm accuracy and strobe rejection
• Capture digital readout for convenient height readings
