Leica Rugby 670 with Rod Eye-Basic and Alkaline Battery Pack

Name: Leica Rugby 670 with Rod Eye-Basic and Alkaline Battery Pack
Brand: Leica
SKU: LeicaRugby 670 - 6008622
Price: 1350.00 USD
Availability: InStock

0 reviews | Catalog: 6008622 | UPC: 7640110693476 | Model: Leica Rugby 670 - 6008622

Images (6)

Compare

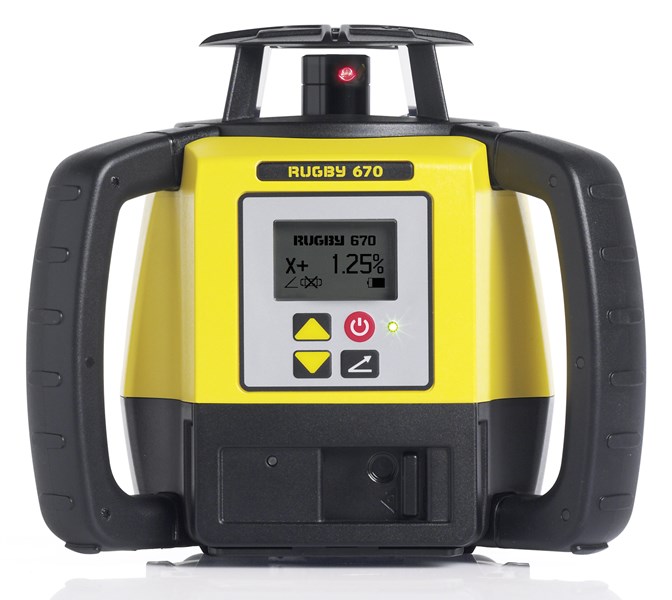

Rugby 670 with Rod Eye-Basic and Alkaline Battery Pack

Semi-automatic, single slope laser
Quick and convenient dial-in grade
Simple user interface, four-button menu and digital display
Unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
IP 67 protection standard rated

View Product Details

List Price: $1,350.00

In Stock:

View Payment Options

Recommended for you

Leica Rugby 670 with Rod Eye-Basic and Alkaline Battery Pack

Bring simplicity to construction applications with the Leica Rugby 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single slopes, Rugby 670 construction lasers are easy to use and effective in all leveling and grading tasks.

Best value for money

Great value for money with PROTECT by Leica Geosystems service offering. It includes Lifetime Manufacturer's Warranty and the three year No Cost period.
Packages with the long-lasting Li-Ion rechargeable battery allowing up to 40 hours of operation per charge.
IP 67 protection standard assuring reliable performance even under harsh jobsite environment.

Slopes done easily

Easily perform leveling and slope applications with the semi-automatic Leica Rugby 670 single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.

Accurate performance throughout the day

Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 670 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.

Technical Data	Rugby 670	Rugby 680	Rugby 870	Rugby 880
Functionality	Semi-automatic, self-levelling horizontal with dial-in, single axis	Semi-automatic, self-levelling horizontal with dial-in, dual axis	Fully automatic, self-levelling horizontal and grade, single axis	Fully automatic, self-levelling horizontal and grade, dual axis
RF remote capable (radius)			300 m (980 ft)
Grade range	±8% SG	±8% DG	±15% SG	±15% in either axis ±10% and ±3% in both axes
Range (diameter)	800 m (2600 ft) with RE Basic, 1100 m (3600 ft) with RE 140/160)		1300 m (4260 ft) with RE 140/160/180
Self-levelling accuracy*	±1.5 mm @ 30 m (±1 ⁄ 16 in @ 100 ft)
Self-levelling range	±5°		±6°
H.I. elevation alert	■
Bump alert	■
Rotation speeds	10 rps		5, 10 rps
Laser diode type / class	635 nm/Class 1		635 nm/Class 1
Battery life (alkaline / Li-Ion)**	60 hours / 40 hours @ 20°C		60 hours / 45 hours @ 20°C
Environmental standard	IP 67		IP68 / MIL Standard 810G
PROTECT service offering	Manufacturer's Warranty: Lifetime No Cost period: 3 years		Manufacturer's Warranty: Lifetime No Cost period: 5 years Knockdown warranty: 2 years

* Accuracy is defined at +25°C
** Battery life is dependent upon environmental conditions

Tech Specs

Test Equipment General Attributes
Unique Features	Rugby 670 with Rod Eye-Basic Alkaline Battery Pack
Warranty	3 YEARS
Safety Approval	CE
IP Rating	IP67
Product Weight	5.6 LBS
Power Supply Voltage	Battery Powered
Country of Origin	Switzerland

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

These all include the Rugby 670, but have different receivers and power supplies. The following is a brief overview of each: • Rugby 670 - part number 6008622 • Rugby 670, carrying case, Rod Eye-Basic receiver and bracket, alkaline battery pack • Rugby 670 - part number 6006003 • Rugby 670, carrying case, Rod Eye-140 Classic receiver and bracket, alkaline battery pack • Rugby 670 - part number 6006006 • Rugby 670, carrying case, Rod Eye-160 Digital receiver and bracket, A-600 Li-Ion battery pack, charger • Rugby 670 - part number 790375 • Rugby 670, carrying case, does NOT include battery tray
