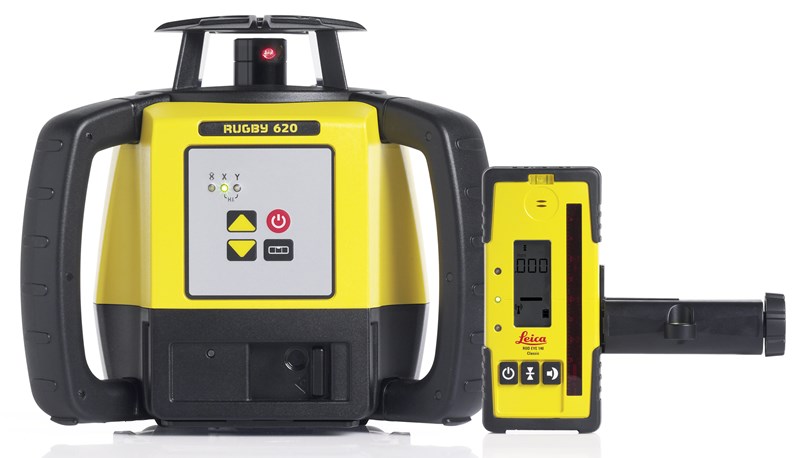

Leica Rugby 620 with Rod Eye-Basic and Alkaline Battery Pack
Where levelling stays in focus

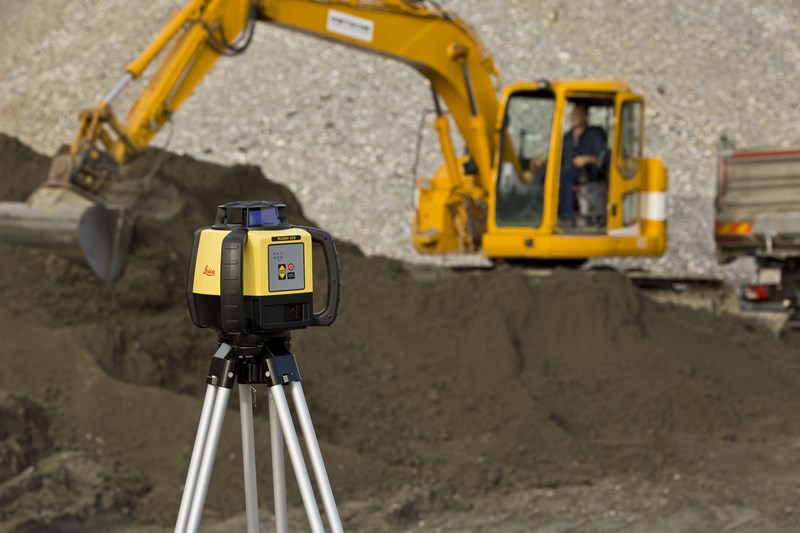

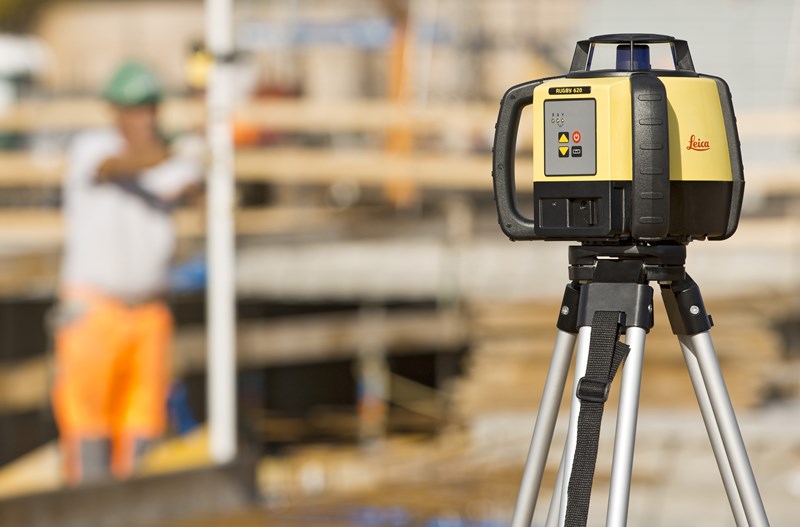

Increase your productivity in levelling applications with the Leica Rugby 620 construction laser. Designed for general contractors who mainly perform formwork and concrete applications, the Rugby 620 rotating laser level offers a professional but simple levelling solution with an outstanding price-to-quality-ratio. Forget about costly errors, rework or downtime thanks to the fully-automatic operation with the Leica Rod Eye receivers. Concrete pouring, formwork levelling, setting foundations and footings has never been more efficient.
Simple and quick slopes
The professional Rugby 620 laser level offers contractors application flexibility, allowing them to perform single slope applications using the manual grade control. Rugby 620 is a perfect laser tool for those contractors who occasionally need to do simple slope tasks like driveways, landscaping and parking areas. Depending on the type of the job, Rugby 620 offers operating range of 500 m with the Rod Eye Basic, and 600 m with the Rod Eye 140 and 160 digital receivers.
Tough as the jobsite
The Rugby 620 rotating laser brings ruggedness and reliability to a jobsite with its IP 67 water and dust protection. Moreover, it is covered by the PROTECT by Leica Geosystems service offering which includes Lifetime Manufacturer’s Warranty and three year No Cost* period, covering the repair or replacement of all defective parts including labour time, adjustment and calibration.
| Technical Data |
Rugby 610 |
Rugby 620 |
Rugby 640 |
| Functionality |
Self-leveling horizontal, single manual slope (with slope adapter) |
Self-leveling horizontal, with dual axis manual slope |
Self-leveling horizontal, vertical, 90° with dual axis manual slope |
| Range (diameter) with RE Basic |
500 m (1.650 ft) |
600 m (2.000 ft) |
500 m (1.650 ft) |
| Range (diameter) with RE 140/160 |
1.100 m (3600 ft) |
| Self-levelling accuracy |
±2.2 mm @ 30 m
(± 3 ⁄ 32 in @ 100 ft) |
±2.2 mm @ 30 m
(± 3 ⁄ 32 in @ 100 ft) |
±1.5 mm at 30 m
(± 1 ⁄ 16 in @ 100 ft) |
| Self-levelling range |
±5° |
| H.I. elevation alert |
■ |
■ |
■ |
| Rotation speeds |
10 rps |
10 rps |
0, 2, 5, 10 rps |
| Scanning modes |
|
|
10°, 45°, 90° |
| Remote control / radius |
|
|
RC400 / 100 m (328 ft) |
| Laser diode type / class |
635 nm / Class 1 |
635 nm / Class 1 |
635 nm / Class 2 |
| Dimensions (HWD) |
212 × 239 × 192 mm (8.4 × 9.4 × 7.6 in) |
| Weight with battery |
2.4 kg (5.2 lbs) |
2.6 kg (5.6 lbs) |
| Batteries (alkaline / rechargeable) |
Four D-cells / Li-Ion pack (A600) |
| Battery life (alkaline / rechargeable) |
60 hours / 40 hours @ 20°C (68°F) |
| Environmental standard |
IP 67 |
| Operating temperature range |
–10°C to +50°C
(+14°F to +122°F) |
–20°C to +50°C
(–4°F to +122°F) |
–20°C to +50°C
(–4°F to +122°F) |
| PROTECT service offering |
Manufacturer's Warranty: Lifetime
No Cost period: 3 years |
