Leica Rugby 420 DG with Rod Eye-160 & RF Remote Control
![Leica_Rugby_420_DG_tn]()
|

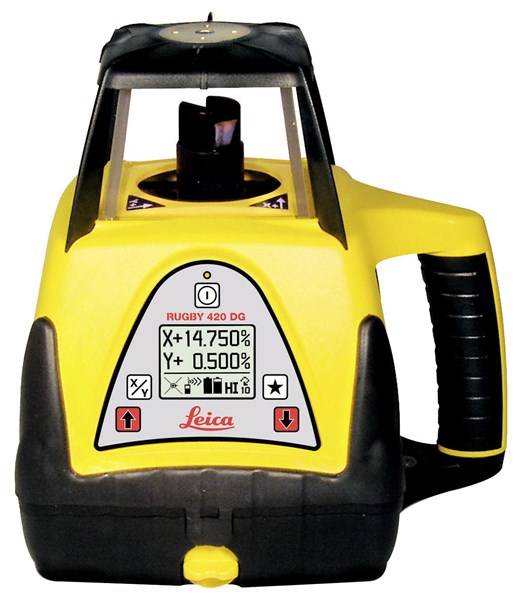

Leica Rugby 420 DG
- Building pads, parking lots and runways
- Precise depth control for sub-base and fine grade excavation

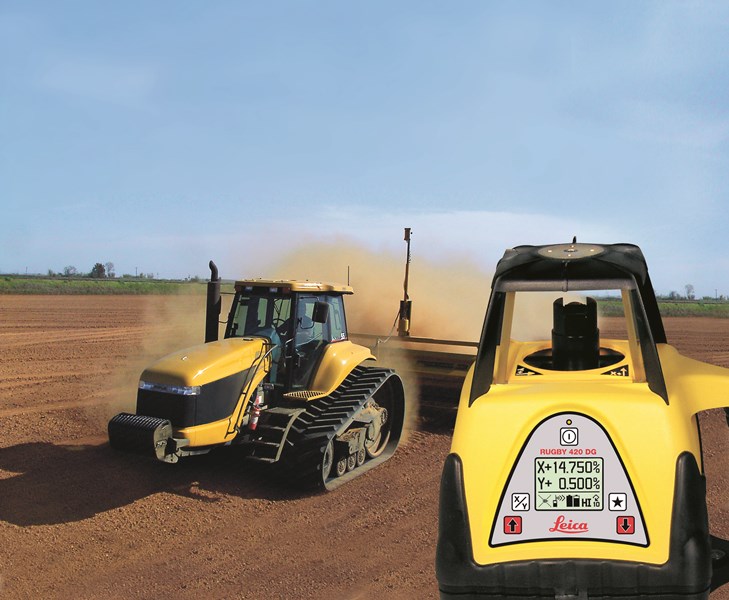

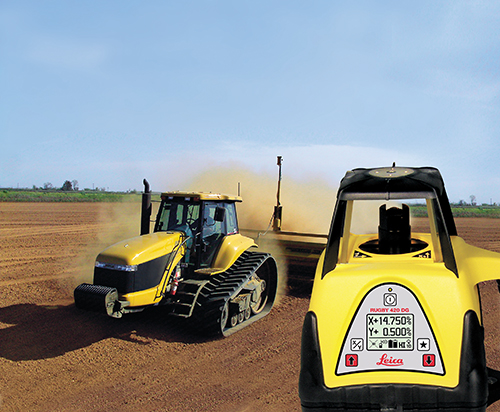

- Agricultural applications such as land leveling or tiling
- Concrete forming and framework
- Retention ponds and batters

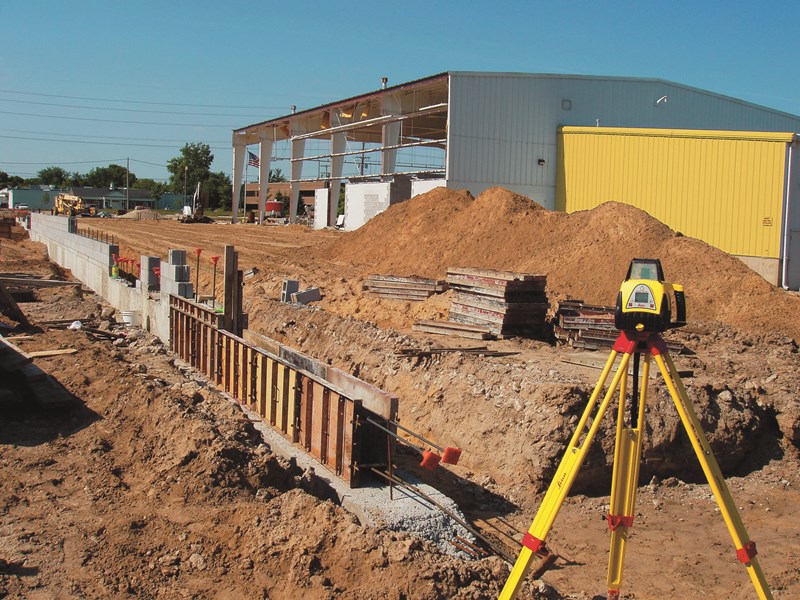

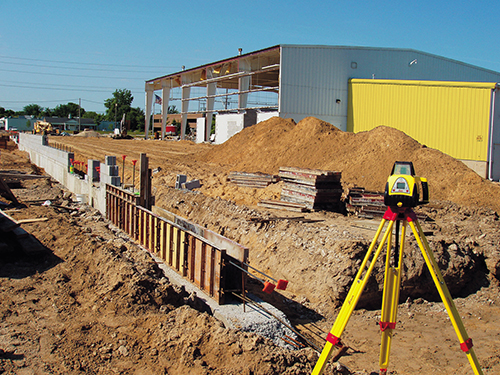

- Setting foundations and footings
|
When accuracy is the goal
The Leica Rugby 420 DG is designed for grading jobs of any size that require the most precise grade control. Ensuring the highest accuracy over long distances, the Leica Rugby 420 DG is perfectly suited for agriculture, machine control and general construction applications. Save on materials and labor with the most accurate grade lasers in the Leica portfolio. When accuracy is the goal, Leica Rugby makes the grade.
The toughest players on big fields
Work reliably and accurately under any weather and jobsite conditions with Leica Rugby 420 DG grade lasers. The high-impact composite housing including the rubber over mold, case aluminum base and enclosed head deliver maximum internal component protection and as a result, assure reliable performance throughout the day.
User-friendly features for precise grade control
The Leica Rugby 420 DG grade lasers offer a wide range of valuable and easy to use features for precise grade control, such as Axis Alignment for higher grade accuracy, Beam Masking for multiple laser usage and Elevation Alert to prevent elevation errors. All these and more can be conveniently accessed and controlled by a 5-button keypad. Save time and reduce communication errors from the field to the cab of the machine by using a long-range two way remote control together with Rugby 420 DG grade lasers. In the development of the Leica Rugby 420 DG, care was taken to ensure absolute compatibility with the widest range of machine control solutions.
| Leica Rugby Series Features by Model |
Leica Rugby 320 SG |
Leica Rugby 410 DG |
Leica Rugby 420 DG |
| Simple to use 5-Button Keypad |
✔ |
✔ |
✔ |
| Real-Time Grade Matching |
✔ |
✔ |
✔ |
| Superior Dual Battery Concept |
✔ |
✔ |
✔ |
| Scope Mount in Both Axes |
✔ |
✔ |
✔ |
| Laser Beam Visible (Red) |
✔ |
- |
✔ |
| Laser Beam Invisible (IR) |
- |
✔ |
- |
| Grade Capability X (or Y) Axis -5 to +25% |
✔ |
✔ |
✔ |
| Grade Capability in Both Axes -5 to +15% |
- |
✔ |
✔ |
| Long Range Remote Control |
- |
✔ |
✔ |
| Axis Alignment |
- |
✔ |
✔ |
| Laser Plane Stabilization |
- |
- |
✔ |
| Enhanced Operating Range |
- |
- |
✔ |
| Leica Rugby Series Specifications |
Leica Rugby 320 SG |
Leica Rugby 410 DG |
Leica Rugby 420 DG |
| Operating Range (Diameter) |
900m* |
800m* |
1100m* |
| Self-Leveling Accuracy |
±1.6mm per 30m** |
| Self-Leveling Range |
±5° |
| Grade Capability |
-5 to +25% |
-5 to +25% in either axis
(-5 to +15% in both axes) |
-5 to +25% in either axis
(-5 to +15% in both axes) |
| Grade Resolution |
0.001% |
| Rotating Speeds |
5, 10, 15, 20RPS |
| Laser Diode |
635nm visible red laser |
780nm invisible (IR) |
635nm visible red laser |
| Size (HxWxD) |
265x260x200mm |
| Weight |
5kg without batteries |
| Operating Temperature |
-20° to +50°C |
| Battery Type |
alkaline or NiMH |
| Battery Life |
up to 130hours with alkaline; up to 100hours with rechargeable*** |
| Environmental |
watertight to IPX-7 standard |
| Warranty |
2 years factory warranty / additional 3 years on request |
*Tested with Leica receivers (CAB Sensor, MLS700, Rod-Eye Digital/Plus) / **Accuracy is defined at +25°C / ***Battery life is dependent upon environmental conditions
