Leica LINO P5 - 5 Point Laser

Name: Leica LINO P5 - 5 Point Laser
Brand: Leica
SKU: LeicaLINO P5
Price: 260.00 USD
Availability: InStock

0 reviews | Catalog: 864427 | UPC: 7640110692622 | Model: Leica LINO P5

Images (5) | Videos (1)

Compare

Lino P5-1 self-levelling 5-point laser, red beam Includes: Lino P5-1, Quick start guide, rugged case, 3 AA batteries, laser target, TWIST 360 magnetic multi functional adapter, safety instructions, calibration certificate, warranty card.

Classic five point layout tool
Simple to operate
Just one button for all Applications
Self-leveling
The instrument is quick and effortless to set up. Minor angular misalignments within ± 4° are automatically compensated for by the instrument. If it is further out of level, the instrument will not project the point. Thus cutting out the errors.
Robust housing
The Leica Lino is dust and splash-proof to IP54 and can be locked to protect the instrument during transport

View Product Details

List Price: $260.00

In Stock:

View Payment Options

Discontinued

Accessories

Choose a Category

Batteries and Chargers for the Leica LINO P5

Leica 806679 Quick charger incl.4x AA NiMH rechargeable batteries

Catalog: 806679

(0)

Available to Order

Check Lead Time

$98.50

Add to Cart

Leica GLB10G Green lens glasses for improved visibility of the laser dot in bright...

Catalog: 772796

(0)

Available to Order

Check Lead Time

$27.50

Add to Cart

Leica GLB30 3 in 1: Laser visibility glasses, safety glasses, sun glasses

Catalog: 780117

(0)

Available to Order

Check Lead Time

$56.00

Add to Cart

Leica TRI100 TRI 100 Tripod with tilting head

Catalog: 757938

(0)

1 Left!

In Stock! $136.00

Add to Cart

Leica TRI70 TRI 70 Tripod (flat top tripod) LINO units 40-120cm (15.75" to 47") for...

Catalog: 794963

(0)

Available to Order

Check Lead Time

$111.00

Add to Cart

Leica LINO P5 - 5 Point Laser

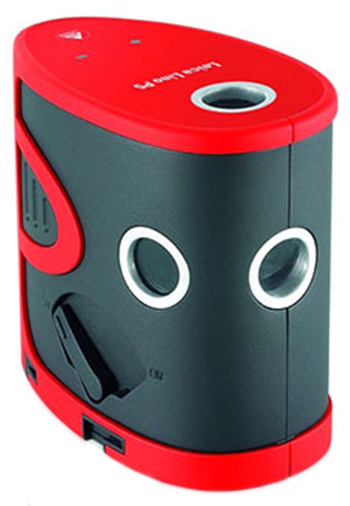

The Leica Lino P5 projects five laser beams, which are exactly at right angles to one another, and is the perfect tool for 90˚ layouts and vertical point transfer.

LINO P5

Five point laser
Self leveling, one button operation
Quick and easy to use
Dust and splash proof to IP54
Includes target plate, magnetic multi-function adapter and pouch

The P5 self leveling pendulum lets you know your tool is out of level by disabling the laser dot. The dot appears once level. Lock the pendulum to set out angled points and to protect the mechanism when you aren't using it.

The lasers and pendulum are housed in a rugged, job site ready body. It is IP54 rated dust-proof and splash protected.

The P5 includes a versatile multi-function bracket with a magnetic wall mount and 360˚ swivel capability.

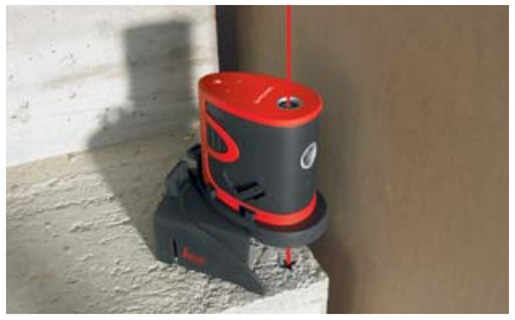

Plumbing The Leica Lino P3 and P5 are excellent for plumbing up and down. The laser beam is projected above and below the instrument, allowing you to transfer reference points quickly and efficiently, e.g. from floor to ceiling.	Plumbing ×

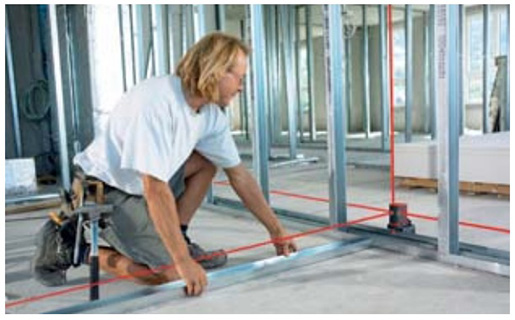

Setting out right angles The Leica Lino P5 has five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient.	Setting out right angles ×

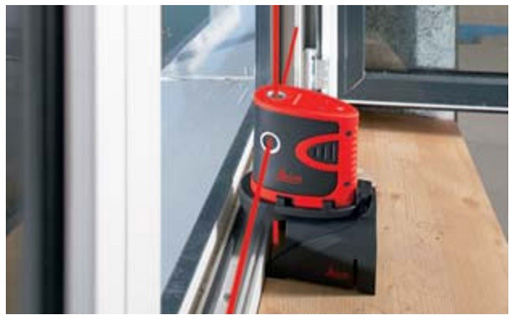

Aligning In addition to the plumb beams, the Leica Lino P5 projects three points at exactly the same height. Aligning windows, partition walls and other building elements becomes quick and easy.	Aligning ×

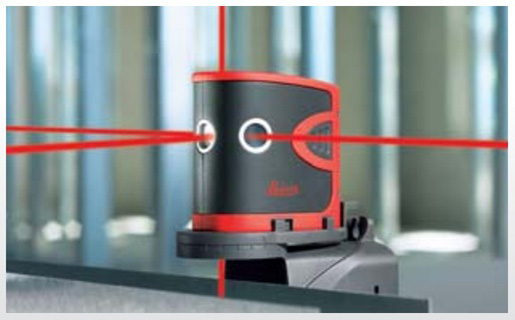

Transferring measured points Turn the rotatable adapter to transfer reference points in no time at all across the room from one wall to another. Leave your spirit level and string line in your toolbox!	Transferring measured points ×

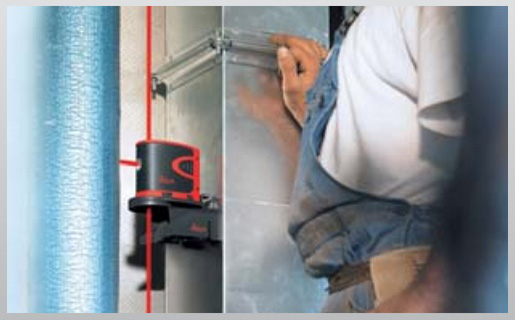

Expanded range of applications The adapter supplied with the Leica Lino P3 and P5 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets.	Expanded range of applications ×

Technical Data	Lino P3	Lino P5	Lino L2	Lino L2+	Lino L2G+	Lino L2P5	Lino L360	Lino L4P1
Range	Up to 50 FT*				Up to 100 FT*	Up to 50 FT*	Up to 100 FT*	Up to 50 FT*
Levelling accuracy @ 5 m	1⁄16"		1⁄16"	1⁄16"				1⁄16"
Self-levelling range			4° ±0.5°				3.5° ±0.5°	± 3°
Accuracy of plumb point @ 5 m	1⁄16"		-			1⁄16"	-	1⁄16"
Accuracy of horizontal line @ 5 m	-		1⁄16"					1⁄16"
Vertical accuracy @ 3 m line length	-		1⁄16"		1⁄16"	1⁄16"		1⁄16"
Beam direction	Up, down, forward	Up, down, forward, right, left	Vertical, horizontal	Vertical, horizontal	Vertical, horizontal, cross lines	Vertical, horizontal, up, down, right, left	Vertical, 360°, horizontal	3 vertical and 1 horizontal lines, 1 plumb down
Laser type	635 nm / Class 2				515 – 520 nm / Class 2	635 nm / Class 2		635 nm / Class 2
Protection class	IP 54						IP 65	IP 54
Battery	Type AA 3×1,5V			Type AA 4×1,5V			NiMH battery pack (rechargeable)	rechargeable Li-Ion batteries (and Alkaline batteries 4xAA, 1.5 V)
Weight without batteries	11 oz	11 oz	11 oz	13 oz			36 oz	41 oz
PROTECT service offering	Manufacturer's Warranty: Lifetime No Cost period: 2 plus 1 years with registration

* Depending on lighting conditions

Specifications
Range	up to 50 ft depending on lighting conditions
Levelling accuracy @ 16 ft	± 1/16"
Self-levelling range	4° ± 0.5°
Accuracy of plumb point @ 16 ft	± 1/16"
Number of laser points	5
Beam direction	up, down, forward, right, left
Laser type	635 nm, laser class II
Batteries	type AA 3 × 1.5 V
Protection class	IP54 splash water / dust proof
Operating temperature	14°F to 104°F
Storage temperature	-13°F to 158°F
Dimensions (H × D × W)	3.9 x 4.2 x 2.3 in
Weight without batteries	11 oz
Tripod thread	1/4" -20
EAN/UPC	7640110692622
