General Specifications |
Model |

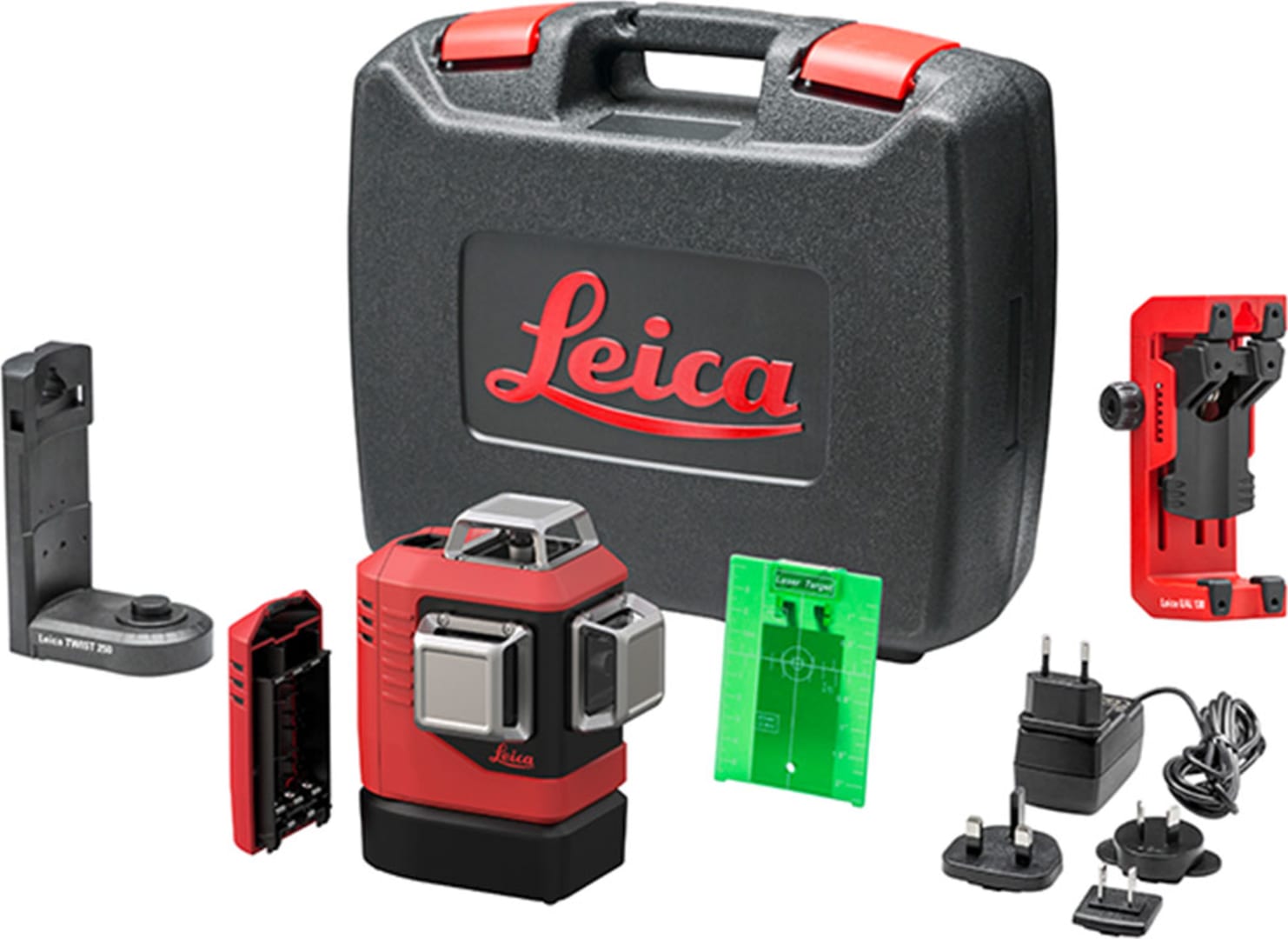

Lino L6Gs |
Lino L6G |
Beam horizontal |
360° |
Beam vertical |
2 x 360° |
Intersection points |
up, down, right, left, front, back (90° / 180°) |
Range / diameter* |
35 m / 70 m (115 ft / 230 ft) |
Range / diameter* with Leica RGR 200 receiver |
70 m / 140 m (230 ft / 460 ft) |
Levelling accuracy |
± 0.2 mm/m (± 0.002 in/ft) |
Horizontal- and Vertical line accuracy |
± 0.3 mm/m (± 0.004 in/ft) |
Intersection point accuracy |
± 0.2 mm/m (± 0.002 in/ft) |
Self-levelling range |
± 4° |
Self-levelling time |
< 3 sec |
Fine adjustment |
± 10° around vertical intersection point |
Out-of-level warning |
yes – blink lines every 5 s |
Levelling |
pendulum (lockable) |
Laser |
525 nm / class 2 (acc. to IEC 60825-1) |
Protection class |
IP54 (dust and splash water) |
Battery type |
Lino Li-Ion battery pack 5200mAh / 18.7Wh or 3xAA Alkaline |
Laser line intensity (selectable) |
100 %, 75 %, 50 % |
Operating time with Li-Ion |
up to 11 h (3 beam, 50 % power) |
Operating time with Alkaline |
up to 8 h (3 beam, 50 % power) |
Dimensions |
124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in) |
Weight |
781 g (1.71 lbs) |
Operation temperature |
-10 to +50° C (14 to 122° F) |
Storage temperature |
-25 to +70° C (-13 to +158° F) |
Laser line width @ 5 m distance (16.4 ft) |
< 2 mm (< 0.08 in) |
Tripod thread |
1/4 in (5/8 in with adapter) |
Pulse power for receiver |
yes |
* Depending on lighting conditions |
