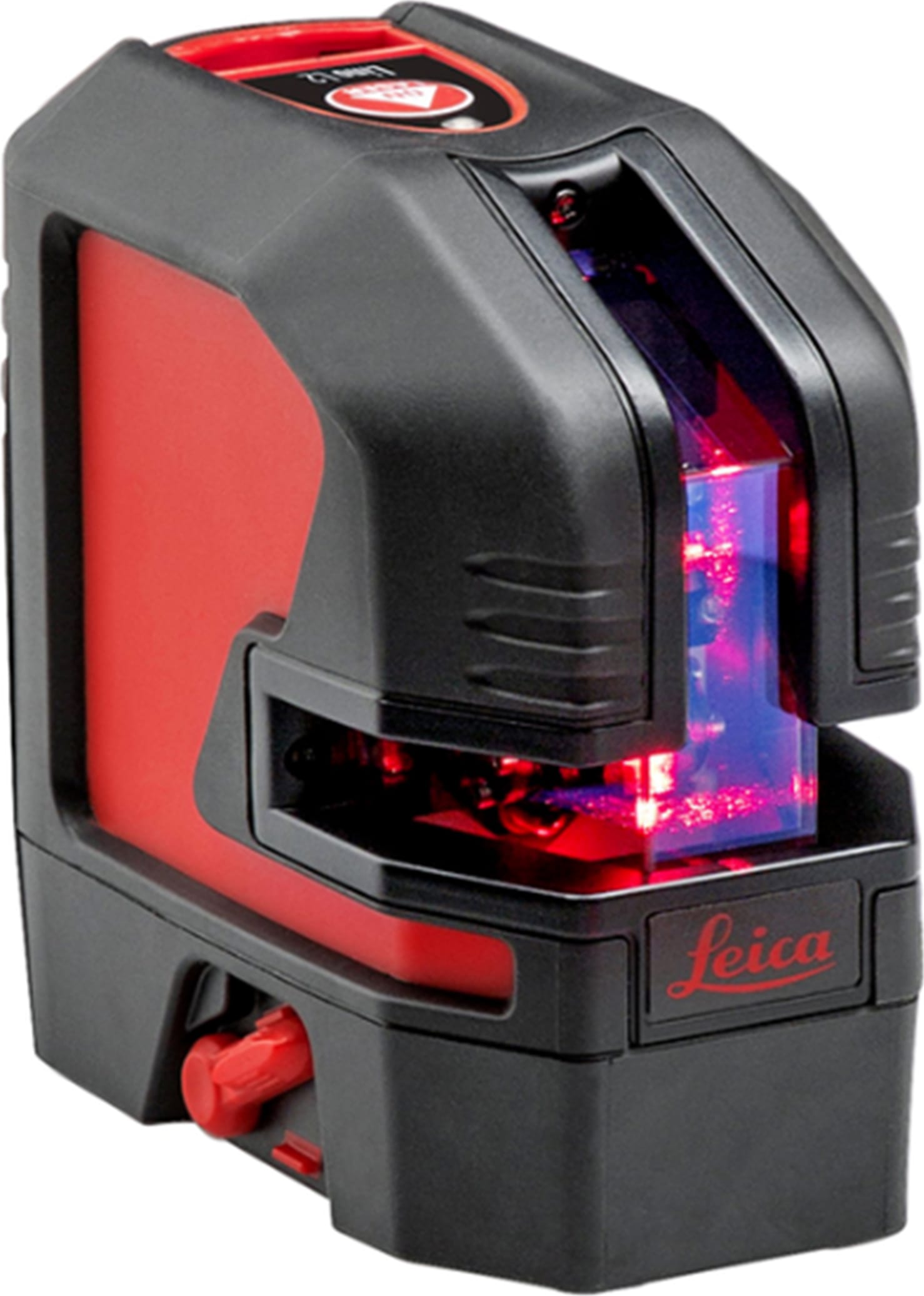

Leica LINO L2P5 Crossline and 5 Point Laser

Name: Leica LINO L2P5 Crossline and 5 Point Laser
Brand: Leica
SKU: LeicaLINO L2P5
Price: 435.00 USD
Availability: InStock

0 reviews | Catalog: 777069 | UPC: 7640110692639 | Model: Leica LINO L2P5

Images (10) | Videos (1)

Compare

Lino L2P5-1 self-levelling all-in-one cross-line and point laser, red beam Includes: Lino L2P5-1, Quick start guide, rugged Case, Li-Ion battery pack incl. charger and plugs, alkaline battery tray, laser target, TWIST 360 magnetic multi functional adapter, safety instructions, calibration certificate, warranty card.

One tool for any leveling or point-transfer job
A level, chalk line and plumb bob all-in-one
180° horizontal and vertical lines
Four laser points all calibrated to perfect 90° angles
IP54 rated dust-proof and splash protected

View Product Details

Your Price: $435.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Leica LINO L2P5 Lino L2P5-1 self-levelling all-in-one cross-line and point laser, red beam ...	Leica L2 LINO L2-1 self-levelling cross-line laser, red beam Includes: LINO L2-1, Quick st ...	Leica L2/D210 KIT Interior Package D210, Lino L2 w/ TRI70	Leica LINO L4P1 Lino L4P1 self-levelling multi line laser, manual fine adjustment, red bea ...	Leica LINO L2s LINO L2s-1 self-levelling cross-line laser, red beam Includes: LINO L2s-1, ...	Leica LINO L2P5G Lino L2P5G-1 self-levelling all-in-one cross-line and point laser, green ...	Leica LINO L2P5-1 Lino L2P5-1 self-levelling all-in-one cross-line and point laser, red be ...	Leica LINO P5-1 Lino P5-1 self-levelling 5-point laser, red beam Includes: Lino P5-1, Quic ...	Leica LINO L2G-1 LINO L2G-1 self-levelling cross-line laser, green beam Includes: LINO L2G ...	Leica LINO L6R Lino L6R-1 self-levelling 3x360 Degrees Laser, red beam, Li-Ion Includes: L ...	Leica LINO L6Rs Lino L6Rs-1 self-levelling 3x360 Degrees Laser, red beam, Alkaline Include ...	Leica LINO L6Gs Lino L6Gs-1 self-levelling 3x360 Degrees Laser, green beam, Li-Ion battery ...	Leica LINO L6G Lino L6G-1 self-levelling 3x360 Degrees Laser, green beam, Li-Ion Includes: ...	Leica LINO L2Gs LINO L2Gs-1 self-levelling cross-line laser, green beam Includes: LINO L2G ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Leica LINO L2P5 Accessories

In Stock!

Add to Cart

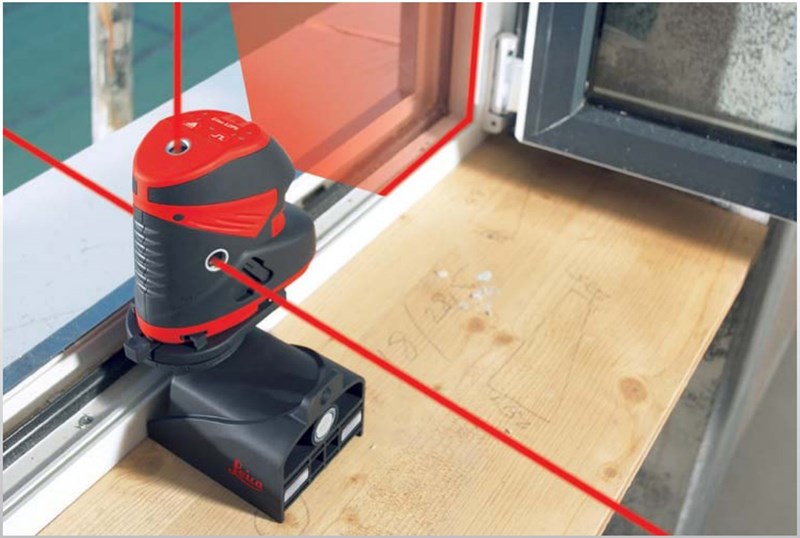

Leica LINO L2P5 Crossline and 5 Point Laser

LINO L2P5

All in one cross line and point laser tool
The perfect tool for 90˚ layouts
180° fan angle lets you put it in a corner to layout the whole room

The Leica Lino L2P5 combines all the advantages of Leica Lino point and line lasers in one instrument. The five laser points, precisely aligned at right angles to one another, provide you with the perfect way to plumb, set out and transfer measured points. The laser cross lines make alignment so simple. The proven Leica optics and large emergence aperture of the laser project particularly long lines, an advantage warmly welcomed by users across the full Lino range.

With the Leica Lino L2P5 you are well equipped for any alignment or levelling task

Technical Data	Lino P3	Lino P5	Lino L2	Lino L2+	Lino L2G+	Lino L2P5	Lino L360	Lino L4P1
Range	Up to 50 FT*				Up to 100 FT*	Up to 50 FT*	Up to 100 FT*	Up to 50 FT*
Levelling accuracy @ 5 m	1⁄16"		1⁄16"	1⁄16"				1⁄16"
Self-levelling range			4° ±0.5°				3.5° ±0.5°	± 3°
Accuracy of plumb point @ 5 m	1⁄16"		-			1⁄16"	-	1⁄16"
Accuracy of horizontal line @ 5 m	-		1⁄16"					1⁄16"
Vertical accuracy @ 3 m line length	-		1⁄16"		1⁄16"	1⁄16"		1⁄16"
Beam direction	Up, down, forward	Up, down, forward, right, left	Vertical, horizontal	Vertical, horizontal	Vertical, horizontal, cross lines	Vertical, horizontal, up, down, right, left	Vertical, 360°, horizontal	3 vertical and 1 horizontal lines, 1 plumb down
Laser type	635 nm / Class 2				515 – 520 nm / Class 2	635 nm / Class 2		635 nm / Class 2
Protection class	IP 54						IP 65	IP 54
Battery	Type AA 3×1,5V			Type AA 4×1,5V			NiMH battery pack (rechargeable)	rechargeable Li-Ion batteries (and Alkaline batteries 4xAA, 1.5 V)
Weight without batteries	11 oz	11 oz	11 oz	13 oz			36 oz	41 oz
PROTECT service offering	Manufacturer's Warranty: Lifetime No Cost period: 2 plus 1 years with registration

* Depending on lighting conditions

Specifications
Range	up to 50 ft depending on lighting conditions
Range with detector	> 100 ft
Levelling accuracy @ 5 m	± 1/16"
Self-levelling range	4° ± 0.5°
Accuracy of plumb point @ 16 ft	± 1/16"
Accuracy of horizontal line @ 16 ft	± 1/16"
Vertical accuracy @ 10 ft line length	± 1/32"
Number of laser points	4
Number of laser lines	2
Beam direction	vertical, horizontal, up, down, right, left
Laser type	635 nm, laser class II
Batteries	type AA 4 × 1.5 V
Protection class splash water/ dust proof	IP54 splash water/ dust proof
Operating temperature	14°F to 104°F
Storage temperature	-13°F to 158°F
Dimensions (H × D × W)	4.6 x 5.1 x 3.0 in
Weight without batteries	13 oz
Tripod thread	¼"- 20
EAN/UPC	7640110692639
