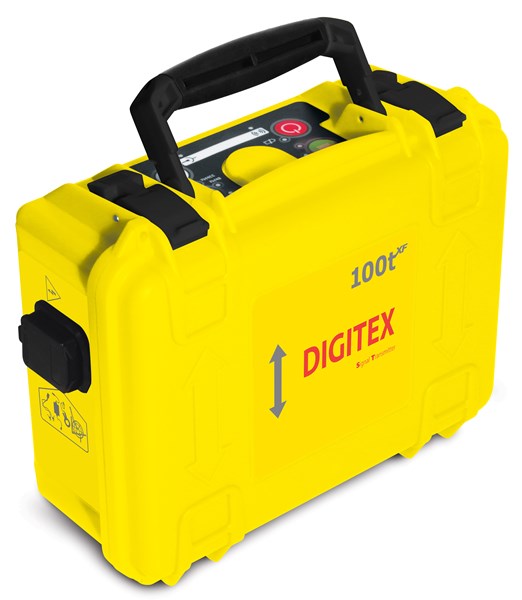

Leica DigiTex 100t XF (Xtra Frequency) Signal Generator

Name: Leica DigiTex 100t XF (Xtra Frequency) Signal Generator
Brand: Leica
SKU: LeicaDigiTex 100t XF - 798648
Price: 1070.00 USD
Availability: InStock

0 reviews | Catalog: 798648 | Model: Leica DigiTex 100t XF - 798648

Compare

DigiTex 100t xf (Xtra Frequency) Signal Generator Connection cable set: Earth Spike, Crocodile connection cable set

Four adjustable power output levels; select the output for site or tracing conditions
Durable weatherproof design, environmental protection rating of IP67
Robust, compact and lightweight design engineered for tough site conditions
Choice of four tracing signals; select the frequency for site or tracing range
Ease-of-use, default output frequency of 33 kHz, power level 2
Clear, audio visual controls, externally mounted, displaying the transmitters output condition
Built-in test function allowing operators to test the hardware and software functionality before use

View Product Details

List Price: $1,070.00

In Stock:

View Payment Options

Recommended for you

Leica DigiTex 100t XF (Xtra Frequency) Signal Generator

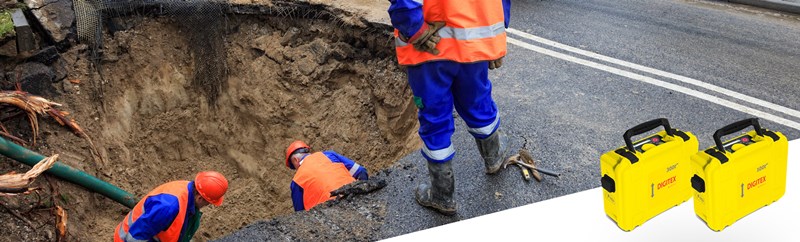

The Leica DIGITEX xf-Series signal transmitters are ideal for tracing buried utilities over greater distances. They apply a signal onto underground utilities that don’t carry a detectable signal. A Leica DIGICAT xf-Series locator can then be used to locate the signal from the Leica DIGITEX signal transmitter.

The Leica DIGITEX xf-Series signal transmitters are designed to provide long distance utility tracing in conjunction with the Leica DIGICAT xf-Series locators.

Improved utility detection over greater distances

These intelligent signal transmitters can be used:

To trace and locate utilities over longer distances using additional lower frequencies
Enables depth estimation, when using a depth enabled cable locator
Enables locating of non-conductive utilities
Use a range of accessories to locate a range of utilities

Leica DIGITEX 100t xf signal transmitter - 1 Watt signal transmitter to trace buried utilities over long distances.

Leica DIGITEX 300t xf signal transmitter - 3 Watt signal transmitter ideal if you are tracing buried utilities over long distances and if you are frequently locating underground utilities in areas with high signal interference.

Features	Digitex 100t xf Article no. 798648	Digitex 300t xf Article no. 798649
8 kHz mode	8.192 kHz	8.192 kHz
33 kHz mode	32.768 kHz	32.768 kHz
Mixed 8/33	8.192 kHz/32.768 kHz	8.192 kHz/32.768 kHz
512 Hz mode	512 Hz	512 Hz
640 Hz mode	640 Hz	640 Hz
Induction (max)	Up to 1W max	Up to 1W max
Direct connection (300 Ohms)	Up to 1W max when connected to a buried utility with an impedance of 300 Ohms	Up to 3W max when connected to a buried utility with an impedance of 300 Ohms
Protection (case lid closed)	IP67	IP67
Working temperature	–20°C to +50°C	–20°C to +50°C
Battery type	4 x D alkaline (IEC LR20), supplied	4 x D alkaline (IEC LR20), supplied
Battery life (typical use at 20C)	30hrs intermittent use	20hrs intermittent use
Weight	2.5kg/5.5lbs including batteries	2.5kg/5.5lbs including batteries
Dimensions	113mm (H) x 206mm (D) x 250mm (W)	113mm (H) x 206mm (D) x 250mm (W)
Extended self test	Induction and Connection Modes	Induction and Connection Modes
Power output levels	4	4

Test Equipment General Attributes
IP Rating	IP54, IP65
Product Weight	5.3 LBS
Product Height	6.30 IN
Product Length	10.90 IN
Product Width	9.00 IN
Battery Type	AA
Power Supply Voltage	Battery Powered
Shipping Height	6.30 IN
Shipping Length	10.90 IN
Shipping Width	9.00 IN
