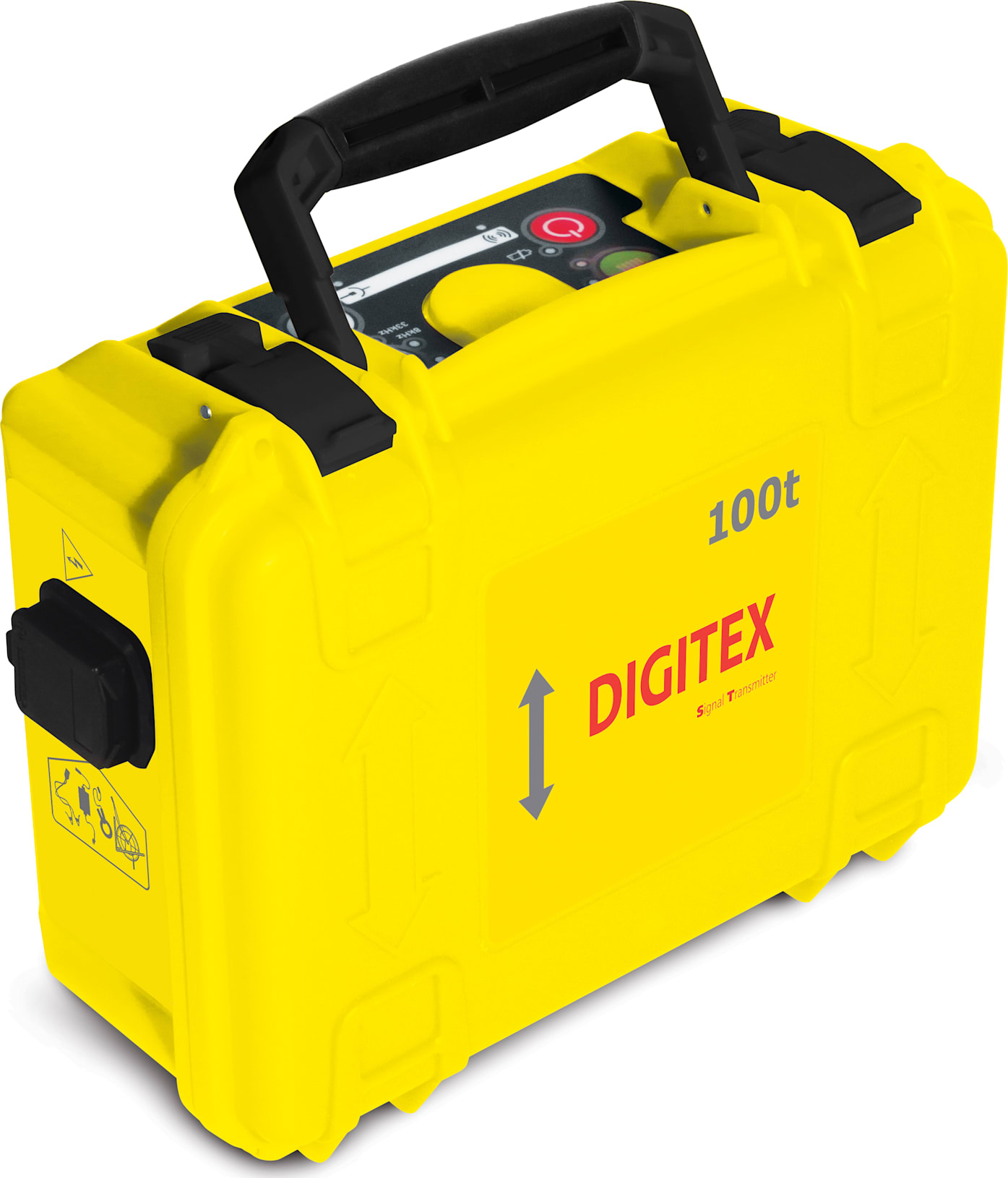

Leica Digitex 100T Signal Generator

Name: Leica Digitex 100T Signal Generator
Brand: Leica
SKU: LeicaDigiTex 100t - 795946
Price: 880.00 USD
Availability: InStock

0 reviews | Catalog: 795946 | Model: Leica DigiTex 100t - 795946

Compare

DIGITEX 8/33, signal generator Digitex 100t

To improve utility detection in areas of high signal interference
Enables depth estimation, when using a depth enabled cable locator
Enables to locating of non-conductive utilities by applying a detectable signal onto underground utilities. The signal can then be traced using a Leica DIGICAT cable locator. Using the Leica DIGITEX signal transmitters this way will help you locate around 50% more buried cables or pipes than using a DIGICAT cable locator alone.
Use a range of accessories to locate a range of utilities

View Product Details

List Price: $880.00

In Stock:

Recommended for you

Leica Digitex signal transmitters deliver significantly higher power than previous models. This improved performance will allow users to:

Direct Connection ×	Direct Connection Connect the Digitex to a conductive utility such as a valve, stop tap or other access point.
Signal Clamp Connection ×	Signal Clamp Connection A signal clamp is used to apply the Digitex signal to a pipe or live electricity cable. Supply is not interrupted by the signal and the operator is not exposed to any live utility.
Induction ×	Induction The Digitex induces a tracing signal into the buried pipe or cable. This is a quick and convenient method when direct connection or signal clamping is not possible.

Features	Digitex 100t Article no. 795946	Digitex 300t Article no. 798651
8 kHz Mode	8.192 kHz	8.192 kHz
33 kHz Mode	32.768 kHz	32.768 kHz
Mixed 8/33	8.192 kHz/32.768 kHz	8.192 kHz/32.768 kHz
Induction (Max)	>Up to 1W max	Up to 1W max
Direct connection (300 Ohms)	Up to 1W max when connected to a buried utility with an impedance of 300 Ohms	Up to 3W max when connected to a buried utility with an impedance of 300 Ohms
Protection (case lid closed)	IP67	IP67
Working temperature	–20°C to +50°C	–20°C to +50°C
Battery type	4 x D alkaline (IEC LR20), supplied	4 x D alkaline (IEC LR20), supplied
Battery life (typical use at 20°C)	30hrs intermittent use	20hrs intermittent use
Weight	2.5kg/5.5lbs including batteries	2.5kg/5.5lbs including batteries
Dimensions	113mm (H) x 206mm (D) x 250mm (W)	113mm (H) x 206mm (D) x 250mm (W)
Extended self test	Induction and Connection Modes	Induction and Connection Modes
Power output levels	4	4
