Leica Rod Eye 160 Digital and Bracket

Name: Leica Rod Eye 160 Digital and Bracket
Brand: Leica
SKU: Leica789924
Price: 380.00 USD
Availability: InStock

0 reviews | Catalog: 789924 | UPC: 7640110693339 | Model: Leica 789924

Compare

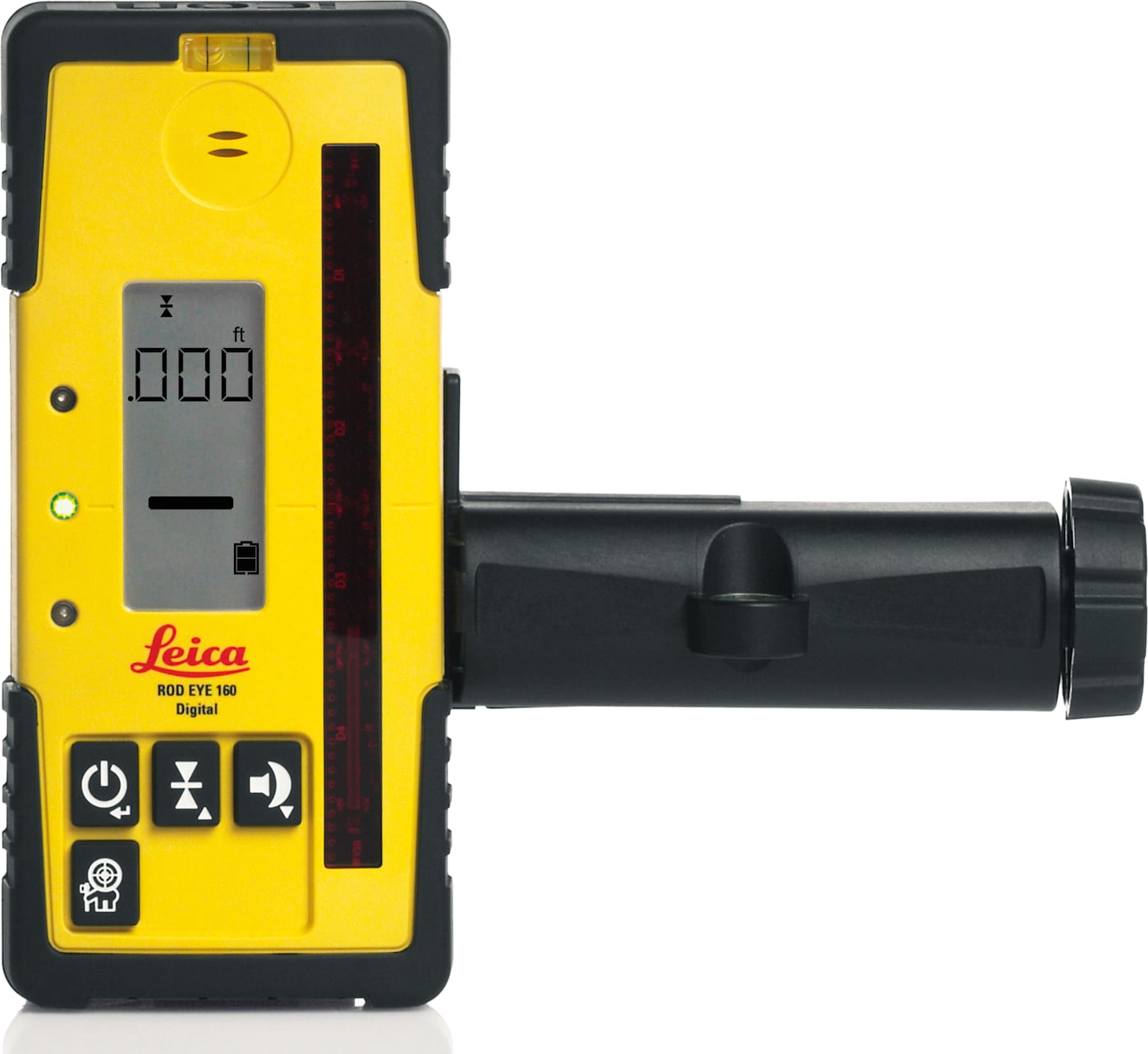

Rod Eye 160 Digital Receiver w/Bracket

Digital Readout - large numbers are clear and easy to read. 21 step arrow displays provide a graduated reference as you lock on the laser beam
LCD Indication - Two, large graphic displays on the front and back of the receiver
LED Indication - Three bright LED’s can be used as a ready reference for the receiver position
Capture Function - The capture button allows the user to store and display a measurement
Level Vial - Ensures good alignment and improves your reading accuracy
Audio Indication - Four audio settings. Up to 110 decibels for noisy jobs
Versatile Rod Bracket - Rugged rod clamp ensures solid mounting to the grade rod

View Product Details

Your Price: $380.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Leica 789924 Rod Eye 160 Digital Receiver w/Bracket	Leica 789923 Rod Eye 140 Classic Receiver w/Bracket
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Leica 789924 Accessories

Choose a Category

General Accessories

for the Leica 789924

Leica 8250901 PRB MOUNTING BRACKET FOR LASER RECEIVERS

Catalog: 8250901

(0)

In Stock!

Add to Cart

Leica 835666 Rod Eye Receiver Bracket (for Rod Eye-140, 160, and 180 - replaces 789927)

Catalog: 835666

(0)

In Stock!

Add to Cart

Leica Rod Eye 160 Digital and Bracket

Digital Readout - large numbers are clear and easy to read. 21 step arrow displays provide a graduated reference as you lock on the laser beam
LCD Indication - Two, large graphic displays on the front and back of the receiver
LED Indication - Three bright LED’s can be used as a ready reference for the receiver position
Capture Function - The capture button allows the user to store and display a measurement

Professional receiver

Digital readout - the large numbers are clear and easy to read so you can stay on grade. Capture function allows the user to store and display a measurement. Anti-strobe protection detects and ignores the flash from strong strobes on the job.

Anti-strobe Protection - Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function
Beam Finding - Passing the receiver through the laser beam will cause the receiver to beep twice quickly
Out of Beam Display - If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam
Laser Low Battery - A small laser icon on the receiver display alerts the user when the batteries are getting low

Technical Data	Rod Eye Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye 180 Digital RF
Smart Targeting, Smart Lock				■
Working diameter (laser dependent)	600 m (2.000 ft)	1.350 m (4.430 ft)
Detection window	36 mm (1.4 in)	120 mm (5.0 in)
Digital readout / height			■/ 90 mm (3.5 in)
Digital readout / units			mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm
Automatic shutoff	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Med / Low / Off
Arrow display	5 channels	9 channels	15 channels
Detection accuracies	Fine ± 1 mm (±0.04 in) Coarse ± 3 mm (±0.12 in)	Fine ± 1 mm (±0.04 in) Medium ± 2 mm (±0.08 in) Coarse ± 3 mm (±0.12 in)	Very fine ± 0.5 mm (±0.02 in) Fine ± 1 mm (±0.04 in) Medium ± 2 mm (±0.08 in) Coarse ± 3 mm (±0.12 in) Very Coarse ± 5 mm (±0.20 in)
LED display		■	■	■
Anti-strobe protection		■	■	■
Memory, last beam strike		■	■	■
Beam finding, double beep		■	■	■
Laser low battery indicator		■	■	■
Environmental standard	IP 66	IP 67
Battery life (hours)	50+ (1x 9V type)	50+ (2x AA type)
Dimensions (HWD)	150 × 80 × 35 mm (5.9 × 3.1 × 1.5 in)	173 × 76 × 29 mm (6.8 × 3.0 × 1.1 in)
Operating temperature range		-20°C to +50°C (-4°F to +122°F)
Warranty	1 year	3 years
