Leica Rod Eye 140 Classic and Bracket

Name: Leica Rod Eye 140 Classic and Bracket
Brand: Leica
SKU: Leica789923
Price: 335.00 USD
Availability: InStock

0 reviews | Catalog: 789923 | UPC: 7640110693322 | Model: Leica 789923

Compare

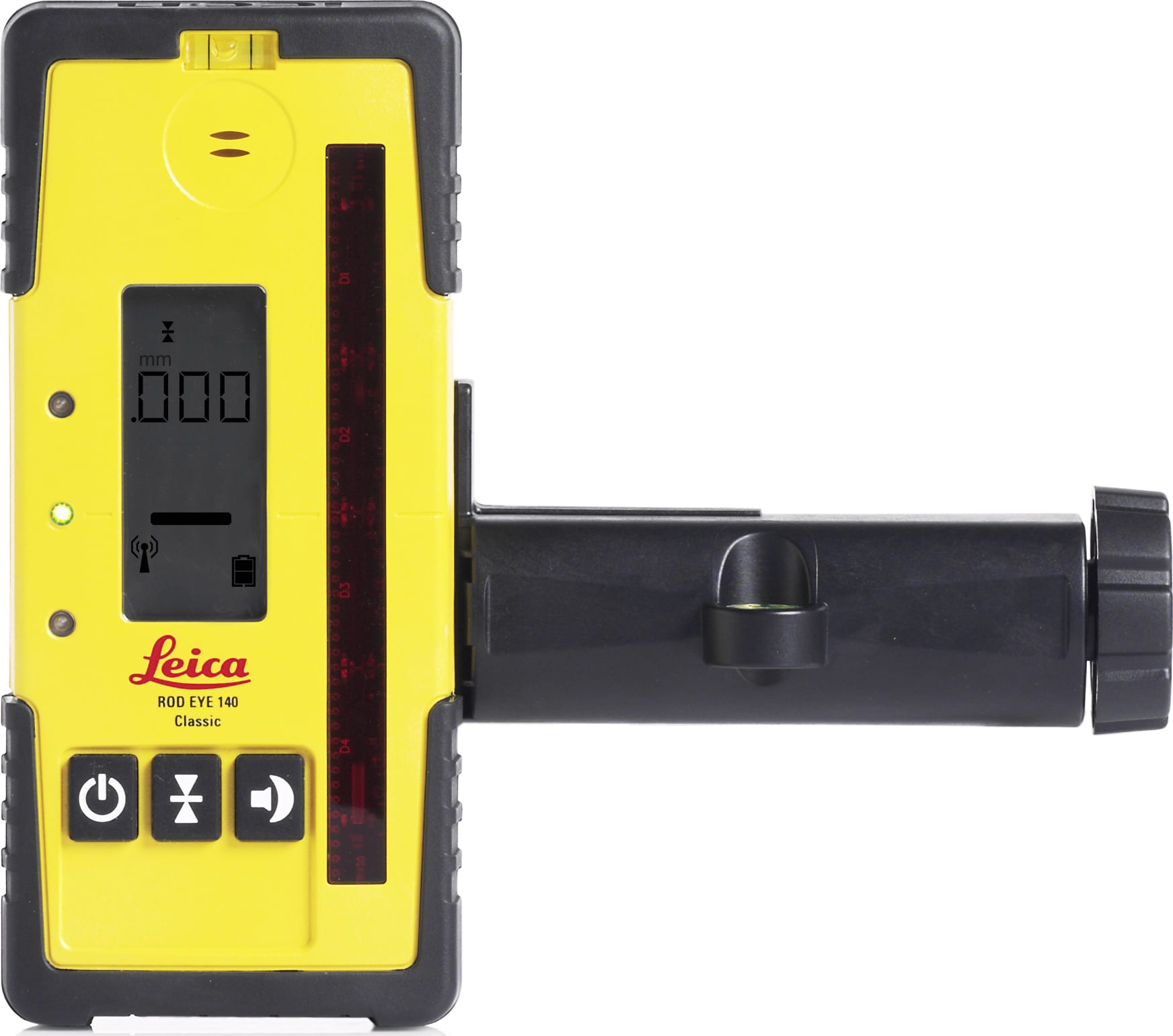

Rod Eye 140 Classic Receiver w/Bracket

LCD indication - two large graphic displays on the front and back of the receiver
Level vial - ensures excellent alignment and improves your reading accuracy
Anti-strobe protection - detects and ignores the flash from strong strobes on the job
Built-in 12 cm detection window allows easy detection of the beam over the entire distance

View Product Details

Your Price: $335.00

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options



Product	Leica 789923 Rod Eye 140 Classic Receiver w/Bracket	Leica 789924 Rod Eye 160 Digital Receiver w/Bracket
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Choose a Category

(0)

In Stock!

Add to Cart

(0)

In Stock!

Add to Cart

LCD indication - two large graphic displays on the front and back of the receiver
Level vial - ensures excellent alignment and improves your reading accuracy
Anti-strobe protection - detects and ignores the flash from strong strobes on the job
Built-in 12 cm detection window allows easy detection of the beam over the entire distance

The Leica Rod Eye 140 classic is a standard receiver with arrow display.

Anti-strobe Protection - Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function
Beam Finding - Passing the receiver through the laser beam will cause the receiver to beep twice quickly
Out of Beam Display - If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam
Laser Low Battery - A small laser icon on the receiver display alerts the user when the batteries are getting low

Technical Data	Rod Eye Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye 180 Digital RF
Smart Targeting, Smart Lock				■
Working diameter (laser dependent)	600 m (2.000 ft)	1.350 m (4.430 ft)
Detection window	36 mm (1.4 in)	120 mm (5.0 in)
Digital readout / height			■/ 90 mm (3.5 in)
Digital readout / units			mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm
Automatic shutoff	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Med / Low / Off
Arrow display	5 channels	9 channels	15 channels
Detection accuracies	Fine ± 1 mm (±0.04 in) Coarse ± 3 mm (±0.12 in)	Fine ± 1 mm (±0.04 in) Medium ± 2 mm (±0.08 in) Coarse ± 3 mm (±0.12 in)	Very fine ± 0.5 mm (±0.02 in) Fine ± 1 mm (±0.04 in) Medium ± 2 mm (±0.08 in) Coarse ± 3 mm (±0.12 in) Very Coarse ± 5 mm (±0.20 in)
LED display		■	■	■
Anti-strobe protection		■	■	■
Memory, last beam strike		■	■	■
Beam finding, double beep		■	■	■
Laser low battery indicator		■	■	■
Environmental standard	IP 66	IP 67
Battery life (hours)	50+ (1x 9V type)	50+ (2x AA type)
Dimensions (HWD)	150 × 80 × 35 mm (5.9 × 3.1 × 1.5 in)	173 × 76 × 29 mm (6.8 × 3.0 × 1.1 in)
Operating temperature range		-20°C to +50°C (-4°F to +122°F)
Warranty	1 year	3 years
