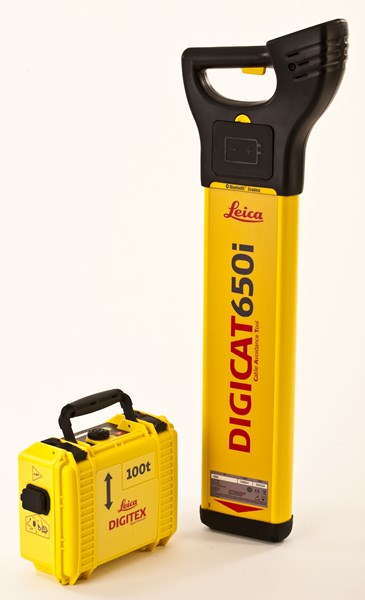

Leica 650i Digi System with DigiCat 650i Locator, Digitex 100t Transmitter

Name: Leica 650i Digi System with DigiCat 650i Locator, Digitex 100t Transmitter
Brand: Leica
SKU: Leica650i BASIC - 6007393
Price: 2575.00 USD
Availability: InStock

0 reviews | Catalog: 6007393 | Model: Leica 650i BASIC - 6007393

Compare

Basic Bundle: (650i)

State-of-the-art digital signal processing technology (DSP) for precision locating
Automatic controls - easy to use, requiring minimal user training
Starts in Power Mode - ensuring the most potentially dangerous current carrying services are detected first for maximum operator safety
Hazard Zone - the new feature which indicates the presence of a shallow buried service in power, 8kHz, 33kHz and Auto mode, (within approximately 1 ft/30 cm) alerting users to the increased risk
Built-in test function - allowing operators to test the hardware and software functionality of the Digicat before use
Added benefit of utility depth estimation to 10 ft/3 m for additional survey information
Robust, light weight design, specifically engineered for tough site conditions
Auto Mode - Convenient for initial site occupation, simultaneously scanning in Power and Radio

View Product Details

List Price: $2,575.00

In Stock:

View Payment Options

Recommended for you

Leica 650i Digi System with DigiCat 650i Locator, Digitex 100t Transmitter

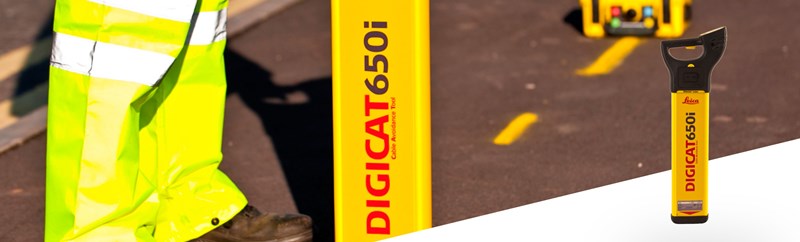

The Leica DIGICAT 650i cable locators feature fully integrated data logging capabilities with Bluetooth delivering the Where and How.

Avoiding underground cables is a major concern on construction sites and identifying the position of these buried utilities before excavation work can help prevent operator injury, asset damage risks or any subsequent costs. The Leica DIGICAT 650i cable locators record the cable locating activities, making it easier for you to identify training needs of operators and provides users with evidence of compliance to industry best practice.

Unmatched ease-of-use

With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your DIGICAT cable locator ensuring you’re using the optimum sensitivity for the environment you are detecting the underground utilities in. Reducing the likelihood of human error and ultimately saving you time and money.

Better informed about your site environment

The Leica DIGICAT 650i Series cable locators record and store how and when your cable locator has been used. The data collected can then be easily transferred via Bluetooth to your PC, Android mobile phone or tablet, using Leica’s LOGiCAT software. It provides you with visibility of locating activities enabling identification of training needs and providing traceability of locating activities following a near miss or utility strike.

Leica Digitex Signal Transmitters

Leica Digitex signal transmitters deliver significantly higher power than previous models. This improved performance will allow users to:

Trace utilities over a greater distance
Improve utility detection in areas of high signal interference
Improve depth estimation when using a depth locator

Direct Connection ×	Direct Connection Connect the Digitex to a conductive utility such as a valve, stop tap or other access point.
Signal Clamp Connection ×	Signal Clamp Connection A signal clamp is used to apply the Digitex signal to a pipe or live electricity cable. Supply is not interrupted by the signal and the operator is not exposed to any live utility.
Induction ×	Induction The Digitex induces a tracing signal into the buried pipe or cable. This is a quick and convenient method when direct connection or signal clamping is not possible.

Features	Digicat 650i (Art. No. 50 Hz 795941/60 Hz 795944)
Frequency / Mode	Power mode 50 Hz or 60 Hz, Radio mode 15 kHz to 60 kHz, Transmitter mode 8 kHz and 33 kHz, Auto mode = Power + Radio mode
Depth detection (typical)	Power to 3m, Radio to 2m, Transmitter mode dependant on signal transmitter or sonde
Protection	Conforms to IP54
Batteries	6 x AA alkaline (IEC LR6), supplied
Battery life	40 hours intermittent use (at 20°C)
Weight	2.7kg including batteries
Depth estimation	10% of depth in line or sonde (0.3 to 3m depth range)
Bluetooth®	Enabled
Compatibility	CSV file compatibility program
Memory size	32MB memory
GIS mapping capability	X

Features	Digitex 100t Article no. 795946
8 kHz Mode	8.192 kHz
33 kHz Mode	32.768 kHz
Mixed 8/33	8.192 kHz/32.768 kHz
Induction (Max)	Up to 1W max
Direct connection (300 Ohms)	Up to 1W max when connected to a buried utility with an impedance of 300 Ohms
Protection (case lid closed)	–20°C to +50°C
Battery type	4 x D alkaline (IEC LR20), supplied
Battery life (typical use at 20°C)	30hrs intermittent use
Weight	2.5kg/5.5lbs including batteries
Dimensions	113mm (H) x 206mm (D) x 250mm (W)
Extended self test	Induction and Connection Modes
Power output levels	4

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

These all come with the 650i, but include a variety of different accessories. There are also packages designed for plumbers and electricians. The following is a brief overview of what comes with each: • 650i BASIC - part number 6007393 - Basic bundle • Digicat 650i locator • Digitex 100t signal generator • 650i BASIC BAG - part number 6007394 - Basic bundle with bag • Digicat 650i locator • Digitex 100t signal generator • Carry bag for DIGI system • 650i PLUMBER - part number 6007395 - Plumber''s bundle • Digicat 650i locator • Digitex 100t signal generator • Carry bag for DIGI system • Digimouse, single point • 650i ELEC - part number 6007396 - Electrician''s Bundle • Digicat 650i locator • Digitex 100t signal generator • Carry bag for DIGI system • Signal clamp, cable length 2.0m
