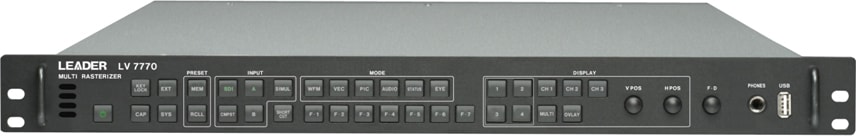

Leader LV7770 Multi SDI Rasterizer

Name: Leader LV7770 Multi SDI Rasterizer
Brand: Leader
SKU: LeaderLV7770
Price: 8452.50 USD
Availability: InStock

0 reviews | UPC: 638267649573 | Model: Leader LV7770

Compare

Multi SDI Rasterizer Mainframe Only, includes 8 channel AES/EBU (LV5770SER08 or LV5770SER09A)

Accepts two 3G-HD SD SDI waveform monitor sources and provides Picture, Waveform, Vector, Audio, CINELITE® II, 5-Bar and Status Displays individually and in various screen combinations.
Supports Dual Link & 3G Level A & B Operation.
Autonomous Monitoring & Error Detection; Alarm for audio silence/Video Freeze & Video Black.
Data Analysis, Settable Error Levels with Monitoring, Alarms and Error Logs with Time Code.
Platform can monitor and display two sources at the same time in two or four split screen displays.
Included as standard, Digital Audio supports full Loudness, Lip-sync and A/V Delay Measurements in addition to providing Lissajous and Bar Graph Displays.
Accepts and displays On Picture and Data for Closed Caption (Supports both EIA-608-B & EIA-708 systems).
USB Connector allows the use of a flash drive for storing captured screens, Presets and software/firmware updates.
DVI-D Rasterized Output displays to external LCD Monitor.
HDMI Program Output of the selected source is provided.
Supports Options including Physical Layer Testing with Eye Pattern, Digital (additional 8 channels) & Analog Audio and Composite Inputs.
Ethernet connectivity allows for Remote Control over the web; Supports TELNET, FTP, HTTP & SNMP.
Universal AC Power Supply allows for worldwide use.

View Product Details

List Price: $8,452.50

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Leader LV7770

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

LV7770 MULTI SDI RASTERIZER

Configurable & Affordable

The LV 7770 is a rasterizer that supports 3G-SDI, HD dual link, HD-SDI, and SD-SDI signals. It has a variety of features, including simultaneous monitoring of two SDI input signals, frame capturing, lip sync measurement, and ANC data analysis.

FEATURES

3G-SDI Compatible 2-Channel Simultaneous Display (LV 5770SER08 and LV 5770SER09A)
The LV 7770 is equipped with a pair of SDI input connectors that support 3GSDI, HD dual link, HD-SDI, and SD-SDI signals. The two input signals can be displayed simultaneously. Even when one of the input signals is not being displayed, the LV 7770 still monitors the undisplayed signal for errors. In addition, the LV 7770 is equipped with SDI output connectors that can generate serial reclocked SDI signals from the input SDI signals. The A/B output connector generates the reclocked signal of the SDI signal applied to channel A or channel B. The output that is generated from this connector is switched between the two channels whenever an input key (A or B) is pressed.

Wide Variety of Display Formats (LV 5770SER08 and LV 5770SER09A)
In the video signal waveform display, vector display, and picture display, the LV 7770 can display up to two input SDI signals on top of each other or side by side. This makes it suitable for adjusting the gain and black balance values of two video signals. In the video signal waveform and vector displays, the LV 7770 can make different input channels easier to see by displaying them using different colors.

Capture Feature
A screen capture feature that captures the screen as still images, a frame capture feature that captures single frames of SDI signals, and an error capture feature that automatically detects and captures error frames are available. Not only can captured data be displayed by the LV 7770, but it can also be compared with an input signal or saved to a USB memory device. It is easy to view the saved data on a PC.

XGA Resolution DVI-I Output
The measurement display has XGA resolution (an effective resolution of 1024 x768) and can be output from the DVI-I connector, which supports single-link TMDS. The aspect ratio can be switched between 4:3, 16:9, and 16:10. (The display must have a resolution conversion feature.)

Picture Monitor Output (LV 5770SER08 and LV 5770SER09A)
The input SDI signal can be generated as an 8-bit signal. Regardless of the SDI input signal, the output format can be set to YCBCR 4:2:2, YCBCR 4:4:4, or RGB 4:4:4.

3D Assist Display (LV 5770SER08 and LV 5770SER09A)
3D video signals can be evaluated by applying the video signal for the left eye to channel A and the video signal for the right eye to channel B. The available picture display formats are anaglyph, convergence, overlay, wipe, checker, and flicker.

Digital Audio I/O
An external digital audio signal can be displayed in addition to the embedded audio. The eight I/O channels of the four connectors can be switched between input and output. Therefore, the LV 7770 can also be used to extract and transmit the embedded audio's digital audio. Also, when the 16-channel digital audio I/O option (LV 7770 OP70) is installed in the LV 7770, the number of I/O connectors can be expanded to 8 connectors with 16 channels.(To measure embedded audio, the LV 7770 must have the LV 5770SER08 or LV 5770SER09 installed.)

With Loudness Measurement Function (for 2 Signals)

Standard-Equipped CINELITE II / CINELITE Advanced
The CINELITE feature makes it easy to manage the levels of specific points on the picture display. This is useful for adjusting the gain of multiple cameras through the use of the same reference point. The CINEZONE feature makes it possible to check the luminance distribution of the whole picture display at a glance.

SDI Signal Data Analysis Feature (LV 5770SER08 and LV 5770SER09A)
On the status display, SDI signal transmission errors and various errors related to the embedded audio signal and ancillary data can be detected. In addition, the LV 7770 has event log, data dump, and external sync signal and SDI signal phase difference display features for analyzing SDI signals. Ancillary data is displayed along with the embedded line numbers and numbers of the corresponding standards in a list. This makes it possible to display detailed analyses.

Timecode Display (LV 5770SER08 and LV 5770SER09A)
The LTC and VITC that are embedded in an SDI signal and the D-VITC that is embedded in an SD-SDI signal can be displayed. The timecode can also be used for time stamps in the event log.

Superimposing of English Closed Captions (LV 5770SER08 and LV 5770SER09A)
The English closed captions (EIA-608, EIA-708, or VBI) that are embedded in an SDI signal can be superimposed over the image on the picture screen.

External Control Connectors
The LV 7770 has two external control connectors: an Ethernet port and a remote control connector. By connecting the Ethernet interface to a PC, you can control the LV 7770 remotely over TELNET, transfer files over FTP, control the LV 7770 remotely and detect errors over SNMP, and control the LV 7770 over HTTP. You can also connect to the separately-sold LV 7770-01 (REMOTE CONTROLLER). (You cannot use TELNET and the LV 7770-01 at the same time.) The remote control connector can be used to load presets, switch the input signal, and transmit errors.

Rear Panel shown with Eye & Jitter Pattern Option, Analog Audio Option,
Digital Audio In/Out Option and Composite Inputs Option

UNIVERSAL POWER SUPPLY: 90-250 vac (50-60 Hz).
8-CH DIGITAL AUDIO AES/EBU IN/OUT: Provides 8 channels of AES/EBU inputs/outputs.
REMOTE: Remote connector provides remote control of preset selections.
ETHERNET CONNECTIVITY: Ethernet remote control, web access and remote reporting.
XGA OUTPUT: Standard DVI-D Computer Monitor Rasterizer Output emulates built-in screen display.
HDMI OUTPUT: A Picture-Only output can send the selected SDI input source to an external HDMI monitor.
SDI OUTPUTS: Reclocked output signals generated from the signals received through the SDI inputs. These are picture only and not rasterized SDI outputs.
SDI INPUTS: 2 Serial Inputs support 3G, SD/HD SDI operation (auto-select). Picture, Waveform, Vector, CINELITE II, 5-Bar, Status Displays.
ANALOG AUDIO: Provides 8 channels of Analog Audio I/O.
COMPOSITE INPUTS: Accepts 2 Composite Inputs and provides Switched Monitor Output of the selected composite source.
EXT REF INPUT: EXT REF Loop-through Input accepts Standard Tri-Level Sync and Black Burst.

LV7390 Specifications
Bit Rate
3G-SDI	2.970 Gbps or 2.970/1.001 Gbps
HD-SDI	1.485 Gbps or 1.485/1.001 Gbps
SD-SDI	270 Mbps
SD-SDI Video Signal Formats and Standards
Color System	Quantization	Scanning	Frame (Field) Rates	Compliant Standard
YCbCr 4:2:2	10 bits	525i	59.94	SMPTE ST259
		625i	50
HD-SDI Video Signal Formats and Standards
Color System	Quantization	Scanning	Frame (Field) Rates	Compliant Standard
YCbCr 4:2:2	10 bits	1080i	60, 59.94, 50	SMPTE ST274
		1080p	30, 29.97, 25, 24, 23.98	SMPTE ST292
		1080PsF	30, 29.97, 25, 24, 23.98
		720p	60, 59.94, 50, 30, 29.97, 25, 24, 23.98	SMPTE ST296
				SMPTE ST292
HD Dual Link Video Signal Formats and Standards
Color System	Quantization	Scanning	Frame (Field) Rates	Compliant Standard
YCbCr 4:2:2	10 bits	1080p	60, 59.94, 50	SMPTE ST372 (1920 x 1080)
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
YCbCr 4:4:4	10 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
RGB 4:4:4	10 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
		1080p	24, 23.98	(2048 x 1080)
		1080PsF	24, 23.98
When these signals are displayed, phase differences of up to 100 clocks (approx. 1.4 us) between links A and B are automatically corrected. 1080p/60 1080p/59.94, and 1080p/50 signals can not be used in external sync mode.
3G-SDI Level A Video Signal Formats and Standards
Color System	Quantization	Scanning	Frame (Field) Rates	Compliant Standard
YCbCr 4:2:2	10 bits	1080p	60, 59.94, 50	SMPTE ST424 SMPTE ST425
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
YCbCr 4:4:4	10 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
		720p	60, 59.94, 50, 30, 29.97, 25, 24, 23.98
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
RGB 4:4:4	10 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
		720p	60, 59.94, 50, 30, 29.97, 25, 24, 23.98
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
		1080p	24, 23.98	(2048 x 1080)
		1080PsF	24, 23.98
720p/30, 720p/29.97, and 720p/24 signals can not be used in external sync mode. In addition, 2H display on the video signal waveform display is not possible for 1080p/60, 1080p/59.94, and 1080p/50 signals
3G-SDI Level B Video Signal Formats and Standards
Color System	Quantization	Scanning	Frame (Field) Rates	Compliant Standard
YCbCr 4:2:2	10 bits	1080p	60, 59.94, 50	SMPTE ST424 SMPTE ST425
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
YCbCr 4:4:4	10 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
RGB 4:4:4	10 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
	12 bits	1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		1080i	60, 59.94, 50
		1080p	24, 23.98	(2048 x 1080)
		1080PsF	24, 23.98
2H display on the video signal waveform display is not possible for 1080p/60, 1080p/59.94 and 1080p/50 signals
3G-SDI Level B (2 map) Video Signal Formats and Standards
Color System	Quantization	Scanning	Frame (Field) Rates	Compliant Standard
YCbCr 4:2:2	10 bits	1080i	60, 59.94, 50	SMPTE ST424 SMPTE ST425
		1080p	30, 29.97, 25, 24, 23.98
		1080PsF	30, 29.97, 25, 24, 23.98
		720p	60, 59.94, 50, 30, 29.97, 25, 24, 23.98
720p/30, 720p/29.97, 720p/25, 720p/24, and 720p/23.98 signals can not be used in external sync mode
GENERAL SPECIFICATIONS
Environmental Conditions
Operating Temperature Range		0 to 40^oC
Operating Humidity Range		85% RH or less (no condensation)
Optimal Temperature		10 to 30^oC
Operating Environment		Indoors
Elevation		Up to 2,000 m
Over Voltage Category		II
Pollution Degree		2
Power Requirements
Voltage		90 to 250 V_AC
Frequency		50/60 Hz
Power Consumption		120 W max.
Dimensions (excluding protrusions)		426mm (W) x 44mm (H) x 460mm (D)
		16.77 inch (W) x 1.73 inch (H), 18.11 inch (D)
Weight (excluding options and accessories)		Approx. 5Kg
Accessories		Power Cord (1), Cover/inlet Stopper (1), 15-pin D-sub Connector (1), 15-pin D-sub Connector Cover (1), 37-pin D-Sub Connector (1), 37-pin D-Sub Connector Cover (1), Instruction Manual (1)

Tech Specs

Test Equipment General Attributes
Unique Features	Supports Dual Link & 3G Level A & B Operation
Warranty	2 YEARS
