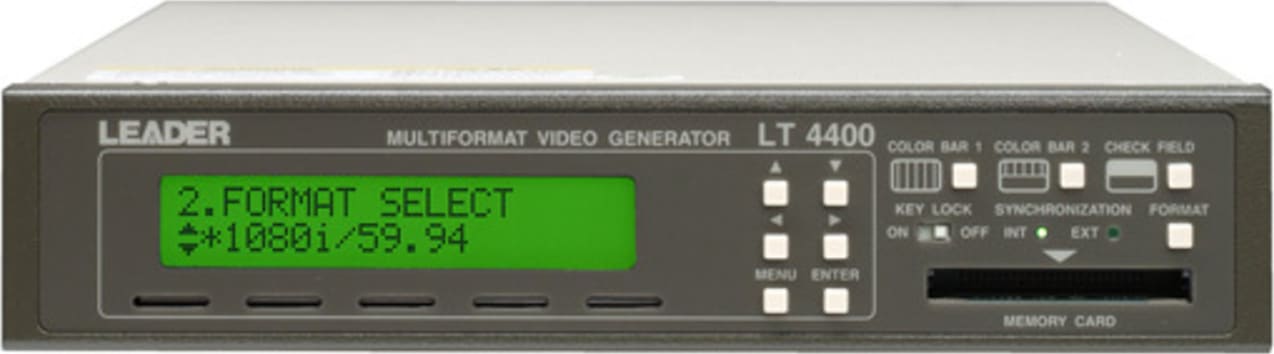

| Number of Outputs |
1 system, 2 outputs (75 Ohms, BNC) HD-SDI/SD-SDI, selectable |
| Conform To |
| HDTV |
SMPTE 274M, SMPTE 296M, SMPTE 292M (except return loss) |
| SDTV |
ITU-R BT 601, SMPTE 125M
ITU-R BT 656, SMPTE 259M |
| Applicable Format |
| HDTV |
1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.98, 1080PsF/24, 1080PsF/23.98, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25, 720p/24, 720p/23.98 |
| SDTV |
525i/59.94-270 MHz, 625i/50-270 MHz |
| Timing Variable |
| Variable Range |
Entire frame range |
| Resolution |
V: Settable in line steps
H: Settable in clock steps
(74.25 MHz, 74.25/1.001 MHz, 27 MHz) |
| Test Patterns |
| HDTV |
COLOR BAR 100 %, COLOR BAR 75 %, MULTIFORMAT COLOR BAR (ARIB STD-B28:75 % White, 100% White, and + I signal, selectable), CHECK FIELD |
| SDTV |
COLOR BAR 100% (applicable to both 525i/59.94,625i/50), COLOR BAR 75 %, SMPTE COLOR BAR (applicable to 525i/59.94), EBU COLOR BAR/BBC COLOR BAR (applicable to 625i/50), CHECK FIELD (applicable to both 525i/59.94, 625i/50) |
| Safety Area Marker |
| HDTV |
Action safety area (90 %), Title safety area (80 %)
4:3 aspect ratio
Selectable ON/OFF individually |
| SDTV |
Action safety area (90 %), Title safety area (80 %)
Selectable ON/OFF individually |
| ID Characters |
| Number of Characters |
Up to 20 characters |
| Size |
| HDTV |
32x32/64x64/128x128 dots selectable |
| SDTV |
32x32/64x64 dots selectable |
| Display Position |
Displays at an arbitrary position on the screen. |
| Freeze Confirmation Display |
Blinking OFF, 1 to 10 seconds |
| Logo Mark |
| Logo Mark Data |
4-level monochrome data between 0 and 3 |
| Maximum Size |
320(dot) x 240(line) (QVGA size) |
| Display Position |
Displays at an arbitrary position on the screen |
| Display Level |
Set arbitrary levels for levels 0 to 3 |
| Display Method |
Simultaneous display with the ID character |
| File Format |
| Before Conversion |
24-bit full-color bitmap data (.bmp) format |
| After Conversion |
LT4400/LT443D dedicated (.lg) format |
| Conversion Color Matrix |
Y = 0.212*R + 0.701*G + 0.087*B
Converts 256-level monochrome data(Y) to four levels(level 0 to 3) using arbitrary threshold values. |
| Conversion Method |
Converted using the logo mark conversion application. |
| Transferring the Logo Mark Data |
Saves the data to a commercially sold Compact Flash card and inserts it to the LT4400. *The data loaded from CF card to the LT4400 cannot be held when the power is turned OFF. |
| Pattern Scroll (Simple Motion Picture Mode) |
| Direction |
8 directions (vertical, horizontal, diagonal) |
Speed (Range, Resolution)
Field and Frame |
| Interlace |
Variable in field steps |
| Others |
Variable in frame steps |
| V Interlace |
0 to 256 lines in 2 line steps |
| Others |
0 to 256 lines in 1 line steps |
| H Common |
0 to 256 dots in 4 line steps |
| Embedded Audio |
| Number of Channels Embedded |
16 Channels (4ch x 4group).
Each group can be set ON/OFF |
| Sampling Frequency |
48 kHz (sync to video signal) |
| Resolution |
20 bits, 24 bits, selectable |
| Preemphasis |
OFF, 50/15 ms, CCITT, selectable (CS bit can only be selected) |
| Frame Number |
ON, OFF, selectable |
| Frequency |
400 Hz /800 Hz /1 kHz, selectable (sets to each channel) |
| Level |
Can be selected including silence (sets to each channel) -60 to 0 dBFS (settable in 1 dBFS steps) |
| Audio Click |
1 sec/2 sec/3 sec/4 sec/OFF (sets to each channel)
* When the CHECK FIELD pattern is selected, no audio signal is embedded.
* In the SDTV format, resolution becomes 20 bits when the 16ch is output. |
| Reference Input Signal |
| Input Configuration |
BNC (75 Ohms, loop through) |
| Input Signal |
| NTSC black burst signal |
EBU N14/SMPTE RP154/SMPTE 170M/SMPTE 318M |
| PAL black burst signal |
ITU-R BT.470-6 |
| HDTV tri-level sync signal |
SMPTE 274M, SMPTE 296M |
| Sync Level |
| NTSC black burst signal |
-286 mV |
| PAL black burst signal |
-300 mV |
| HDTV tri-level sync signal |
±300 mV |
| Maximum Input Level |
± 4.5 V (DC + peak AC) |
| Operating Input Level Range |
± 6 dB |
| External Lock Range |
± 10 ppm |
| Jitter |
| Burst Lock Mode |
= 0.5 ° |
| Sync Lock Mode |
= 1 ns |
| Operation Modes |
| INTERNAL |
Internal reference signal is used for operation. (INT mode) |
| AUTO (GO INTERNAL) |
| The EXT is automatically selected when the external reference signal is applied to the GENLOCK input. The INT mode is automatically selected when the external reference signal is removed. |
| MANUAL (GO INT) |
| The EXT mode is automatically selected when the external reference signal with the same format specified to the GENLOCK input is applied after power is turned on. The INT mode is automatically selected when no external reference signal is applied to the GENLOCK input or signal format does not match the specified format. |
| AUTO (STAYinSYNC) |
| The EXT mode is automatically selected when the external reference signal is applied to the GENLOCK input after power is turned on. If the external reference signal is accidentally removed during operation, the instrument continues operation under the conditions immediately before the signal is removed since STAYinSYNC mode is provided. After the external reference signal is recovered, the system is automatically locked. |
| MANUAL (STAYinSYNC) |
| The EXT mode is automatically selected when the external reference signal with the same format specified to the GENLOCK input is applied after power is turned on. If the external reference signal is accidentally removed during operation, the instrument continues operation under the conditions immediately before the signal is removed since STAYinSYNC mode is provided. The STAYinSYNC mode will be held until the reset operation is performed via the front panel even after the external reference signal is recovered. |
| Variable Range |
| NTSC black burst signal |
± 5 frames |
| PAL black burst signal |
± 2 frames |
| HDTV tri-level sync signal |
1 frame (entire frame range) |
| Resolution |
| H |
0.0741 µs steps (13.5 MHz clock steps) |
| V |
1 line steps |
| F |
1 frame steps |
| Reference Point (at the time of the black burst input) |
| NTSC |
The phase coincident point of line 4 of the NTSC and line 1 of the HDTV |
| PAL |
The phase coincident point of line 1 of the PAL and line 1 of the HDTV |
| Format |
| NTSC black burst signal |
EBU N14, SMPTE RP154, SMPTE 170M, SMPTE 318M |
| HDTV tri-level sync |
SMPTE 274M, SMPTE 296M |
| Output Signal |
| Number of Outputs |
6 Outputs (three output systems which equip with two connectors each) |
| Setting Output Format |
Settable |
| Output Connector |
| Output Impedance |
75 Ohms |
| Output Connector |
BNC |
| Output Timing |
| Setting |
Three systems can be set individually. |
| Variable Range |
| NTSC black burst signal |
± 5 frames |
| PAL black burst signal |
± 2 frames |
| HDTV tri-level sync |
1 frame (entire frame range) |
| Setting Resolution |
| NTSC black burst signal |
0.0185 µs steps (54 MHz in clock steps) |
| HDTV tri-level sync |
0.0135 µs steps (74.25/1.001 MHz in clock steps, or 74.25 MHz in clock steps) |
| Frequency |
48 kHz |
| Output Impedance |
75 O unbalanced ("1 Vp-p" output) |
| Output Amplitude |
1 Vp-p ± 0.1 V (into 75 O), or 5 V CMOS, selectable |
| Output Connector |
BNC |
| Number of Outputs |
1 |
| Timing Variable |
| Variable Range |
± 1 AES/EBU frame |
| Setting Resolution |
512 fs (24.576 MHz) steps |
| Function |
Storing/reading preset data Reading logo data |
| Ethernet Connector |
| Type |
10BASE-T/100BASE-TX, auto switching |
| Function |
Transferring operation status (e.g., genlock status)
Remote control (e.g., pattern switching)
SNMP supported (to be supported in the future) |
| Number of Characters |
20 characters x 2 lines can be displayed (w/backlight) |
| Operating Temperature Range |
0 to 40 °C |
| Operating Humidity Range |
= 85 % RH (without condensation) |
| Spec-Guaranteed Temperature |
10 to 30 °C |
| Spec-Guaranteed Humidity |
= 85 % RH (without condensation) |
| Operating Environment |
Indoor use |
| Operating Altitude |
Up to 2000 m |
| Overvoltage Category |
I |
| Pollution Degree |
2 |
| Power Requirements |
DC12 V (10 to 18 V) 20 W |
| Dimensions and Weight |
213(W) x 44(H) x 400(D) mm (excluding projections), 1.8 kg 8 1/2(W) x 1 3/4(H) x 15(D) in. (excluding projections), 4 lbs. |
| Accessories |
AC adapter(1),Instruction manual(1) |
