High-Quality Conversion, Utility Functions and Space Saving

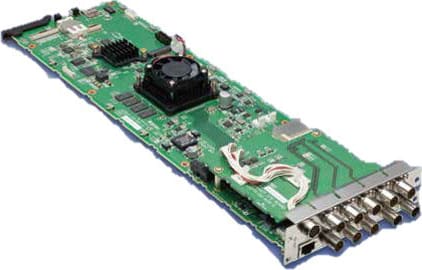

Cross-converter board that supports 4K HDR production.

It is a converter board that supports resolution conversion, format conversion, and color gamut conversion that correspond to 4K and HD input/output. You can use two types of the enclosure according to space and purpose.

Up-Conversion / Down Conversion

• lP conversion with motion detection
• Calculation with 35 pixels (H7 x V5)
• Enhance function
• Giving a good quality natural picture

Utilizing 3D-LUT

• Colorimetry Conversion Calculated with 3D-LUT (32x32x32) 3D-LUT enables a wider color gamut compared to Linear-Matrix.
• Irregular Interval Grid Format (IIGF) Compared to the original image IIGF allows for more precise color reproduction.

Function 2: Colorimetry Conversion

• Camera Log Conversion input and/or output
• 3D-LUT Colorimetry Conversion
• Offset/Gain/Gamma Adjustment
• YC→RGB Conversion Matrix Setting
• RGB→YC Conversion Matrix Setting

Function 3: Audio Processing

• Input / Output Channel Reassignment
• 5.1 Downmix Capability
• Stereo Downmix Capability
• Dolby E Passthrough with no processing

Control Software

• Each board can be controlled via the Web browser.
• For conversion type selection, color adjustment, preset setting, 1D and 3D LUT import or export etc.

WonderLook PRO

• WonderLook PRO is software designed to solve almost all problems required for color adjustment in video production.
• In addition to the IS-mini series, WonderLook PRO can connect to SB-4024/4027 and can capture LUT created on software.
• You can create a look or color space transformation using it for preset LUT, choosing input and output color space or camera profile, and using various colors created with GUI. The created look and color space conversion can be sent to SB - 4024/4027.
