Leader LVB440 - High Bit Rate IP Packet Monitor

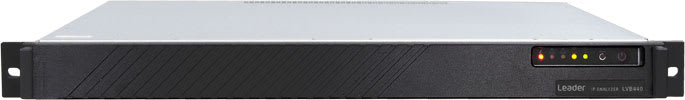

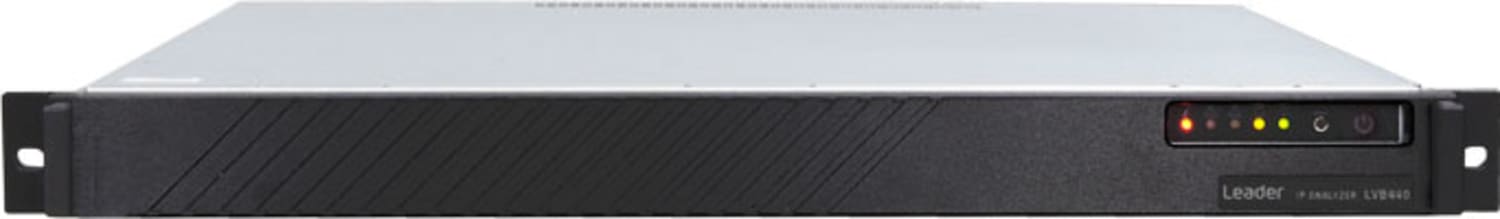

The LVB440 High Bit Rate IP Packet Monitor provides revolutionary monitoring and analysis capabilities for IP media traffic found in outside production, broadcast studios and master control centers allowing for quick troubleshooting and quality improvement. The LVB440 supports ST2110 and ST2022-6 flows at dual 40 Gbps bitrate, and dual 60 Gbps with additional options. Streams from SD to 4K (UHD) can be monitored, with 8K monitoring configurations available. The LVB440 offers familiar visualization tools such as vector scope, picture monitor, audio pairs, and waveform monitor allowing broadcast and production crews to easily manage real-time analysis and troubleshooting of IP-based network audio and video streams. Packet analysis of uncompressed video and audio is available with microsecond accuracy. In addition, up to eight clients can view the analysis data in a standard web browser at the same time for simplified remote operation.

Measurement item

• RTP error average, minimum / maximum per flow
• Average CRC error, minimum / maximum per flow
• IAT average, minimum / maximum per flow
• Bitrate average, minimum / maximum per flow
• PTP delay average, minimum / maximum per flow
• Average packet rate
• DSCP QoS parameter settings per flow
• Packet TTL per flow

Monitoring band

• Monitoring bandwidth LVB440 standard
  • Dual configuration   PORT-A: 40G, PORT-B: 40G
  • Single configuration   PORT-A only: 40G
• Monitoring bandwidth LVB440 + 40G-OPT
  • Dual configuration   PORT-A: 60G, PORT-B: 60G
  • Single configuration   PORT-A only: 80G

Corresponding standard

• ST 2022-6
• ST 2022-7 Redundancy
• ST 2110-20 / 21/30/40
• AES 67
• NMOS IS-04 / 05/07
• PTP v2 SMPTE 2059 / IEEE 1588-2008
