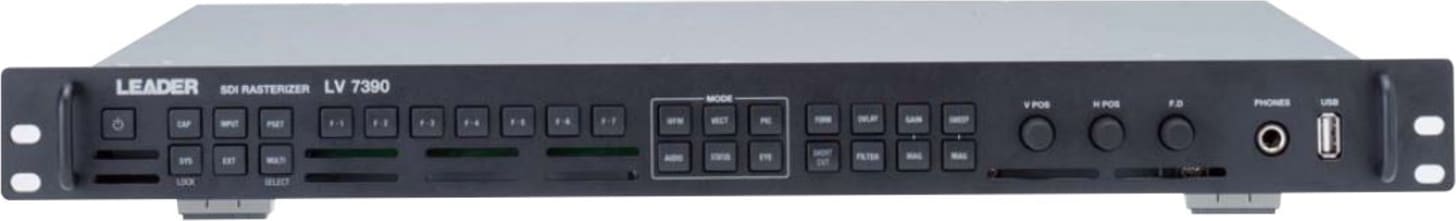

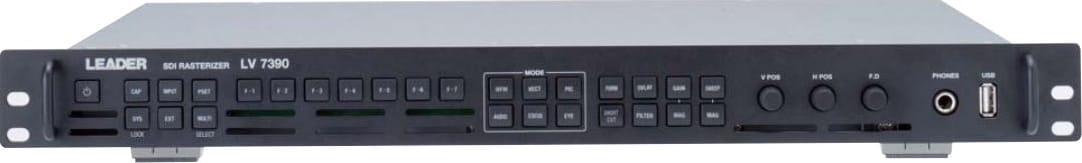

Leader LV7390 - Multi SDI Rasterizer for Up to 4K Video Formats

0 reviews | Model: Leader LV7390

Multi SDI Rasterizer - Mainframe Only (Requires LV7390SER01)

  • Accepts four 3G/HD/SD SDI sources and provides Waveform, Vector, Picture, CINELITE II (Cinelite and Cinezone), Audio, and SDI Status information.
  • CINELITE allows the user to measure the luminance levels at different points in a scene (up to 3 points).
  • CINEZONE uses false colors to indicate luminance levels in a scene and is great for green screen work.
  • Status display provides information on a variety of error monitoring functions, such as CRC, TRS position, Illegal Code, and Line Number SDI errors, Checksum and Parity Ancillary Data errors, BCH, Parity, DBN, Inhibit, and Audio Sample Embedded Audio errors.
  • Error Logs and Alarms.
  • Format and Time Code Display.
  • SDI Analysis: Data Dump with hexadecimal values for YCbCr, EAV and SAV search.
  • User Customizable Display, which can be configured with a USB mouse and saved.

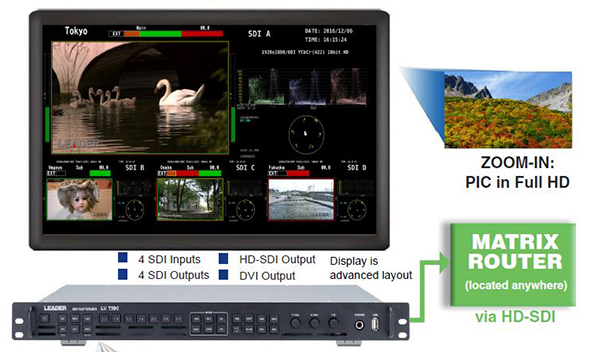

  • 3G/HD SDI and DVI-I Rasterized Outputs can display the information on a separate monitor in Full HD resolution (1920 x 1080).
  • Equivalent Cable Length Measurement for each of the SDI inputs.

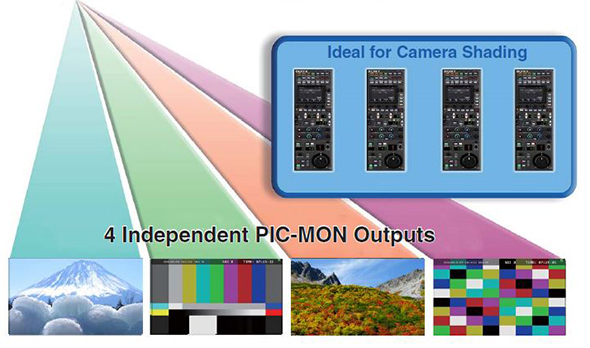

  • Video Engineer (VE) Menus: These menus are ideal for camera shading operations and, when activated, they can easily be accessed with the press of a button.
  • Capture function allows the user to perform a screen capture of the display as a BMP file, which can be saved on to a USB device. This feature can be used for matching cameras and/or documenting a shot (continuity, trouble-shooting).
  • Ethernet connectivity allows for remote control over the web. LV7390 supports TELNET, FTP, HTTP, and SNMP protocols.
  • 60 user-definable presets are available that can be labeled and displayed on the screen.
View Product Details

List Price: $11,600.00
