| I/O Connectors |
| I/O Connectors |
BNC connector
Group A—4 connectors, 8 channels
Group B—4 connectors, 8 channels |
| I/O Switching |
Switching between the connections (4 connectors, 8 channels) Also supports 16 channel digital audio input* |
| Supported Formats |
AES, EBU, Dolby-E (factory option), Dolby-Digital (factory option) |
| Sampling Frequency |
48 kHz |
| Output Signal |
Channels 1 to 8 of the SDI embedded audio, channels 9 to 16 of the SDI embedded audio, the 8 channels that are displayed on the screen (the Dolby feature is used to decode and generate the signals) * The LV 5770SER08 or LV 5770SER09 is required to generate embedded audio signals. |
| Headphone Output |
| Output Connector |
One 6.3 mm stereo jack |
| Digital Audio Display |
| Simul Mode Display Format |
Tiled only |
| Input Signal |
SDI embedded input (this requires an LV 5770SER08 or LV 5770SER09), digital audio input |
| Displayed Channels |
Up to 8 channels |
| Channel Selection |
| SDI Embedded |
Any two groups from groups 1, 2, 3, and 4 |
| Digital Audio Input |
Switchable between A and B (set to the inputs) |
| Display Type |

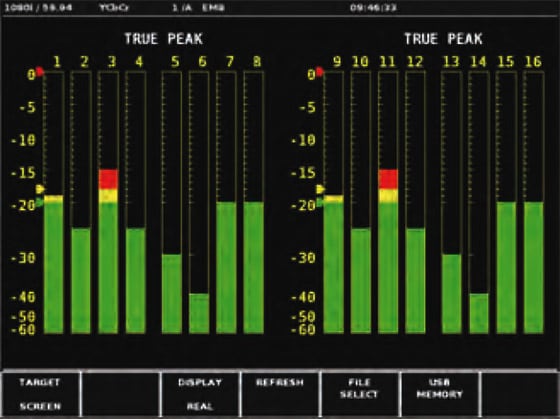

Level meter, Lissajous, surround, status |
| Meter Display |
| Level Meter Display |
| Displayed Channels |
Two or eight |
| Dynamic Range |
-60 dBFS, -90 dBFS |
| Meter Response Mode |
TRUE PEAK, PPM type I, PPM type II, VU |
| Peak Hold Response Mode |
TRUE PEAK, PPM type I, PPM type II |
| Peak Hold Time |
0 to 5.0 s (in 0.5 s steps), HOLD |
| Level Setting |
Reference level, warning level, over level (-40.0 to 0.0 dBFS for each level) |
| Waveform Display |
| Lissajous Display |
| Displayed Channels |
Two (single) or eight (multi) |
| Display Mode |
X-Y or MATRIX |

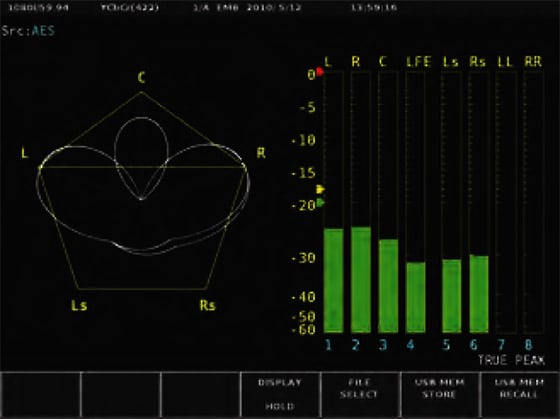

| Surround Display Function |
Displays a graphical representation of a sound field |
| Surround Format |
5.1 |
| Channel Mapping |
L, R, C, LFE, Ls (S), Rs, LL, RR |
| Center Channel |
Format NORMAL, PHANTOM CENTER |
| Gain |
x1, AUTO |
| Correlation Display |
Detects the case of the channel being 180 ° out of phase with its adjacent channels |

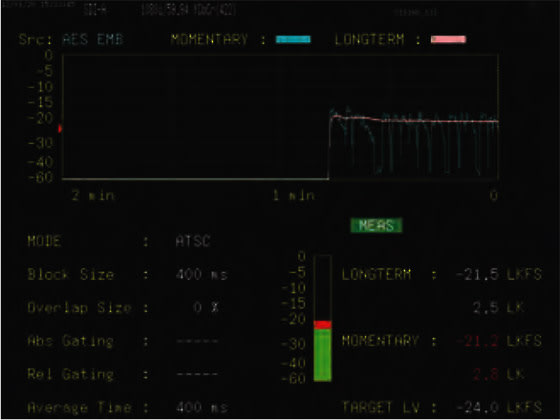

| Loudness Display Function |
Displays a loudness chart plotted over a long period and the loudness values |
| Compliant Standard |
ITU-R BS.1770, ARIB TR-B32, EBU R125, ATSC A/85 |
| Measurement Channel |
| Mode |
Monaural, stereo, 5.1 |
| Channel Selection |
User-defined assignment of eight channels |
| LFE Gain |
0 to 10 times |
| Measurement Trigger |
Manual (panel), timecode / Mute |
| Measurement Mode |
BS1770-2, ARIB, EBU, ATSC |
| Target Level |
BS1770-2 -24.0
LKFS ARIB -24.0
LKFS (±1 LK)
EBU -23.0 LUFS (±1 LU)
ATSC -24.0 LKFS (±2 LK) |
| Average Time |
Momentary Loudness 200 to 10000 ms
ShortTerm Loudness 200 to 10000 ms |

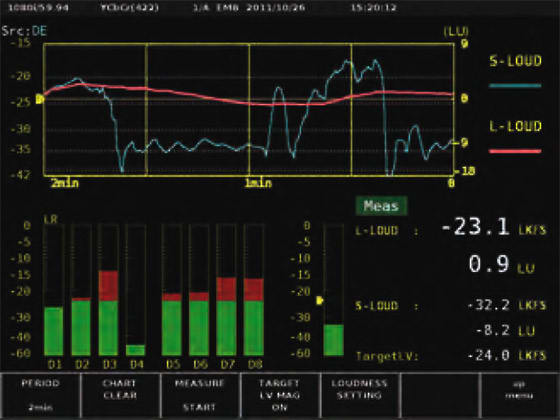

| Chart Display |
Graph display of LongTerm loudness and Momentary or ShortTerm loudness |
| Measurement Time |
2min, 10min, 30min, 1hour, 2hour |
| MAG |
Zoomed display of the target level from -18 to +9 (LK/LU) |
| Numeric Display |
Absolute value and relative value displays of LongTerm loudness and Momentary or ShortTerm loudness |
| LongTerm Loudness |
Displayed in red when the target level range is exceeded |
| Momentary, ShortTerm Loudness |
Displayed in red when the target level is exceeded |
| Status Display |
| Level |
Audio levels are displayed using numbers (dBFS). |
| Error Detection Level |
Over, Clipping, Mute, Parity Error, Validity Error, CRC Error, Code Violation |
| Elapsed Time |
Displays the amount of time that has elapsed since the instrument was reset |
| Channel Status |
Bits Dump display, text display |
| User Data Bits |
Dump display |
| Dolby E Meter Data T |
ext display (factory option) |
| Dolby Digital Meter Data |
Text display (factory option) |
