Leader LV5770SER08 SDI Input

Name: Leader LV5770SER08 SDI Input
Brand: Leader
SKU: LeaderLV5770SER08
Price: 540.00 USD
Availability: InStock

0 reviews | Model: Leader LV5770SER08

Compare

3G/HD/SD-SDI Inputs (2)

3G, HD dual link, HD, and SD-SDI formats are supported
Two inputs can be displayed overlaid or side by side
Two input SDI signals can be generated from two outputs
Also, input A or B, whichever is selected, can be generated as a Pic Moni Output singal

View Product Details

List Price: $540.00

In Stock:

View Payment Options

Recommended for you

Leader LV5770SER08 SDI Input Option

Two-Channel Simultaneous Display
The LV5770A is equipped with a pair of SDI input connectors that support 3G-SDI, HD dual link, HD-SDI, and SD-SDI signals. The two input signals can be displayed simultaneously. Even when one of the input signals is not being displayed, the LV5770A still monitors the undisplayed signal for errors. In addition, the LV5770A is equipped with SDI output connectors that can generate serial reclocked SDI signals from the input SDI signals. The A/B output connector generates the reclocked signal of the SDI signal applied to channel A or channel B. The output that is generated from this connector is switched between the two channels whenever an input key (A or B) is pressed.

Rich Assortment of Display Features
Not only does the LV5770A have essential displays for video signal quality monitoring, such as a video signal waveform display and a vectorscope display, it also has a rich assortment of other display features such as a picture display, 5-bar display, and status display.

Wide Variety of Display
In the video signal waveform display, vectorscope display, and picture display, the LV5770A can display up to two input SDI signals on top of each other or side by side. This makes it suitable for adjusting the gain and black balance values of two video signals. In the video signal waveform and vectorscope displays, the LV5770A can make different input channels easier to see by displaying them using different colors.

Extremely Flexible Display layouts (When optional units are installed)
The 1-screen display feature can be used to show each of the different displays on a single screen, or the 4-screen multi dis-play feature can be used to divide the screen into four areas with a different display shown in each area. The video signal waveform display picture display audio level meter display, and histogram display can be shown on the 1-screen display.

Frame Capture and Screen Capture Features
The LV5770A is equipped with a frame capture feature, which captures single frames of an SDI signal. Captured frame data can be displayed as still-image data on the video signal waveform, vectorscope, and picture displays. In addition, this data can be saved to a USB memory device. The LV5770A is also equipped with a screen capture feature, which captures the entire display as still-image data.

Picture Monitor Output
The LV5770A is equipped with a frame capture feature, which captures single frames of an SDI signal. Captured frame data can be displayed as still-image data on the video signal waveform, vectorscope, and picture displays. In addition, this data can be saved to a USB memory device. The LV5770A is also equipped with a screen capture feature, which captures the entire display as still-image data.

SDI Signal Data Analysis Feature
On the status display, SDI signal transmission errors and various errors related to the embedded audio signal and ancillary data can be detected. The LV5770A has event log, data dump, and external sync signal and SDI signal phase difference display features for analyzing SDI signals. Ancillary data can be displayed along with the embedded line numbers and numbers of the corresponding standards in a list. A variety of detailed ancillary data analyses can be displayed.

Timecode Display
The LV5770A can display the LTC or VITC timecode that is embedded in an SDI signal and the D-VITC timecode of an SDSDI signal. The timecode can also be used as the time stamp in the event log.

Superimposing Closed Caption Data
The closed caption data (EIA-608, EIA-708, VBI) that is embedded in an SDI signal can be superimposed on the picture display.

Standard-Equipped CINELITE II
The CINELITE feature makes it easy to manage the levels of specific points on the picture display. This is useful for adjusting the gain of multiple cameras through the use of the same reference point. The CINEZONE feature makes it possible to check the luminance distribution of the whole picture display at a glance.

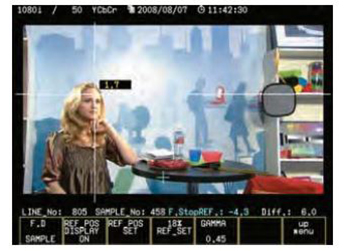

CINELITE Display

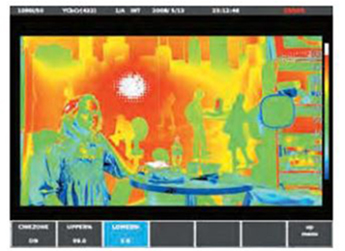

CINEZONE Display
3D Assist Option
3D video signals can be evaluated by applying the video signal for the left eye to channel A and the video signal for the right eye to channel B. The available picture display formats are anaglyph, convergence, overlay, and wipe.

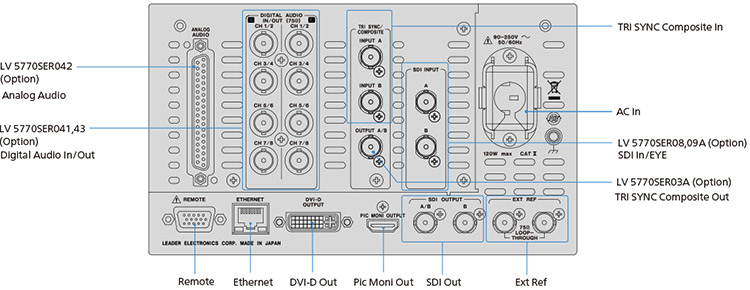

LV5770 Rear Panel

LV5770SER08 SDI INPUT	The 3G, HD dual link, HD, and SD-SDI formats are supported. Two inputs can be displayed overlaid or side by side. Two input SDI signals can be generated from two outputs. Also, input A or B, whichever is selected, can be generated as a Pic Moni Output signal.
LV5770SER09 SDI INPUT/EYE	In addition to the LV5770SER08 features, eye patterns can also be displayed. (The eye pattern display can be used on one of the two input SDI signals that you select.)
LV5770SER41 DIGITAL AUDIO (Loudness)	Embedded audio and external digital audio are supported. Loudness Measurement for One Signal (The eight I/O connectors - 16 channels - are switched between input and output in groups of four connectors - 8 channels.)
LV5770SER42 ANALOG AUDIO	Up to 8 channels of analog audio are supported. (The LV5770 must be combined with the LV5770SER41/43 unit.)
LV5770SER43 DIGITAL AUDIO (Loudness with 8ch Level Meter)	16 channe Digital Audio input (Future) Loudness Measurement for Two Signals
LV5770SER03A TRI SYNC COMPOSITE	TRI SYNC and composite signals are supported.
