Leader LV5770A - Multi-SDI Monitor, Waveform Monitor for 3G/HD/SD SDI Signals

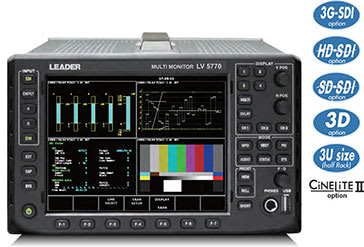

The LV5770 is a multi monitor that can be customized with a variety of units to meet your needs. The LV5770 is highly cost effective because it supports 3G-SDI, HD dual link, HD-SDI, and SD-SDI signals. The LV5770 has a variety of features including simultaneous monitoring of two SDI signals, SDI signal frame capture, lip sync measurement, Pic Moni Output, Equipped with loudness measurement and a wide variety of other features.


Key Features

• XGA Display and DVI-D Output
  The LCD display is a 6.3-inch XGA screen (the effective resolution is 1024x768). In addition, the screen images are transmitted from a DVI-D connector that supports single link TMDS, so the screen image can be displayed larger than is possible on the LV5770 through the use of an external LCD monitor display.
• Pic Moni Output
  The input SDI signal can be generated as a Pic Moni Output signal. (This requires the LV5770SER08 option or the LV5770SER09 option.) However, analog composite input (LV5770SER03A) cannot be generated as a Pic Moni Output signal.
• Frame Capture and Screen Capture Features
  The LV5770 is equipped with a frame capture feature, which captures single frames in an SDI signal. Frames can be captured manually or automatically when errors occur. This feature is suitable for performing data analysis when errors occur. The LV5770 is also equipped with a screen capture feature, which captures the entire display as still-image data.
• External Control Connectors
  The LV5770 has two external control connectors: an Ethernet port and a remote control connector. The Ethernet interface can be used to control the LV5770 remotely over TELNET, HTTP, perform file transfers over FTP, control the LV5770 remotely and detect errors over SNMP, as well as perform other operations all from the connected PC. The remote control connector can be used to load presets, switch the input signal, and transmit errors.
• Headphone Output (6.3 mm)
  The headphone jack can be used to monitor audio. (This requires the LV5770SER41/43 optional unit.)
• Field Frequency Deviation Display (Factory Option)
  *The LV5770SER08 and LV5770SER09 cannot be installed in the LV5770 at the same time.

Display Examples

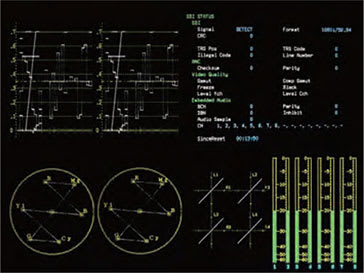

2-channel simultaneous display (with the LV5770SER08, LV5770SER09, and LV5770SER41/43 installed)

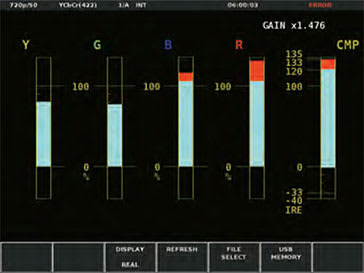

5 bar display (with the LV5770SER08 and LV5770SER09 installed)

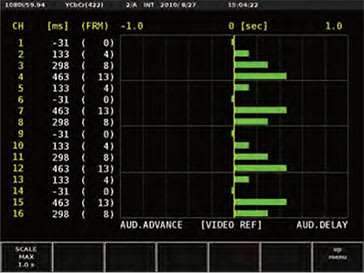

Lip sync display (when the LV5770SER41 and LT 4400SER01 are installed)

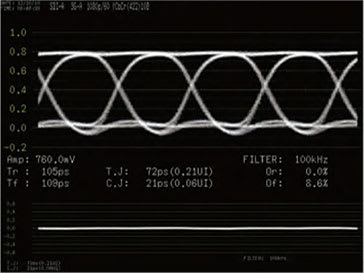

Eye pattern display (with the LV5770SER09 installed)

REAR PANEL

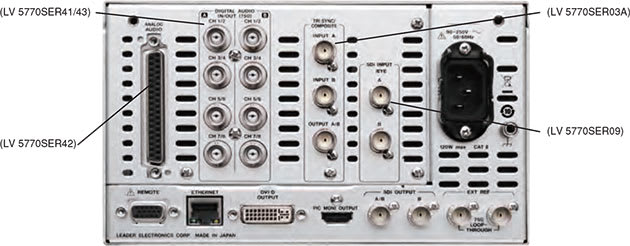

Example of an LV5770 with an LV5770SER03A, LV5770SER09,
LV5770SER41, and LV5770SER42 installed.
(Connect Pic Moni Output to a monitor that supports HDMI input.)

• Two-Channel Simultaneous Display
  The LV5770A is equipped with a pair of SDI input connectors that support 3G-SDI, HD dual link, HD-SDI, and SD-SDI signals. The two input signals can be displayed simultaneously. Even when one of the input signals is not being displayed, the LV5770A still monitors the undisplayed signal for errors. In addition, the LV5770A is equipped with SDI output connectors that can generate serial reclocked SDI signals from the input SDI signals. The A/B output connector generates the reclocked signal of the SDI signal applied to channel A or channel B. The output that is generated from this connector is switched between the two channels whenever an input key (A or B) is pressed.
• Rich Assortment of Display Features
  Not only does the LV5770A have essential displays for video signal quality monitoring, such as a video signal waveform display and a vectorscope display, it also has a rich assortment of other display features such as a picture display, 5-bar display, and status display.
• Wide Variety of Display
  In the video signal waveform display, vectorscope display, and picture display, the LV5770A can display up to two input SDI signals on top of each other or side by side. This makes it suitable for adjusting the gain and black balance values of two video signals. In the video signal waveform and vectorscope displays, the LV5770A can make different input channels easier to see by displaying them using different colors.
• Extremely Flexible Display layouts (When optional units are installed)
  The 1-screen display feature can be used to show each of the different displays on a single screen, or the 4-screen multi dis-play feature can be used to divide the screen into four areas with a different display shown in each area. The video signal waveform display picture display audio level meter display, and histogram display can be shown on the 1-screen display.
• Frame Capture and Screen Capture Features
  The LV5770A is equipped with a frame capture feature, which captures single frames of an SDI signal. Captured frame data can be displayed as still-image data on the video signal waveform, vectorscope, and picture displays. In addition, this data can be saved to a USB memory device. The LV5770A is also equipped with a screen capture feature, which captures the entire display as still-image data.
• Picture Monitor Output
  The LV5770A is equipped with a frame capture feature, which captures single frames of an SDI signal. Captured frame data can be displayed as still-image data on the video signal waveform, vectorscope, and picture displays. In addition, this data can be saved to a USB memory device. The LV5770A is also equipped with a screen capture feature, which captures the entire display as still-image data.
• SDI Signal Data Analysis Feature
  On the status display, SDI signal transmission errors and various errors related to the embedded audio signal and ancillary data can be detected. The LV5770A has event log, data dump, and external sync signal and SDI signal phase difference display features for analyzing SDI signals. Ancillary data can be displayed along with the embedded line numbers and numbers of the corresponding standards in a list. A variety of detailed ancillary data analyses can be displayed.
• Timecode Display
  The LV5770A can display the LTC or VITC timecode that is embedded in an SDI signal and the D-VITC timecode of an SDSDI signal. The timecode can also be used as the time stamp in the event log.
• Superimposing Closed Caption Data
  The closed caption data (EIA-608, EIA-708, VBI) that is embedded in an SDI signal can be superimposed on the picture display.
• Standard-Equipped CINELITE II
  The CINELITE feature makes it easy to manage the levels of specific points on the picture display. This is useful for adjusting the gain of multiple cameras through the use of the same reference point. The CINEZONE feature makes it possible to check the luminance distribution of the whole picture display at a glance.
• 3D Assist Option
  3D video signals can be evaluated by applying the video signal for the left eye to channel A and the video signal for the right eye to channel B. The available picture display formats are anaglyph, convergence, overlay, and wipe.

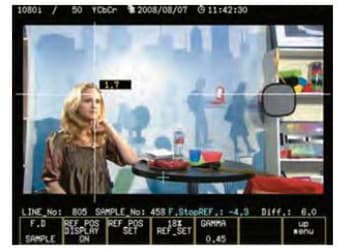

CINELITE Display

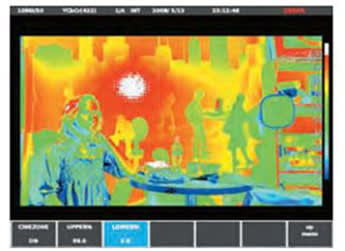

CINEZONE Display
