LV5600-SER02 is a unit that can display various SDI signals.


• Video analysis function

  Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, the CIE chromaticity diagram and CINELITEII., video signal quality (QoE) freezes error, error black, gamut error detection, etc. are equipped as standard equipment.


• Audio analysis function

  The audio signal embedded in SDI signals can be displayed on a level meter.
  * Lissajous, surround and status can be displayed by adding LV5600-SER03.


• SDI signal data analysis function

  The status display has an error detection function of CRC and embedded sound. It also has an event log, data dump, phase difference measurement functions, and can analyze SDI signals.


• Screen capture function

  A screen capture function to capture the display screen as still image data and a frame capture function to capture 16 frames of data are equipped. The captured data can be saved in BMP format in comparison with the input signal, as well as the display on the main body, and thus confirmation with the personal computer is possible.


• Frame Capture function

  A flame capture function to capture 16 frames of the SDI signals is equipped. There are two methods; one is to import them manually and another is to take them automatically when an error occurs.
  *Only one frame is captured when an error occurs.


• Frame capture viewer (free Windows software)

  Search for data captured by the frame capture function, error search, and export to CSV are possible.


• Time code display

  The time code superimposed on SDI signals and can be displayed. The time code can also be used as the timestamp of the event log.


• Input/output terminal

  • SDI input terminal BNC connector 4 terminal
  • SDI output terminal BNC connector 4 terminal (main unit standard equipment)
  • Output reclock signal - The SDI signal of the input terminal is reclock output to the output terminals, respectively.
  • Output terminal 1 can switch the signal of the input terminal and can reclock output.


• Audio level meter (8ch)

  • Embedded audio SMPTE ST 299, SMPTE ST 272
    48 kHz/24 bit/L-PCM
  • Synchronization condition All are synchronized with the video clock. All input SDI signals are synchronized.
  *When LV5600-SER03/LV7600-SER03 is added, it corresponds to 16 channels.

Closed caption display function

CEA-608, CEA-708 closed caption, Teletext, OP47 subtitle superimposed on SDI signal can be decode displayed.

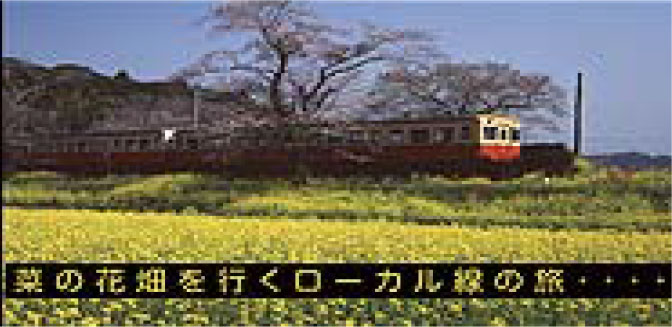

• Japanese subtitle simplified display function

  Japanese subtitles are simply displayed on the picture screen (HD, SD, analog), portable subtitles are selected/displayed. Language 1 and 2 are selected/displayed.)
  Approved standard.



CIE chart display function

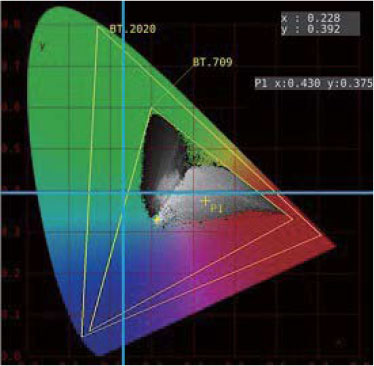

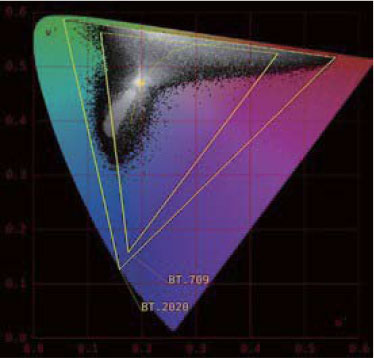

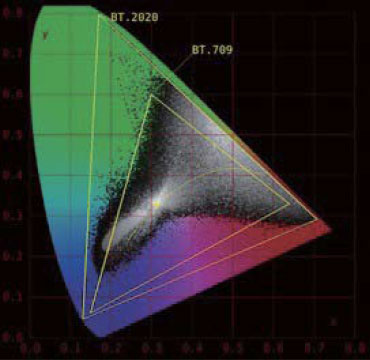

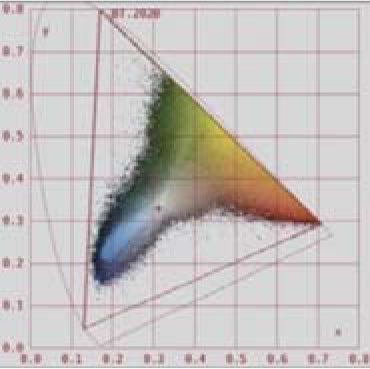

This is a chromaticity diagram display function corresponding to colorimetry ITU- R BT. 601, ITU- R BT. 709, ITU- RBT. 2020. The display mode corresponds to CIE 1931 (xy display) and CIE 1976 (u'v’ display). Since the CIE chart display function can display two color gamuts, the function can be used to suppress the color gamut of BT.709 using the equipment compatible with BT.2020, and to confirm the content that exceeds the color gamut of BT.709. In color display, the chromaticity point is displayed using the color (on the picture) in the video signal. The chromaticity point can be measured at the point with the cursor.

Eye pattern display

The eye pattern waveform, jitter waveform of SDI signal, and the measurement result of each parameter can be displayed. Only input terminal 1 corresponds to eye pattern display.
  LV5600 Option List


Model Name	Part Number	Description
SDI INPUT	LV5600-SER01	SD, HD, 3G SDI input *1
SDI INPUT/EYE	LV5600-SER02	SD, HD, 3G SDI input and eye pattern display *1
DIGI/ANA AUDIO	LV5600-SER03	Digital/analog Audio input/output and display
DOLBY	LV5600-SER04	Dolby Digital, Dolby E decode function *2
IP INPUT	LV5600-SER05	IP INPUT *1

*¹ For LV5600, either LV5600-SER01 or LV5600-SER02 is selected, but either one of LV5600-SER01, LV5600-SER02, LV5600-SER05 is necessary. Either LV5600-SER01 or LV5600-SER02 is selected for LV7600, but either one of LV5600-SER01, LV5600-SER02, LV7600-SER05 is necessary.
*² LV5600-SER03 is required for LV5600. LV7600 requires LV7600-SER03.


Model Name	Part Number	Description
AUDIO	Equipped with LV5600-SER03	AUDIO display function
CLOSED CAPTION	Standard equipment	Japanese subtitles, EIA-608, 708, TELETEXT
CIE	Standard equipment	CIE chart display function
HDR	LV5600-SER23	HDR measurement function
TSG	LV5600-SER24	SDI signal generation function
FOCUS ASSIST	LV5600-SER25	Focus assist display function
LAYOUT	LV5600-SER26	Customizable layout function
TALLY	LV5600-SER27	ID/iris/tally display function
4K	LV5600-SER28	4K video signal correspondence function
12G-SDI	LV5600-SER29	12G-SDI compatible *

*LV5600 requires LV5600-SER28.
