Leader LV5490SER10 Noise Meter Option for LV5490 and LV5480

Name: Leader LV5490SER10 Noise Meter Option for LV5490 and LV5480
Brand: Leader
SKU: LeaderLV5490SER10
Price: 4100.00 USD
Availability: InStock

0 reviews | Model: Leader LV5490SER10

Leader LV5490SER10 Noise Meter Option, Display

Compare

Noise Meter - Signal to Noise measurements for SDI cameras for LV5490 and LV5480

Noise Meter option
Supports various formats
Noise measurement frequency band
Full digital processing
Measurement window
Alarm function
Direct measurement
For LV5490 and LV5480

View Product Details

List Price: $4,100.00

In Stock:

View Payment Options

Recommended for you

Leader LV5490SER10 Noise Meter Option for LV5490 and LV5480

The new LV5490SER10 video noise meter option allows measurement of UHD/HD/SD noise in luminance or RGB component chroma channels. To operate LV5490SER10, one of LV5490SER01, LV5490SER02, LV5490SER06, LV5490SER08 is required for input.

MAIN FEATURES

Supports various formats
Measurement is possible in all formats that can be input to the LV5490.(IP/12G/3G/HD/SD) ※The corresponding SDI format conforms to LV5490 specification.
Noise measurement frequency band
An integral low-pass filter allows elements of the high frequency band to be removed at the time of noise measurement.
Full digital processing
Data obtained from the input SDI signal is converted directly without intermediate analog processing, allowing highly accurate and highly stable measurement.
Measurement window
On the picture display screen, you can set a window to measure noise. You can set the size of the window, region by 1 pixel or 1 line. If the video level is not flat due to the influence of the lens etc., you can select the measurement window as flat as possible and measure it.
* Although the whole video area can be selected in the measurement window, depending on the processing method of the input video signal, the surrounding noise measurement value may not be accurate. It is recommended to measure within several% using the measurement window function.
Alarm function
An automatic alarm can be activated when the noise level exceeds a user-set threshold.
Direct measurement

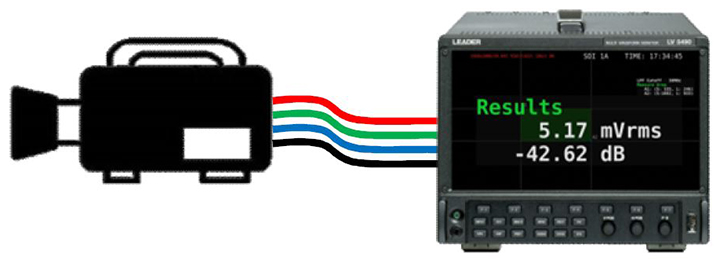

You can measure the noise level value simply by connecting the camera to the LV5490.

Combinations of Options

Option model	Name	Combination pattern
		01	02	03	04	05	06	07	08	09	10
LV5490-SER01	SDI INPUT	●		●
LV5490-SER02	SDI INPUT / EYE		●		●
LV5490-SER03	DIGITAL AUDIO			●	●	●		●		●
LV5490-SER04	FOCUS ASSIST	○	○	○	○	○	○	○	○	○	○
LV5490-SER05	CIE DIAGRAM	○	○	○	○	○	○	○	○	○	○
LV5490-SER06	12G-SDI INPUT					●	●	●	●
LV5490-SER07	HDR	○	○	○	○	○	○	○	○	○	○
LV5490-SER08	IP (NMI)									●	●
LV5490-SER09	12G-SDI EYE					○	○
LV5490-SER10	NOISE METER	○	○	○	○	○	○	○	○	○	○
LV5480-SER20	4K (LV5480 Only)	○	○	○	○	○	○	○	○	○	○
LV5480-SER21	TSG (LV5480 Only)	○	○	○	○	○	○	○	○	○	○

●：Installed
○：Installed or not installed
