Leader LV5480 - Multi Waveform Monitor (Mainframe Only)

Name: Leader LV5480 - Multi Waveform Monitor (Mainframe Only)
Brand: Leader
SKU: LeaderLV5480
Price: 18300.00 USD
Availability: InStock

0 reviews | Model: Leader LV5480

Compare

Multi Monitor - Mainframe Only (Requires LV5490SER01 or LV5490SER02) Upgradeable to 4K

Upgradeable to 4K video format compliance for Digital Cinema (4096 x 2160) or Broadcast (3840 x 2160) based on 3G Dual Link, 3G Quad Link, and HD Quad Link
Can display two 4K signals (3G-SDI Quad Link or HD Quad Link) or four 4K signals (3G-SDI Dual Link) (optional on LV5480).
It can also display two sets of HD-SDI dual link signals at the same time.
Four 3G/HD/SD SDI channels can be monitored simultaneously, ideal for camera matching.
There are four additional SDI input/output connectors. If these connectors are set up as inputs, then the LV5480 or LV5490 can receive up to eight SDI input signals.
Built-In 9-inch Full High Definition (LED Backlit) Display (1920 x 1080) for superb picture representations.
Accepts Square Division and 2-sample Interleave Processing Methods (optional on LV5480).
DVI and HD-SDI Rasterizer Output and SDI re-clocked output.
4K/HD Pattern Generator function, includes 75%-100% color bars, ramp, cross-hatch (optional on LV5480)
Waveform, Vector, Picture can be displayed individually or in combination.
CINELITE® II (Cinelite® and Cinezone®) available as standard feature.
CIE1931 Chromaticity Diagram based on the standard BT.2020 is available as an option.
Focus Assist (patent pending) allows for a more accurate focus of details and it’s available as an option.
Custom User-Defined Layout. Allows the user to change and customize the size of each of the display screens.
SDI signal data analysis function allows for cable length measurement, CRC error, embedded audio error, event log, data dump, timing display, etc.
Frequency Deviation is standard. This feature detects any difference in the frequency of each SDI input signal.
4-input Phase Measurement checks the difference between a reference SDI signal or an external reference signal and the other input signals.
Digital Audio Option. De-embeds SDI audio signals and displays Lissajous, surround sound and meter displays. There will be a Dolby® analysis option in the future.
16 channels of audio display are available from one SDI signal.
Eye Pattern & Jitter Measurement capabilities are available as an option.
Frame Capture function captures single frames in an SDI signal, manually or automatically, when error occurs.
LTC or VITC that is embedded in the SDI signal and the D-VITC of an SD signal can be displayed.
External remote connector available to load presets, switch input signals, and transmit alarms.
RS-422/485 connector comes installed in the unit but the function to display a camera ID using serial communication is an option and needs to be custom-ordered due the different camera manufacturers.

View Product Details

List Price: $18,300.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Rack Mounts

for the Leader LV5480

Leader LC-2190 Blank panel for rackmount adapter LR2490

Catalog: LC2190

(0)

In Stock!

Add to Cart

Leader LR-2490 Rackmount adapter for waveform monitor LV5900

Catalog: LR2490

(0)

In Stock!

Add to Cart

Leader LV5480 - Multi Waveform Monitor (Mainframe Only)

Upgradeable to 4K Video Format
Full High Definition LCD
Eight Inputs and Simultaneous Four Input Display
Standard-Equipped CINELITE Ⅱ
Built-in 9-inch LCD monitor is Full HD (1920 x 1080)
Pattern Generator Function with Embedded Audio and Reclock Output
Equivalent Cable Length Measurement

The LV5480 is a two waveform monitor (Mainframe Only) upgradeable to support 4K video signals. It can display up to four channels of 3G-SDI input signals simultaneously. There are four dedicated input connectors with cable length measurement capability, and four additional connectors can be configured as inputs or outputs, making a total of eight inputs, if needed. The built-in 9-inch LCD monitor is Full HD (1920 x 1080) with wide viewing angle and high color reproduction.

* The LV5480 can analyze and process 4K signals with the installation of a software code. Other 4K capabilities, such as 4K/HD Pattern Generator and CIE1976/1931 Color Chart can also be easily installed through software codes.

12G/3G/HD/SD SDI WAVEFORM MONITOR (4K IMAGE TRANSMISSION)

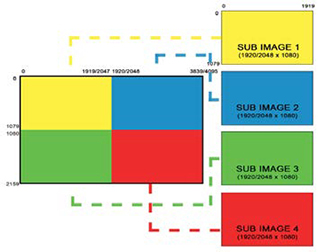

Square Division Method

Full image is divided into four quadrants

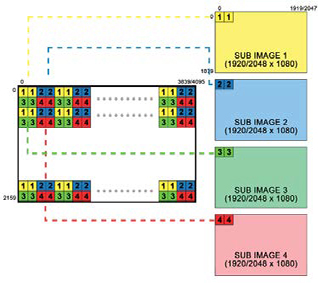

Two-Sample Interleave Method

Two consecutive pixels are sent to one of the four sub-images at a time.

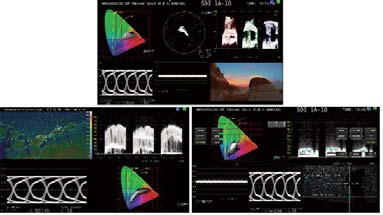

CUSTOMIZABLE FREE USER LAYOUT

User can customize the size of each of the displays within the screen.

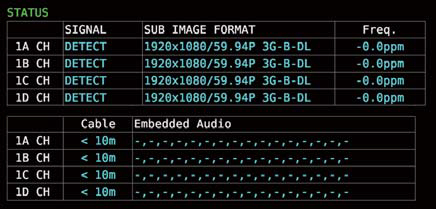

FREQUENCY DEVIATION MEASUREMENT

Measures the frequency deviation and the field frequency of the input signals.

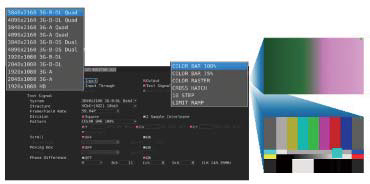

4K PATTERN GENERATOR with EMBEDDED AUDIO

Different several 4K and HD video patterns can be generated including embedded audio.

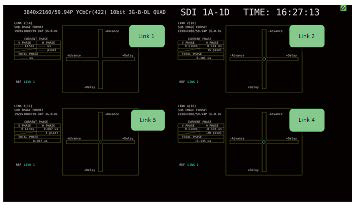

4-INPUT PHASE DIFFERENCE MEASUREMENT

Allows to measure the phase difference of each 3G-SDI signal

SD Video Signal Formats and Standards
Color System	Quantization	Image	Field Frequency / Scanning	Compliance Standard
YCbCr 4:2:2	10 bits	720 x 487	59.94/I	SMPTE ST259
		720 x 576	50/I
HD Video Signal Formats and Standards
Color System	Quantization	Image	Field Frequency / Scanning	Compliance Standard
YCbCr 4:2:2	10 bits	1280 x 720	60, 59.94, 50, 30, 29.97, 25, 24, 23.98/P	SMPTE ST292-1 SMPTE ST296
		1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST292-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
3G-A Video Signal Formats and Standards
Color System	Quantization	Image	Field Frequency / Scanning	Compliance Standard
YCbCr 4:2:2	10 bits	1920 x 1080	60, 59.94, 50/P	SMPTE ST274 SMPTE ST425-1
		2048 x 1080	60, 59.94, 50, 48, 47.95/P	SMPTE ST425-1 SMPTE ST2048-2
	12 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
YCbCr 4:4:4	10 bits	1280 x 720	60, 59.94, 50, 30, 29.97, 25, 24, 23.98/P	SMPTE ST296 SMPTE ST425-1
		1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
	12 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
RGB 4:4:4	10 bits	1280 x 720	60, 59.94, 50, 30, 29.97, 25, 24, 23.98/P	SMPTE ST296 SMPTE ST425-1
		1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
	12 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
3G-B-DL and HD (DL) Video Signal Formats and Standards
Color System	Quantization	Image	Frame (Field) Frequency/Scanning	Compliance Standard
YCbCr 4:2:2	10 bits	1920 x 1080	60, 59.94, 50/P	SMPTE ST274 SMPTE ST372 SMPTE ST425-1
		2048 x 1080	60, 59.94, 50, 48, 47.95/P	SMPTE ST372 SMPTE ST425-1 SMPTE ST2048-2
	12 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST372 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST372 SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
YCbCr 4:4:4	10 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST372 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST372 SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
	12 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST372 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST372 SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
RGB 4:4:4	10 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST372 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST372 SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
	12 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST372 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
			30, 29.97, 25, 24, 23.98/PsF
		2048 x 1080	30, 29.97, 25, 24, 23.98/P	SMPTE ST372 SMPTE ST425-1 SMPTE ST2048-2
			30, 29.97, 25, 24, 23.98/PsF
When these signals are displayed, phase differences of up to 100 clocks (approx. 1.34µs) between HD (DL) links are automatically corrected.
3G-B-DS Video Signal Formats and Standards
Color System	Quantization	Image	Frame (Field) Frequency/Scanning	Compliance Standard
YCbCr 4:2:2	10 bits	1920 x 1080	60, 59.94, 50/I	SMPTE ST274 SMPTE ST425-1
			30, 29.97, 25, 24, 23.98/P
		1280 x 720	30, 29.97, 25, 24, 23.98/PsF	SMPTE ST296 SMPTE ST425-1
			60, 59.94, 50, 30, 29.97, 25, 24, 23.98/P
3G (DL) Video Signals Formats and Standards
Color System	Quantization	Image	Frame (Field) Frequency/Scanning	Compliance Standard
YCbCr 4:2:2	SQUARE DIVISION TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-3 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-3 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
	2-SAMPLE INTERLEAVE TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-3 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/P	SMPTE ST425-3 SMPTE ST2036-1
When these signals are displayed, phase differences of up to 100 clocks (approx. 0.67µs) between links are automatically corrected.
HD (QL) Video Signal Formats and Standards
Color System	Quantization	Image	Frame (Field) Frequency/Scanning	Compliance Standard
YCbCr 4:2:2	SQUARE DIVISION TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	—
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	—
			30, 29.97, 25, 24, 23.98/PsF	—
When these signals are displayed, phase differences of up to 100 clocks (approx. 0.67µs) between links are automatically corrected.
3G (QL) Video Signal Formats and Standards
YCbCr 4:2:2	SQUARE DIVISION TRANSMISSION SYSTEM
	10 bits	3840 x 2160	60, 59.94, 50/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	60, 59.94, 50, 48, 47.95/P	SMPTE ST425-5 SMPTE ST2048-1
	12 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
			30, 29.97, 25, 24, 23.98/PsF	—
YCbCr 4:4:4	SQUARE DIVISION TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
			30, 29.97, 25, 24, 23.98/PsF	—
	12 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
			30, 29.97, 25, 24, 23.98/PsF	—
RGB 4:4:4	SQUARE DIVISION TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
			30, 29.97, 25, 24, 23.98/PsF	—
	12 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
			30, 29.97, 25, 24, 23.98/PsF	—
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
			30, 29.97, 25, 24, 23.98/PsF	—
YCbCr 4:2:2	2-SAMPLE LEAVE TRANSMISSION SYSTEM
	10 bits	3840 x 2160	60, 59.94, 50/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	60, 59.94, 50, 48, 47.95/P	SMPTE ST425-5 SMPTE ST2048-1
	12 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
YCbCr 4:4:4	2-SAMPLE LEAVE TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
	12 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
RGB 4:4:4	2-SAMPLE LEAVE TRANSMISSION SYSTEM
	10 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
	12 bits	3840 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2036-1
		4096 x 2160	30, 29.97, 25, 24, 23.98/P	SMPTE ST425-5 SMPTE ST2048-1
When these signals are displayed, phase differences of up to 100 clocks (approx. 0.67µs) between links are automatically corrected.
GENERAL SPECIFICATIONS
Environmental Conditions
Operating Temperature		0 to 40^o C
Operating Humidity Range		85% RH or less (no condensation)
Optimal Temperature		10 to 30^o C
Operating Environment		Indoors
Elevation		Up to 2000m
Overvoltage Category		II
Pollution Degree		2
Power Requirements
Voltage		90 to 250 V_AC
Frequency		50/60 Hz
Power Consumption		150W max.
Dimensions (excluding protrusions)		223mm (W) x 172mm (H) x 260mm (D) 8.78″ (W) x 6.77″ (H) x 14.17″ (D)
Weight (including options, excluding accessories)		5.6 kg (max)
Accessories		(1) Power Cord, (1) Cover/inlet stopper, (1) 15-pin D-sub connector, (1) 15-pin D-sub connector cover, (1) Instruction Manual

Test Equipment General Attributes
Unique Features	Supports eight 3G/HD/SD-SDI Inputs. 4K Upgradeable
Warranty	2 YEARS
Interfaces I/O	LAN / Ethernet, USB
Product Weight	4.72 LBS
Product Height	7.44 IN
Product Width	8.77 IN
Country of Origin	Japan

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Leader LV5480 - Multi Waveform Monitor (Mainframe Only)

Recommended for you

Accessories

for the Leader LV5480

Leader LC-2190 Blank panel for rackmount adapter LR2490

Leader LR-2490 Rackmount adapter for waveform monitor LV5900

Leader LV5480 - Multi Waveform Monitor (Mainframe Only)

12G/3G/HD/SD SDI WAVEFORM MONITOR (4K IMAGE TRANSMISSION)

Square Division Method

Two-Sample Interleave Method

CUSTOMIZABLE FREE USER LAYOUT

FREQUENCY DEVIATION MEASUREMENT

4K PATTERN GENERATOR with EMBEDDED AUDIO

4-INPUT PHASE DIFFERENCE MEASUREMENT

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
