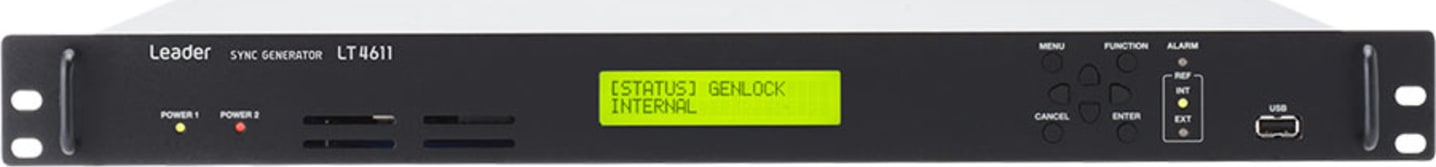

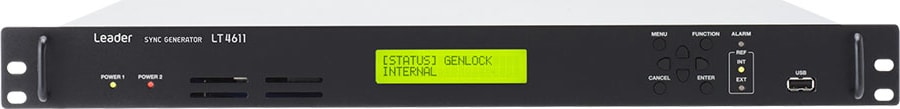

Features
Triple rate SDI compatible
Standard SDI signal output is compatible with 12G-SDI (4K), 3G-SDI (level A, level B), HD-SDI (including dual link), and SD-SDI. Independent dual-lines output is available for SDI signal output terminal, which is capable of individual setting of pattern and phase. (single-line only for 3G-SDI level B and HD dual link)
12G-SDI compatible
SDI signal output is compatible with 12G-SDI(4K), 3G-SDI (level A, level B), HD-SDI (including dual link), and SD-SDI, and four outputs of SDI signal output terminals are available. While the formats are common for four outputs, pattern and phase can be set individually. (dual-lines only for 3G-SDI level B and HD dual link)
Superimposing ID characters
ID characters can be superimposed on any arbitrary position on the screen. Lateral scroll or flashing display are available for checking freeze state.
Superimposing logo mark
Logo mark converted into four gradations of monochrome data from the bit map with size of maximum 320 (dot) x 240 (line) (GVGA size) can be superimposed on any arbitrary position on the screen.
Safety area marker
Safety area marker of 90% and 80% can be superimposed on the screen, and an aspect marker of 4:3 cans also be superimposed for 3G, HD.
Pattern scroll
Function to scroll a pattern in eight directions is available. Speed is also changeable.
Superimposing embedded audio
Embedded audio of 32 channels (link A, link B, each 4 ch x 4 groups) can be superimposed for 3G-B, and 16 channels (4 ch x 4 group) for 3G-A, HD and SD. Frequency and level, etc. can be set for each channel.
Lip Sync pattern
Lip Sync pattern in which video image and sound are synchronized is output. Using our LV 5770 (A and others enables accurate measuring of the Lip Sync of the video image and sound on SDI signal.
GENLOCK function
Synchronizing to NTSC/PAL black burst signal and HDTV triple-level synchronized signal is available. It is also compatible with NTSC/PAL black burst signal with field reference pulse, and NTSC black burst signal with 10 field ID. In addition, the stay-in synchronizing function is installed for the occurrence of abnormalities in the GENLOCK input.
Analog black output
Timing is changeable with independent 6-lines of analog black synchronized signal output installed. It is also compatible with NTSC/PAL black burst signal with field reference pulse, and NTSC black burst signal with 10 field ID.
Word clock output
Single-line output is available for the word clock of 48 kHz synchronized with video signal.
AES/EBU serial digital audio output
Single-line output is available for the AES/EBU signal of 48 kHz of sampling frequency synchronized with video signal. In addition, single-line of AES/EBU signal in mute state is available.
Real time clock
The clock can be kept counting even when the power supply is turned off thanks to battery back-up of the real time clock. The clock can be also kept counting even without GPS reception when LT4611SER01 is installed.
Ethernet
Standard support of SNMP enables easy integration into network environment.
Preset function
A maximum of ten types of preset can be internally saved. Registered useful preset can be called anytime during the operation to start-up with the identical setting anytime.
External memory compatible
Logo data and preset data can be loaded and saved by using USB memory from the front panel.
Duplex power supply
Duplex power supply is available by integrating two power supply units. Alarm can be displayed on the main panel screen and alarm can be output by SNMP in case of an abnormal state of the power supply unit.
Options
| Model Number |
Model name |
| LT4610SER01 |
(SYNC 3 OUT ADD) Adds 3 Sync Outputs Option for LT4611 |
| LT4610SER02 |
(SDI OUTPUT) SDI Outputs Option for LT4611 |
| LT4610SER03 |
(AUDIO OUTPUT) Audio Outputs Option for LT4611 |
Rear Panel
![]()
