| Compliant Standards |
| SDI embedded audio |
| 3G, HD, HD(DL) |
SMPTE ST 299 |
| SD |
SMPTE ST 272 |
| SDI |
Payload ID SMPTE ST 352 |
| Output |
| SDI OUTPUT |
| Connector |

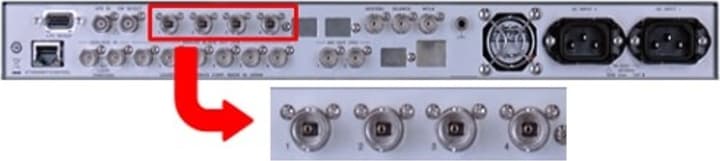

4 x BNC connector |
| 12G, 3G-A, HD, SD |
4 outputs |
| 3G-B, HD(DL) |
2 outputs |
| Output Impedance |
75Ω |
| Output Amplitude |
800mVp-p±10％ |
| Output Return Loss |
| 5MHz-1.485GHz |
≥15dB |
| 1.485-2.97GHz |
≥10dB |
| 2.97-6GHz |
≥ 7dB |
| 6-12GHz |
≥ 4dB |
| Overshoot |
Less than 10％ |
| Rise and Fall times |
| 3G |
≤135ps (20 to 80％) |
| HD, HD(DL) |
≤270ps (20 to 80％) |
| SD |
≤ 0.4ns to 1.5 ns (20 to 80％) |
| DC Offset |
0±0.5V |
| SDI Video Output |
| SDI Electrical Characteristics |
| Bit rate |
| 12G |
11.880Gbps, 11.880/1.001Gbps |
| 3G |
2.970Gbps, 2.970/1.001Gbps |
| HD, HD(DL) |
1.485Gbps, 1.485/1.001Gbps |
| SD |
270Mbps |
| Timing Adjustment |
| Adjustment |
Range Entire frame |
| Adjustment Unit |
| V |
Lines |
| H |
Clocks (148.5MHz, 148.5/1.001MHz, 74.25MHz, 74.25/1.001MHz, 27MHz) |
| Test Pattern |
| 12G |
UHDTV Multi format color bar (ARIB STD-B66) ※ Saved as a Natural Picture. |
| 12G, 3G, HD |
100% color bars, 75% color bars, multi format color bars (ARIB STD-B28, pattern 2 area can be set to 100% white, 75% white or +I), Flat field white 100%, black 0%, red 100%, green 100%, blue 100% |
| SD |
| 525i/59.94 |
100% color bars, 75% color bars, SMPTE color bars, flat field white 100%, black 0%, red 100%, green 100%, blue 100% |
| 625i/50 |
100% color bars, EBU color bars, BBC color bars, flat field white 100%, black 0%, red 100%, green 100%, blue 100% |
| Automatic Switching |
Automatically switches between available patterns |
| Switching Time |
1-255sec |
| Natural Picture |
| Data Save |
Eight 4k/UHD images can be saved |
| Component On/Off |
| Function |
Each of the Y/G, Cb/B, Cr/R components can be turned on and off for each channel independently. |
| On |
Outputs the specified Y/G,Cb/B or Cr/R signal |
| Off |
Y/G :040h/040h Cb/B :200h/040h Cr/R :200h/040h |
| Moving Box |
ON/OFF |
| Embedded Audio |
| Embedded Channels |
Can be turned on and off at the group level |
| 12G, 3G-A, HD, SD |
16ch (4ch×4 groups) |
| 3G-B |
32ch (link A, link B 4ch each x 4 groups) |
| Sampling Frequency |
48kHz sampling (synced with the video signal) |
| Resolution |
20 bits / 24 bits |
| Pre-emphasis |
OFF / 50/15 / CCITT (only the CS bit is switched ) |
| Frequency |
SILENCE / 400Hz / 800Hz / 1kHz |
| Level |
-60-0dBFs (1dBFS steps) |
| Audio |
Click OFF / 1-4sec |
| ID Characters |
| Number of Characters |
Up to 20 Characters |
| Size [Dots] |
32×32 / 64×64 / 128×128 / 256×256 |
| Intensity |
100% /75% Black only for the background color |
| Display Position Anywhere on the display |
| Display Position Adjustment Resolution |
V 1 line, H 1 dot, Blinking Display (※1) OFF / 1-9sec |
| Scrolling (※1) |
| Function |
Scroll including the ID character background |
| Direction |
Two directions (left and right) |
| Speed Range and Unit |
| Interlace |
In unit of fields 0 to 256 dots, 2 dot steps |
| Progressive |
In unit of frame 0 to 256 dots, 2 dot steps |
| ※1 Not available when the check field pattern is selected |
| Pattern scrolling |
| Direction |
Eight directions (up, down, left, right, and combinations) |
| Speed Range and Unit |
| Interlace |
In unit of fields |
| V |
0 to 256 lines, 1 line steps |
| H |
0 to 256 dots, 2 dots steps |
| Progressive |
In unit of frames |
| V |
0 to 256 lines, 1 line steps |
| H |
0 to 256 dots, 2 dots steps |
