| Measurements and Spectrum Analysis |
| Frequency Range |
TV, CATV & Radio: 4-1250 MHz; SAT: 950–2610 MHz |
| Frequency Resolution |
TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable |
| Power range Measurement |
TV 28 to 130 dBμV, SAT 30 to 130 dBμV |
| Digital Measurement |
Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER |
| Analog Measurement & Picture |
Analog level, V/A ratio |
| Measurement Resolution |
0.1 dB |
| Level Measurement Accuracy |
1 dB typ. (2 dB max.) |
| Resolution Filter Bandwidth |
TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable |
| Constellation |
for TV/CATV and SAT signals. |
| Spectrum |
Real time, Max Hold and spectrum memorization with real time compare function |
| Net-id on board |
Net-id, NID, TSID, LCN, SAT Orbit Position |
| Echoes, Pre-echoes, Micro-echoes |
Representation in real Time |
| Quality |
Digital Auto quality Test: PASS-MARGINAL-FAIL |
| TS |

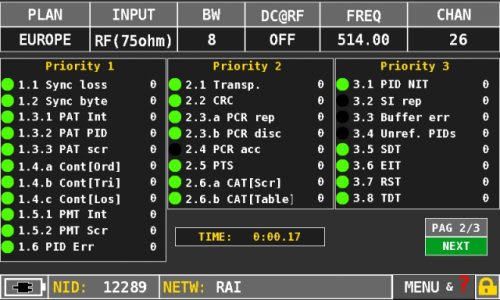

TR 101-290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables |
| IPTV |
measurements and picture decoding (opt.) |
| Optical Measurements |
| FC-ST-SC interchangeable input connectors |
| Automatic loss calculation |
| Wavelengths (nm) |
1310, 1490, 1550 |
| Range |
-25 to 10 dBm |
| Resolution |
0.1 dB |
| Accuracy |
+/- 0.5 dB |
| Optical to RF conversion |
| Communication Ports and Outputs |
| RF Input |
75 ohm (interchangeable “F”) |
| LAN |
RJ45 10/100 base Ethernet |
| USB 2.0 |
Type B (PC Interface) |
| USB 2.0 |
Type A (USB drive) |
| Digital Pictures |
MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen |
| Audio |
AAC supplied, DOLBY |
| Asynchronous Serial Interface (ASI) |
ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector |
| Audio/Video |
Composite A/V input, HDMI output |
| Common Interface |
PCMCIA slot for single/multi-service CAM modules |
| General Specifications |
| 9" TFT TOUCH display |
16:9 high resolution and high brightness |
| Power Supply |
Built in LiPo battery with up to 6 hours duration & Battery Test function |
| DC voltage at RF input |
5 - 12 - 18 - 24 V, DiSEqC, SCR and dCSS |
| PC Interface |
USB |
| Front-Panel |
Alpha numeric keypad |
| Power Save |
TFT backlight timer, brightness adj. |
| PC Management |
SMART software |
| Weight |
only 2,6 Kg with batteries |
| Size |
H 29,0 x W 17,0 x D 5,5 cm |
| Housing |
Aluminium and Steel and padded bag |
