DC - 470 MHz, 4-CH, 10 traces |
Four channels up to 470 MHz are available, with CH1 and CH2 boasting the widest frequency range with highest sensitivity (2mV/div). The fastest sweep speed is 500 ps/div. |
|
Input offset function |
Suitable for the observation of small signals superimposed on large signals. The DC input offset function features an offset equivalent to ±500 div. max, which can be applied to CH1 or CH2. |
|
Counter measurement function |
Built-in 5 digit counter for frequencies up to 470 MHz. |
|
Save/Recall up to 256 panel settings |
Just turn the FUNCTION knob to recall panel setups. Stores up to 256 settings in memory. |
|
Power for FET Probe |
Dedicated power supplies for 2 FET probes. Controls DC offset voltage of each probe as well. |
|
TV/HDTV Synchronization |
TV triggering is available for NTSC, PAL, (SECAM) and HDTV. Field (EVEN, ODD, BOTH) and line select functions are included. |
|
TV Clamp Function |
Easy observation of TV video signals with fluctuating average voltage. Back porch level of composite signals is fixed to ground level for display. |
|
Display |
|
CRT |
6-inch rectangular, internal graticule (8 x 10 div) meshless CRT |
|
Accelerating voltage |
Approximately 20 kV |
|
Vertical Deflection System |
|
Mode |
CH1, CH2, CH3, CH4, ADD (CH1 + CH2), ALT, CHOP |
|
Channel 1, 2 Sensitivity |
2 mV/div - 5 V/div ±2%, 11 step (1-2-5) |
|
Fine Adjuster |
2 mV/div - 12.5 V/div continuously variable |
|
Bandwidth (-3dB) |
|

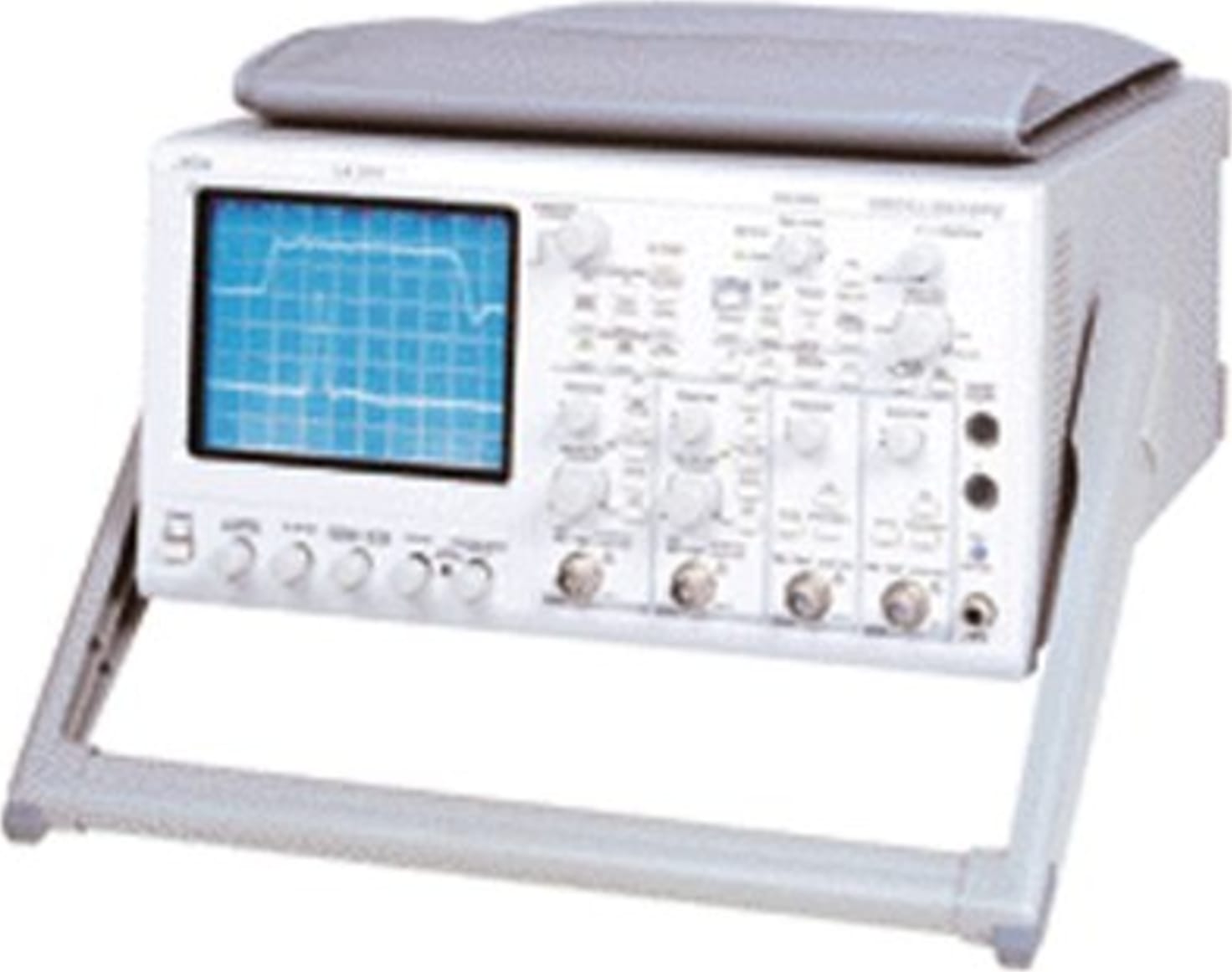

Model LA314H |
470 MHz (5 mV/div - 50 mV/div)
440 MHz (2 mV/div, 100 mV/div - 5 V/div) |
|
Model LA314 |
400 MHz (2 mV/div - 5 V/div) |
|
BW limiter |
20 MHz and 100 MHz selectable |
|
VSWR |
Less than 1.35:1 over DC - 400 MHz (with 50 ohm input) |
|
Rise time |
|
Model LA314H |
Approx. 745 ps @ 20 mV/div |
|
Model LA314 |
Approx. 875 ps |
|
Input coupling |
AC, DC, GND |
|
Input RC |
Hi-Z input: 1 Mohm ±1.5%//16 pf ±2pf, Lo-Z input: 50 ohm ±1%. |
|
Maximum input voltage |
1 Mohm |
|
input |
±400 V max., 50 ohm input: 5 V RMS |
|
Polarity switching |
CH2 only |
|
Probe sensors |
1:1, 1:10, 1:100 detection possible |
|
Offset voltage variable range |
Offset voltage / Vertical axis range
±1 V / 2mV/div - 50 mV/div
±10 V / 0.1 V/div - 0.5 V/div
±100 V / 1 V/div - 5 V/div |
|
Channel 3, 4 Sensitivity |
100 mV, 500 mV/div |
|
Accuracy |
±3% (+10°C - +35°C) |
|
Bandwidth (-3dB) |
400 MHz |
|
Rise time |
Approx. 875 ps (bandwidth x rise time = 0.35) |
|
Input coupling |
AC, DC |
|
Input RC: Direct |
1 Mohm ±1.5%// 16 pF+3pF, when using the probe (SS-082R): 10 Mohm ±2%//13pF ±2pF |
|
Maximum input voltage |
±400 V max |
|
Probe sensors |
1:1, 1:10, 1:100 detection possible |
|
Triggering |
|
A Triggering |
|
Sources |
CH1, CH2, CH3, CH4 |
|
Coupling |
AC, DC, HF-REJ, LF-REJ |
|
Polarity |
± |
|
TV sync - Line selection |
|
NTSC |
1 - 525H |
|
PAL (SECAM) |
1 - 625H |
|
HDTV |
1 - 1125H |
|
HDTV |
1 - 1125H |
|
B Triggering |
|
Sources |
CH1, CH2, CH3, CH4, LINE |
|
Coupling |
AC, DC, HF-REJ, LF-REJ |
|
Polarity |
± |
|
Event Delay: Count |
Setting range: 1 - 65535 maximum count freq.: 50 MHz |
|
Burst |
Time setting range: 0.15 µs - 9.99s |
|
Auto setup |
Input channels: CH1, CH2, Freq. range: 50 Hz - 100 MHz |
|
Horizontal Deflection System |
|
Horizontal Display A, ALT, B, X-Y |
|
A sweep |
|
Mode |
AUTO, NORM, SINGLE Sweep time: 5 ns/div - 500 ms/div ±2%, 25-step (1-2-5), Fastest sweep time: 500 ps/div, Fine adjuster: 5 ns/div - 1.5 s/div |
|
B sweep |
|
Delay |
|
Triggered delay |
CH1, CH2, CH3, CH4 |
|
Continuous delay |
B delayed by A |
|
Sweep time |
5 ns/div - 20 ms/div ±2%, 21 step (1, 2, 5) |
|
Delay time range |
0.2 div - 10.2 div; |
|
Accuracy |
+ (setting value x 0.005) + (sweeptime x 0.1) -55 ns |
|
Magnifier (MAG) |
10 times |
|
Accuracy |
±5% (+10°C - +35°C) |
|
X-Y Operation |
|
X axis |
CH1 |
|
Y axis |
CH1, CH2, CH3, CH4, ADD |
|
Accuracy |
±2% (+10°C - +35°C) |
|
CH2 Out |
|
Output voltage |
20 mV/div ±30% |
|
Frequency output |
DC - 200 MHz (50 ohm load) |
|
Output resistance |
50 ohm ±20% |
|
Utilities |
|
Save/Recall Function |
|
Number of panel setups |
256 max |
|
Comments |
12 characters max |
|
Modulation (Z-axis) |
|
Minimum modulation voltage |
0.5 Vp-p |
|
Polarity |
Positive (dark)/negative (bright) |
|
Frequency range |
DC - 5 MHz |
|
Max. input voltage |
40 V |
|
Calibrator |
|
Waveform |
Square |
|
Repetitive frequency |
1 kHz |
|
Accuracy |
±0.1% |
|
Output voltage |
0.6 V |
|
Accuracy |
±1% |
|
Power for FET probes |
|
Voltage |
2 each +12 V outlets for 2 FET probes, offset control available |
|
Counter |
|
Display digits |
5 digits shown at all times |
|
Accuracy |
±0.01% |
|
Frequency measurement range |
2 Hz - 400 MHz |
|
Cursor Measurement |
|
Voltage axis |
2 |
|
Time axis |
2 |
|
Time difference |
deltaT |
|
Voltage difference |
deltaV |
|
deltaT & deltaV can be simultaneously measured |
|
Power |
|
Voltage range |
AC 90 V - 250 V |
|
Frequency range |
48 Hz - 440 Hz |
|
Power consumption |
120 VA max |
|
Dimensions and Weight |
|
Approx |
320W x 160H x 420L mm |
|
Weight |
approx. 8.5 kg (19.8 lbs) |
|
Approvals |
|
EMC |
Comforms to EN55011 and EN50082-2. |
|
Low Voltage |
Conforms to EN61010-1 Installation Category II, Pollution Degree 2. |
|
Safety |
|
UL and cUL Approved |
Comfirms to UL3111-1 Confirms to Canadian Standard CSA-22.2, No. 1010.1-92 |
