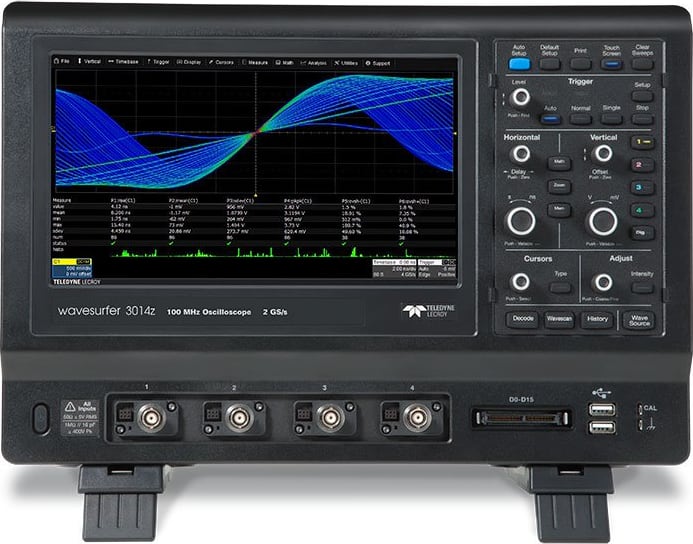

| Analog - Vertical |
| Analog Bandwidth @ 50Ω (-3dB) |
100 MHz |
200 MHz |
350 MHz |
500 MHz |
1 GHz |
| Rise time |
3.5 ns (typical) |
1.75 ns (typical) |
1 ns (typical) |
800 ps (typical) |
430 ps (typical) |
| Input Channels |
4 |
| Vertical Resolution |
8-bits; up to 11-bits with enhanced resolution (ERES) |
| Sensitivity |
50 Ω: 1mV/div - 1 V/div; 1 MΩ: 1 mV/div - 10 V/div |
| DC Gain Accuracy |
±(1.5%) Full Scale, Offset at 0V, > 5mV/div; ±(2.5%) < 5 mV/div |
| BW Limit |
20 MHz |
20 MHz, 200 MHz |
| Maximum Input Voltage |
50 Ω: 5 Vrms, ±10 V Peak; 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz) |
| Input Coupling |
50 Ω: DC, GND; 1 MΩ: AC, DC, GND |
| Input Impedance |
50 Ω ±2.0%, 1 MΩ ±2.0% || 16 pF |
| Offset Range |
50 Ω: 1 mV - 19.8 mV: ±2 V, 20 mV - 100 mV: ±5 V, 102 mV - 198 mV: ±20 V, 200 mV - 1 V: ±50 V
1 MΩ: 1 mV - 19.8 mV: ±2 V, 20 mV - 100 mV: ±5 V, 102 mV - 198 mV: ±20 V, 200 mV - 1 V: ±50 V,
1.02 V - 1.98 V: ±200 V, 2 V - 10 V: ±400 V |
| Offset Accuracy |
±(1.0% of offset value + 1.5%FS + 1 mV) |
| Analog - Acquisition |
| Sample Rate (Single-shot) |
1 GS/s
(2 GS/s interleaved)
|
2 GS/s
(4 GS/s interleaved) |
| Sample Rate (Repetitive) |
50 GS/s |
| Standard Memory ( 4 Ch / 2 Ch) |
10 Mpts / 20 Mpts |
| Acquisition Modes |
Real Time, Roll, RIS (Random Interleaved Sampling),
Sequence (Segmented Memory up to 1,000 segments with 1μs minimum intersegment time) |
| Real Time Timebase Range |
5 ns/div - 100 s/div |
2 ns/div - 100 s/div |
1 ns/div - 100 s/div |
500 ps/div - 100 s/div |
| Roll Mode Timebase Range |
Up to 100 s/div (roll mode is user selectable at ≥ 50 ms/div) |
| Timebase Accuracy |
±10 ppm measured over > 1ms interval |
| Display System |
| Display Size |
10.1” widescreen capacitive touch screen |
| Display Resolution |
1024 x 600 |
| Connectivity |
| Ethernet Port |
10/100Base-T Ethernet interface (RJ-45 connector) |
| Removable Storage |
(1) MicroSD Port - 16 GB micro SD card installed standard |
| USB Host Ports |
(4) USB 2.0 Ports Total - (2) Front USB 2.0 Ports |
| USB Device Port |
(1) USBTMC |
| GPIB Port (Optional) |
Supports IEEE - 488.2 |
| External Monitor Port |
Standard DB-15 connector (support resolution of 1024x600) |
| Remote Control |
Via Windows Automation, or via Teledyne LeCroy Remote Command Set |
| Network Communication Standard |
VICP and LXI compatible |
| Power Requirements |
| Voltage |
100 - 240 VAC ± 10% at 50-60 Hz +/-5%; 100 - 120 VAC ± 10% at 400 Hz +/- 5%; Automatic AC Voltage Selection |
| Power Consumption (Nominal) |
80 W / 80 VA |
| Power Consumption (Max) |
150 W / 150 VA (with all PC peripherals, digital leadset and active probes connected to 4 channels) |
| Environmental |
| Temperature |
Operating: 0 °C to 50 °C; Non-Operating: -30 °C to 70 °C |
| Humidity |
Operating: 5% to 90% relat ive humidity (non-condensing) up to ≤ 30 °C, Upper limit derates to 50% relative humidity(non-condensing) at +50 °C
Non-Operating: 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude |
Operating: 3,048 m (10,000 ft) max at ≤ 25C; Non-Operating: Up to 12,192 meters (40,000 ft) |
| Physical |
| Dimensions (HWD) |
10.63”H x 14.96”W x 4.92”D (270 mm x 380 mm x 125 mm) |
| Weight |
4.81 kg (10.6 lbs) |
| Regulatory |
| CE Certification |
Low Voltage Directive 2014/35/EU; EN 61010-1:2010, EN 61010-2-030:2010
EMC Directive 2014/30/EU; EN 61326-1:2013, EN61326-2-1:2013; RoHS2 Directive 2011/65/EU |
| UL and cUL Listing |
UL 61010-1, UL 61010-2-030:2010, 3rd Edition; CAN/CSA C22.2 No. 61010-1-12 |
