LeCroy WS510-USB2-HSICBUS D 2.0 HSIC Link and Data Layer Protocol Decode

The comprehensive and intuitive decode and easy to navigate table display enable a powerful tool set to quickly debug a USB2-HSIC powered system.

Decode Annotation Complements Physical Layer Views

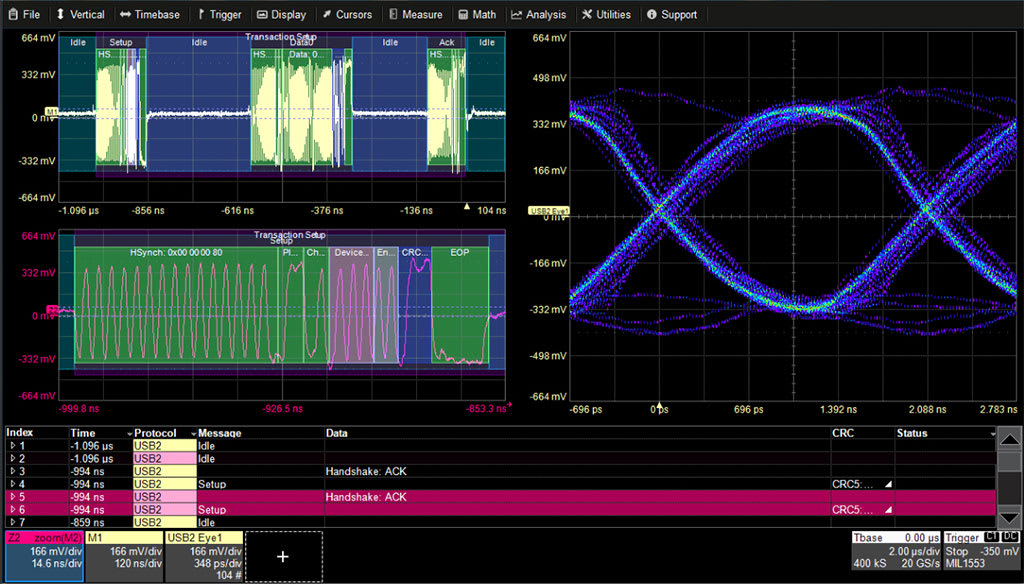

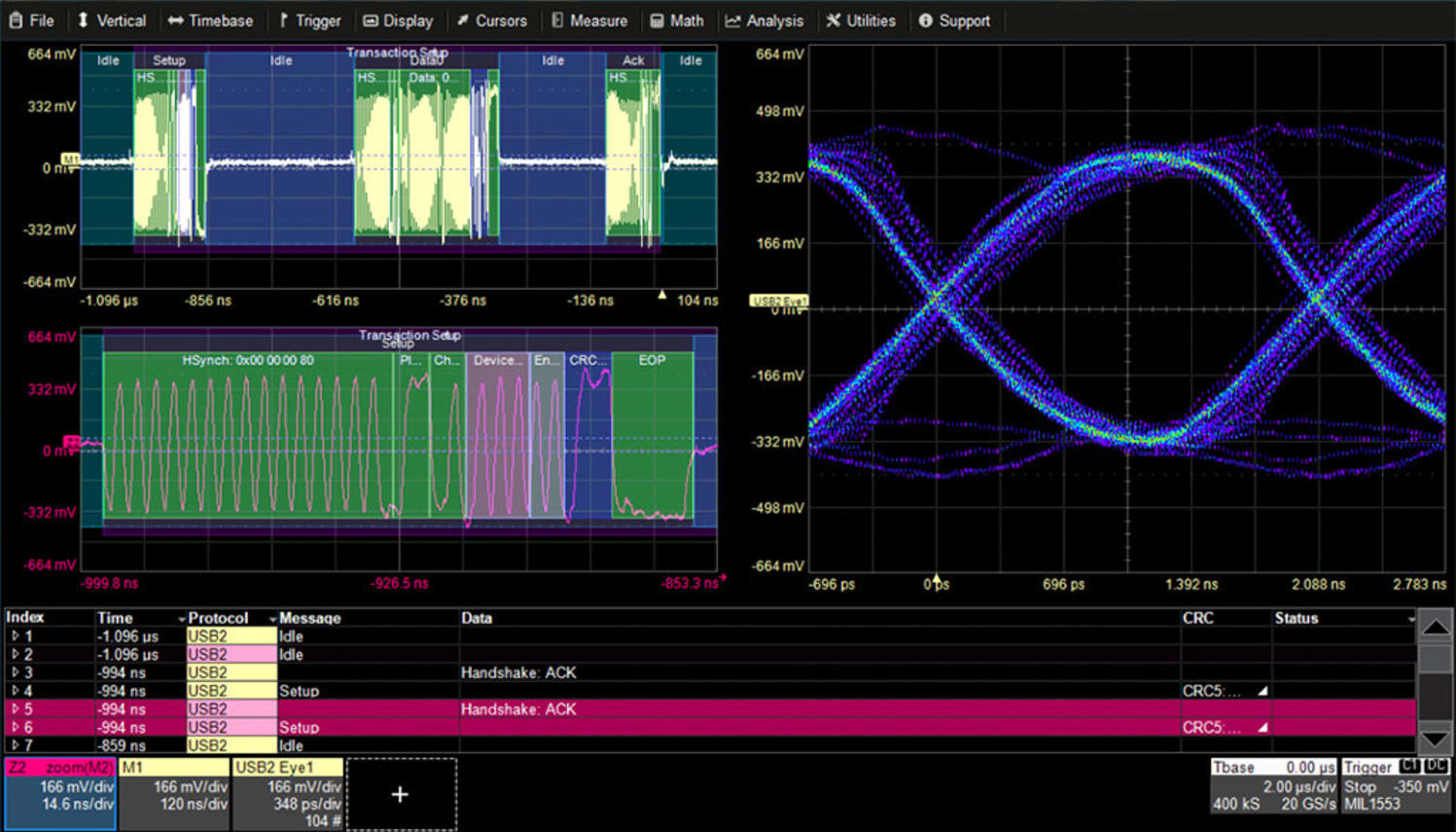

The USB 2.0 HSIC link and data layer decode information is annotated on the physical layer waveform. Various sections of the protocol are color coded to make it easy to isolate various opcodes and frames. Decode annotation information condenses or expands depending on the timebase/ zoom ratio setting. HSIC decode annotation helps in isolating problems that cannot be completely attributed to physical layer issues. The Data and Strobe Offset setting on the oscilloscope menu enables the user to identify the correct level for which the receiving end will be able to understand the traffic. Protosync (separate option) takes the HSIC decode annotation to an even higher level by displaying the USB transaction in the CATC® protocol view on the scope screen or on a separate monitor.

With Physical Layer waveforms, USB 2.0 HSIC decode annotation and Protosync, the test engineer has the ability to view the entire hierarchy of the USB 2.0 HSIC traffic in a single instrument, a unique feature unmatched in the industry.

Convenient Table Display and Search

Long oscilloscope acquisition memory provides long capture times of USB 2.0 HSIC traffic. Any of the USB 2.0 packets, events or errors can be searched for on this decoded trace. In addition, the table data may be exported as a .csv file

Support on Multiple Oscilloscope Platforms

The USB 2.0 HSIC decode option is available on a wide range of oscilloscope models with real-time bandwidths from 1 GHz to 45 GHz.
