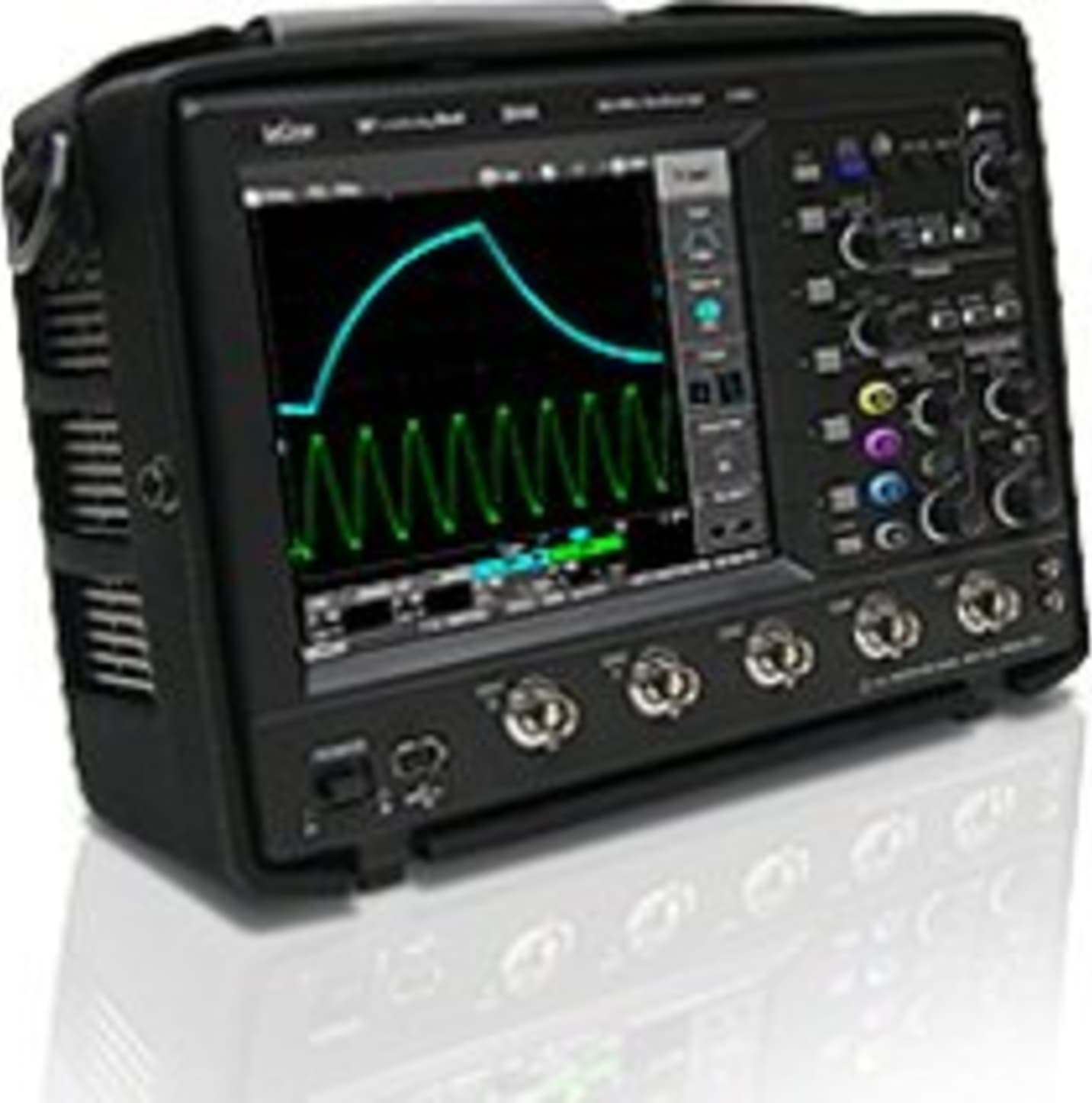

| Vertical System |
| Rise time |
750 ps |
| Bandwidth |
500 MHz |
| Input Channels |
4 |
| Bandwidth Limiters |
20 MHz, 100 MHz |
| Input Impedance |
1 MΩ ± 1.5% || 16 pF, 50 Ω ± 1.5% |
| Input Coupling |
AC, DC, GND |
| Maximum Input Voltage |
1 MΩ: ± 400 Vpk, 50 Ω: 5 VRMS |
| Channel-Channel Isolation |
≥ 34 dB from DC - 100 MHz
≥ 30 dB at 350 MHz |
| Vertical Resolution |
8 bits |
| Sensitivity |
1 MΩ: 2 mV/div - 10 V/div
50 Ω: 2 mV/div - 2 V/div |
| DC Gain Accuracy |
±(1.5% + 0.5% of Full Scale) |
| Offset Range |
±1 V: 2 mV/div - 50 mV/div
±10 V: 50.2 mV/div - 500 mV/div
±100 V: 502 mV/div - 10 V/div |
| Horizontal System |
| Time/Division Range |
500 ps/div - 50 s/div |
| Clock Accuracy |
10 ppm |
| Trigger and Interpolator Jitter |
200 ps (pk-pk) |
| Acquisition System |
| Single-Shot Sample Rate/Ch |
2 GS/s on 2 Ch
1 GS/s on 4 Ch |
| Equivalent Sample Rate |
100 GS/s |
| Memory |
500 kpts/Ch |
| Acquisition Modes |
| Averaging |
Selectable Number of Sweeps:
2 - 256 (in powers of 2) |
| Peak Detect |
1 ns |
| Interpolation |
Linear |
| Triggering System |
| Modes |
Normal, Auto, Single, Stop |
| Sources |
Ch 1 - Ch 4, EXT, EXT/10, AC Line |
| Coupling Mode |
AC, DC, LF Rej, HF Rej |
| Hold-off by Time or Events |
200 ns - 50 s |
| Internal Trigger Range |
±5 divisions from center |
| Trigger Sensitivity |
0.5 division: DC - 10 MHz
2.0 divisions: 10 MHz - 350 MHz |
| External Trigger Sensitivity |
Ext: 50 mV from DC to 10 MHz
250 mV from 10 MHz to 350 MHz
Ext/10: 0.5 V from DC to 10 MHz
2.5 V from 10 MHz to 350 MHz |
| External Trigger Input Range |
Ext: ±0.5 V, EXT/10: ±5.0 V |
| Display |
| Type |
Color 7.5" TFT-LCD |
| Resolution |
VGA: 640 x 480 |
| Grid Styles |
YT, XY |
| Trigger Types |
| Standard Triggers |
Edge, Glitch, Period, Pulse Count, TV |
| Internal Storage |
| Waveform Storage |
1 reference waveform |
| Setup Storage |
5 setups |
| Math |
| Number of Math Traces |
1 |
| Standard Math Functions |
Add, Subtract, Multiply, FFT |
| Measurements |
| Number of Measurements Displayed |
4 |
| Measurement Parameters |
Base, Cyclical Mean, Cyclical RMS, Duty Cycle, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Integral, Maximum, Mean, Minimum, Number of +Pulses, Number of -Pulses, +Overshoot, -Overshoot, Peak-Peak, Period, +Pulse Width, -Pulse Width, Rise Time (20% - 80%), Rise Time (10% - 90%), RMS, Skew, Skew@level, Top, Top-Base |
| Interface |
| GPIB Port (optional) |
1 (optional) |
| USB (Device) |
1 |
| Ethernet Port |
1 (optional) |
| USB (Host) |
1 |
| Probes |
| Probes |
Qty. (4) ÷10 Passive Probes |
| Scale Factors |
Automatic: ÷1, ÷10, ÷100, ÷1000
Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000 |
| Calibration Output |
1 kHz square wave, 0.6 Vp-p (typical), output to probe hook |
| Power Requirements |
| Voltage |
90 - 264 VAC, 47 Hz - 420 Hz |
| Max. Power Consumption |
75 VA |
| Environmental and Safety |
| Temperature (Operating) |
0 °C to 40 °C |
| Temperature (Non-Operating) |
-20 °C to 60 °C |
| Humidity (Operating) |
80% RH, 40 °C |
| Humidity (Non-Operating) |
80% RH, 40 °C |
| Altitude (Operating) |
2000 m max at <=25 °C |
| Altitude (Non-Operating) |
15,000 m |
| Physical Dimensions |
| Dimensions (HWD) |
190 mm x 285 mm x 102 mm
(7.5" x 11.2" x 4") |
| Weight |
3.2 kg (7 lbs) |
| Warranty and Service |
| Warranty and Service |
3-year warranty; calibration recommended annually
Optional service programs include extended warranty and calibration services |
