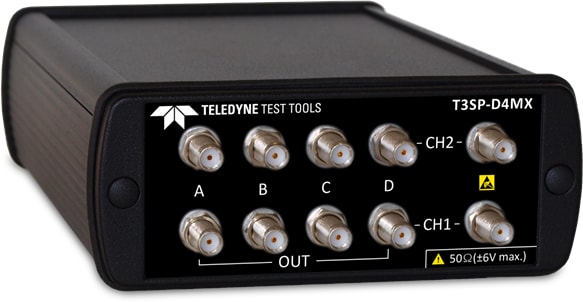

| LeCroy T3SP-D4MX-BUNDLE Specifications |
| RF Characteristics (single-ended) |
| Insertion Loss (typ.) |
< 0.4 dB |
DC to 0.3 GHz |
| < 1 dB |
0.3 GHz to 2 GHz |
| < 3 dB |
2 GHz to 8 GHz |
| < 5 dB |
8 GHz to 10 GHz |
Return Loss
(CH1 and CH2 input, typ.) |
> 25 dB |
DC to 0.3 GHz |
| > 18 dB |
0.3 GHz to 2 GHz |
| > 15 dB |
2 GHz to 8 GHz |
| > 10 dB |
8 GHz to 10 GHz |
Isolation
(contacts same channel, typ.) |
> 45 dB |
DC to 0.3 GHz |
| > 32 dB |
0.3 GHz to 2 GHz |
| > 27 dB |
2 GHz to 10 GHz |
| RF Characteristics (Differential*) |
Isolation between
CH1 and CH2 (typ.) |
> 60 dB |
DC to 010 GHz |
Group delay deviation
CH1 and CH2 (typ.) |
±5 ps |
DC to 010 GHz |
| * measured between same path (A, B, C, D) of CH1 and CH2 |
| Electrical Characteristics |
| Operating frequency |
0 -10 GHz (-3 dB BW: 8 GHz) |
| RF max. power ratings |
30 dBm (50 Ω load), 24 dBm (open) |
| RF input voltage range (DC) |
±6 V |
| RF input current range (DC) |
±200 mA |
| Contact resistance (ON) |
1.8 Ω (typ.), 3.5 Ω (max.) |
| Contact resistance (OFF) |
> 1 GΩ (@ ±6 V) |
Hardware switching time
(without software latency) |
< 100 μs |
Switching time
(with software latency*) |
< 10 ms |
Switching cycles
(min. operations, mechanical) |
109 |
Switching cycles
(min. operations, electrical) |
500·10 6 (hot switching, 10 dBm in 50 Ω) |
| * Latency due to internal programming. It can increase with high data traffic on the USB port. |
| Power Requirements |
| Power supply voltage |
5 V (via USB) |
| Power supply current |
< 12 mA |
| Electrostatic Discharge (ESD) |
| RF (in/out), human body model (HBM) |
5 kV |
| Temperature Range and Humidity |
| Temperature |
0 - 55 °C |
| Humidity |
5 % - 85 % (R.H., without condensation) |
| Dimension |
| With connectors |
49 mm × 108 mm × 180 mm |
| Without connectors |
49 mm × 108 mm × 165 mm |
