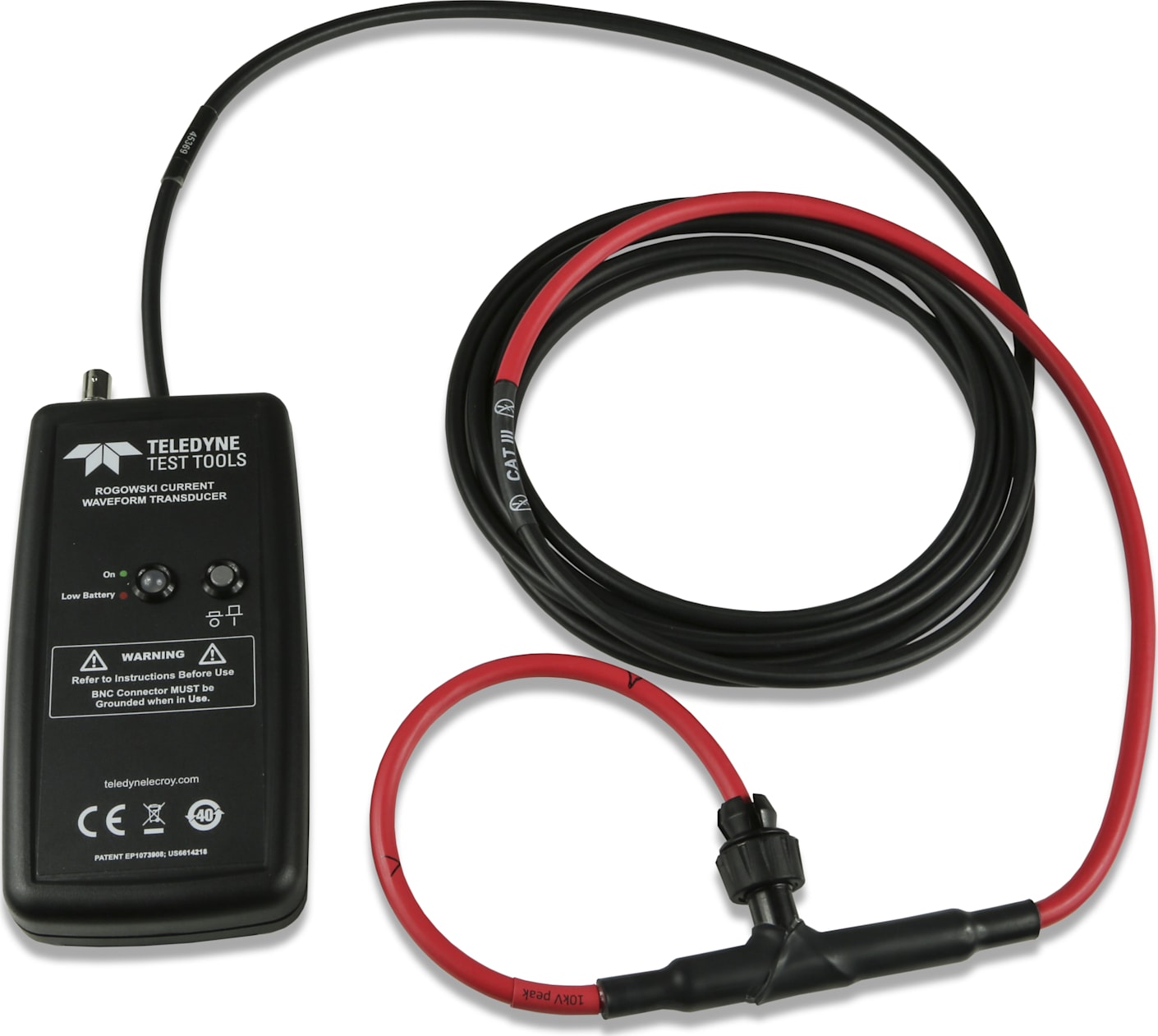

Teledyne LeCroy T3RC3000-LF - 0.11 Hz to 6.5 MHz AC Current Probe
- Bandwidth: 0.11 Hz to 6.5 MHz
- Peak Current: 3000 Amps
- Simple to use with flexible probe coils
- Use with batteries or plug in power adaptor (supplied)
Teledyne Test Tools Rogowski Current probes offer a broad range of products covering a wide frequency span and current measurement ranges for maximum application coverage whilst being easy to use in difficult to reach parts of the circuit.
The flexibility of the probe sense coil means that measurements can often be made without modification to the circuit under test, giving more accurate results, whilst remaining isolated, with very low insertion load of only a few pH.
The inclusion of both battery power and wall plug operation means that the Teledyne Test Tools Rogowski Current Probes are as happy working out in the field as they are working on the bench. The T3RC0300-UM features our smallest cross section sense coil at only 1.7mm. This ideally lends itself to embedded power applications where it’s necessary to probe around the leg of power components such as inductors, capacitors or small switching devices as small as a TO220 MOSFET.
The T3RC0600-HF and T3RC3000-HF are general purpose Rogowski probes covering applications up to 600 Amps and 3000 Amps respectively. With extended high frequency coverage, 5 kV peak insulation and wide operating temperature range from -40C to +125C, makes them ideally suited to both general purpose as well as wide temperature environments.
The T3RC3000-LF and T3RC6000-LF Rogowski probes offer an extended low frequency performance down to less than 1 Hz. The low frequency performance means that the maximum droop on low frequency pulses is typically 0.1% / ms or less, while offering our highest level of peak insulation of 10 kV and wide operating temperature range of -20C to +100C.
Application Fields
- Component level design and development such as semiconductor switching waveforms in MOSFET or IGBT, also capacitor and inductor devices.
- System level development such as motor drives in hybrid and fully electric transportation systems (automotive, rail, sea, etc)
- Power converter design and development for wind farms and other renewable energy.
- Research and Development.
- Long term system monitoring and maintenance.
Oscilloscope Compatibility
The Teledyne Test Tools Rogowski probes are compatible with all of the Teledyne Test Tools Oscilloscopes as well as the Teledyne LeCroy Oscilloscopes.
The Teledyne Test Tools Rogowski probes have a simple connection requirement of a BNC input with 1 MOhm impedance. These probes will therefore work with the majority of oscilloscopes in the market.
The probes can be made even more useful by using your Oscilloscope’s Attenuation function to re-scale the Channel vertical range.
The Attenuation Ratio value can be used in your Oscilloscope's channel settings to correctly scale the channel vertical (Y axis) range. Some Oscilloscopes allow the vertical (Y axis) units to be changed. This should be set to 'A' to reflect an Amps measurement.
Comparison of three Teledyne Test Tools Rogowski probes. The probes have been off set to enable comparison.
Model Number |
Measurement Current |
Bandwidth |
T3RC0300-UM |
Up to 300 Amps |
9.2 Hz to 30 MHz |
T3RC0600-HF |
Up to 600 Amps |
12 Hz to 30 MHz |
T3RC3000-HF |
Up to 3000 Amps |
3 Hz to 23 MHz |
T3RC3000-LF |
Up to 3000 Amps |
0.11 Hz to 6.5 MHz |
T3RC6000-LF |
Up to 6000 Amps |
0.055 Hz to 6.5 MHz |
