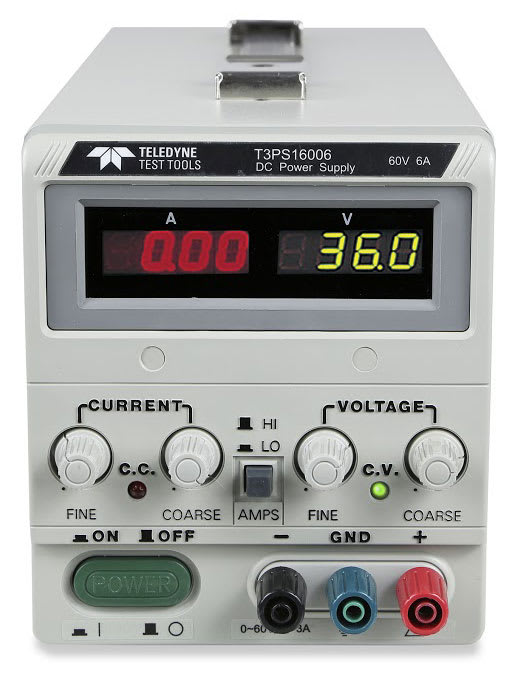

Teledyne LeCroy T3PS16006 - Single Ouput, Switching DC Power Supply

Name: Teledyne LeCroy T3PS16006 - Single Ouput, Switching DC Power Supply
Brand: Teledyne LeCroy
SKU: LeCroyT3PS16006
Price: 740.00 USD
Availability: InStock

0 reviews | Catalog: T3PS16006 | Model: Teledyne LeCroy T3PS16006

Teledyne LeCroy T3PS16006 Switching DC Power Supply

Compare

Bench Power Supply, Switching DC, Adjustable, 1 Output, 0 V, 60 V, 0 A, 6 A

WARNING

Single ouput, Switching DC Power supply
0-60V/0-6A, 360W
Non-programmable
Sense terminals

View Product Details

WARNING: This product can expose you to chemicals or other substances which are known to the State of California to cause cancer or reproductive toxicity. For more information, go to www.P65Warnings.ca.gov .

Your Price: $740.00

In Stock:

Request a Demo

View Payment Options

Request Quote

Recommended for you

Teledyne LeCroy T3PS16006 - Single Ouput, Switching DC Power Supply

Single Ouput
0-60V/0-6A, 360W
Non-programmable
Sense terminals
Offers a dual measurement display, high efficiency and high power density due to it's efficient switching design architecture

The T3PS1XXXX and T3PS2XXXX Series are a range of single and dual output power supplies offering a range of voltage and current levels up to 360 Watts.

The dual output models offer Tracking Operation whereby the two outputs can function independently of one another, or in parallel or series mode. In independent mode the two outputs function completely independently of one another, as two separate outputs. In parallel mode the two outputs act as a single output giving the standard output voltage range but with the two output current values added together giving twice the output current. In series mode the two outputs again act as a single output but now outputting twice the voltage allowing higher voltages to be reached at the normal current level.

The Remote Sense Terminals allow the power supply to sense the voltage at the DUT and compensate for any voltage lost in the connecting cables thereby delivering the set voltage directly to the DUT and not simply at the power supply output terminals.

Models and Characteristics

Model	Voltage Range	Current Range	Maximum Power
T3PS11230	0-12V	0-30A	360W
T3PS12415	0-24V	0-15A	360W
T3PS13206	0-32V	0-6A	192W
T3PS13206P	0-32V	0-6A	192W	Programmable
T3PS16006	0-60V	0-6A	360W
T3PS23203	0-32V/0-32V	0-3A/0-3A	192W
T3PS23203P	0-32V/0-32V	0-3A/0-3A	192W	Programmable

	T3PS11230	T3PS12415	T3PS13206	T3PS13206P	T3PS16006	T3PS23203	T3PS23203P
Number of Channels	1	1	1	1	1	2	2
Voltage Range	0-12 V	0-24 V	0-32 V	0-32 V	0-60 V	0-32 V / 0-32 V	0-32 V / 0-32 V
Current Range	0-30 A	0-15 A	0-6 A	0-6 A	0-6 A	0-3 A / 0-3 A	0-3 A / 0-3 A
Maximum Power	360 W	360 W	192 W	192 W	360 W	192 W	192 W
Constant Voltage
Line Regulation	≤5 mV	≤5 mV	≤0.01%+3 mV	≤0.01%+3 mV	≤5 mV	≤0.01%+3 mV	≤0.01%+3 mV
Load Regulation	≤5 mV	≤5 mV	≤0.02%+5 mV	≤0.02%+5 mV	≤5 mV	≤0.01%+3 mV	≤0.01%+3 mV
Ripple & Noise	≤5 mV rms (20 Hz - 20 MHz)	≤5 mV rms (20 Hz - 20 MHz)	≤1 mV rms (5 Hz - 1 MHz)	≤500 uV rms (5 Hz - 1 MHz)	≤5 mV rms (20 Hz - 20 MHz)	≤1 mV rms (5 Hz - 1 MHz)	≤350 uV rms (5 Hz - 1 MHz)
Recovery Time (50% Load Change, minimumload 0.5 A)	≤500 us	≤500 us	≤100 us	≤50 us	≤500 us	≤100 us	≤50 us
Constant Current
Line Regulation	≤3 mA	≤3 mA	≤0.2%+3 mA	≤0.2%+3 mA	≤3 mA	≤0.2%+3 mA	≤0.2%+3 mA
Load Regulation	≤3 mA	≤3 mA	≤0.2%+3 mA	≤0.2%+3 mA	≤3 mA	≤0.2%+3 mA	≤0.2%+3 mA
Ripple & Noise	≤30 mA rms	≤10 mA rms	≤3 mA rms	≤4mA rms	≤3 mA rms	≤3 mA rms	≤2 mA rms
Other
Tracking Operation	No	No	No	No	No	Yes	Yes
Remote Sense Terminals	Yes	Yes	Yes	Yes	Yes	No	No
Programmable	No	No	No	Yes	No	No	Yes
Technology	Switching	Switching	Linear	Linear	Switching	Linear	Linear

Power Supplies/DC Power Supplies Template
Outputs	Single
Voltage Output 1	Variable
Max Voltage Output 1	60 V
Programmable	No
Current Output 1	Variable
Max Current Output 1	6 A
Meter Type	Digital
Switching	Yes
Linear/Switching	Switching
Remote Sensing	Yes
Test Equipment General Attributes
Warranty	3 YEARS
Country of Origin	China
