0 reviews | Catalog: T3DAQ1-16 | Model: Teledyne LeCroy T3DAQ1-16

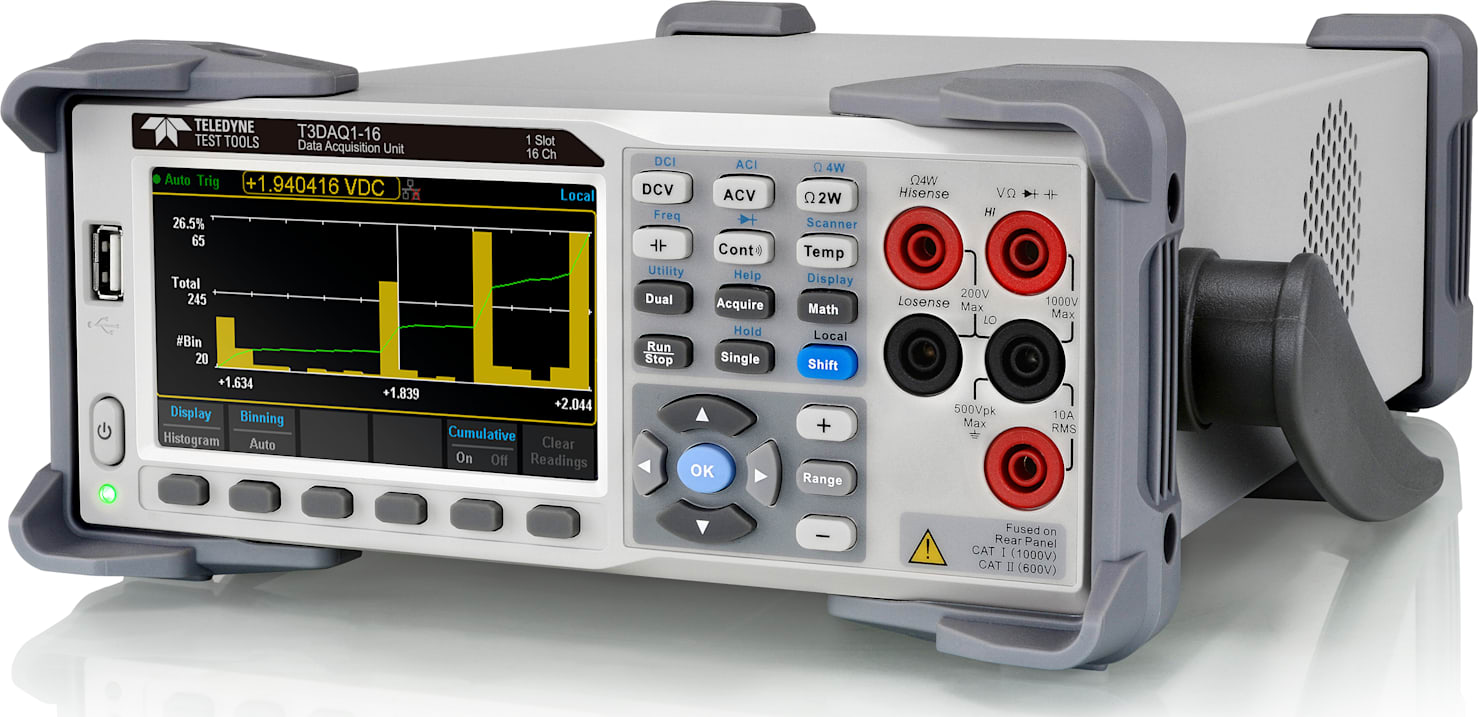

Teledyne, 16 Channel, Single Slot, 12 Multi Purpose, 4 Current Channels, Bench Data Acquisition Switch Unit
Your Price: $1,985.00
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
Teledyne Test Tools T3DAQ1-16 is a 16 channel Data Acquisition System incorporating the latest 4.3 inch (10.92cm) dual-display technology which can be configured to show Data Histograms, Data fluctuation Trends, Bar Graph, Statistics or the traditional Number mode, all in an easy to use interface. The T3DAQ features 12 multi-purpose + 4 current channels and supports various measurement functions. It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing. A great feature of the Teledyne Test Tools T3DAQ is its ability to make highly accurate True RMS AC Voltage and Current measurements, meaning no loss of accuracy even when measuring complex voltage and current waveforms. The T3DAQ provides various measurement modes to satisfy a wide range of application requirements. 12 Multi-purpose channels can be configured individually for various scan requirements. The Channel configuration function allows user to configure different parameters such as measurement type, range, scan mode, number of scan cycles, and duration of scan. Similarly, the scan control menu provides flexibility to schedule, start, and stop the scan. Scanning data can be viewed live during a scan and can also be saved for future use. An internal 1GB flash memory is available for data logging and to save configuration files. The T3DAQ also features a USB Host interface to use a USB flash drive to collect data without being connected to a PC. The T3DAQ is equipped with LAN and USBTMC interfaces for remote control of the device. The device can be controlled remotely using EasyDMM software. The graphical interface of the software makes it easy to configure measurements, setup and execute scans or troubleshoot the design. Live measurement data can be viewed in numeric digits or graphically by trend chart, bar graph and histogram. The data can be manually or automatically exported as CSV files for further analysis.
The T3DAQ can be remotely operated by the EasyDMM software. The software provides user friendly graphical interface to operate the DAQ.
Configure Channels menu in the Scan mode can be used to enable channels as well as to configure various settings such as measurement function, range, speed of measurement. Channels can also be monitored within the defined limits by using Alarm Limit feature.
Different measurement settings such as Scan interval, Start and Stop time can be set from the Scan Data menu. The Result section provides the live measurement data along with min, max and average values. It also provides total number of scans and number of Alarm for every channel.
To view the scanned data visually, the software has Trend Chart, Histogram and Bar graph. All the graphs also has user customizable options such as color, axis scales, type of curve etc.
The T3DAQ has a 6 1/2 Digit DMM functionality built in. DMM functionality can be used using the front panel connector and is useful when making quick measurements. The DMM supports all the functions offered by the scanner with some additional ranges in Voltage and Current measurements.
