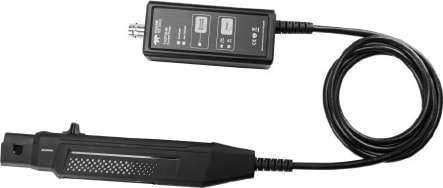

AC/DC Current Probe - 50A, 50 MHz Current Probe, BNC, AC/DC, 50A rms, 75A Peak Pulse
Teledyne Test Tools Current Probes are available in a variety of models for a wide range of applications. The full range of BNC connection Teledyne Test Tools current probes includes models with bandwidths up to 100 MHz, peak currents up to 500A and sensitivities to 1 mA/div. Teledyne Test Tools Current Probes are supplied with an external power supply and a set of universal plug adaptors for easy use. The Teledyne Test Tools Current Probes are often used in applications such as the design and test of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies.
| Model
| Bandwidth | Rise Time | Maximum Continuous Current Rating | Ranges | Minimum Measurable Current |
| T3CP30-50 | DC to 50 MHz | ≤ 7 ns | 30 A rms | 5 A / 30 A | 1 mA / 10 mA |
| T3CP30-100 | DC to 100 MHz | ≤ 3.5 ns | 30 A rms | 5 A / 30 A | 1 mA / 10 mA |
| T3CP50-50 | DC to 50 MHz | ≤ 7 ns | 50 A rms | 7.5 A / 50 A | 1 mA / 10 mA |
| T3CP150-12 | DC to 12 MHz | ≤ 29 ns | 150 A rms | 30 A / 150 A | 10 mA / 100 mA |
| T3CP500-5 | DC to 5 MHz | ≤ 70 ns | 500 A rms | 75 A / 500 A | 10 mA / 100 mA |
