• 2 GHz bandwidth
• 220 ps risetime
• +/- 60 V offset range
• High Dynamic Range of +/- 800 mV
• 1.2x attenuation

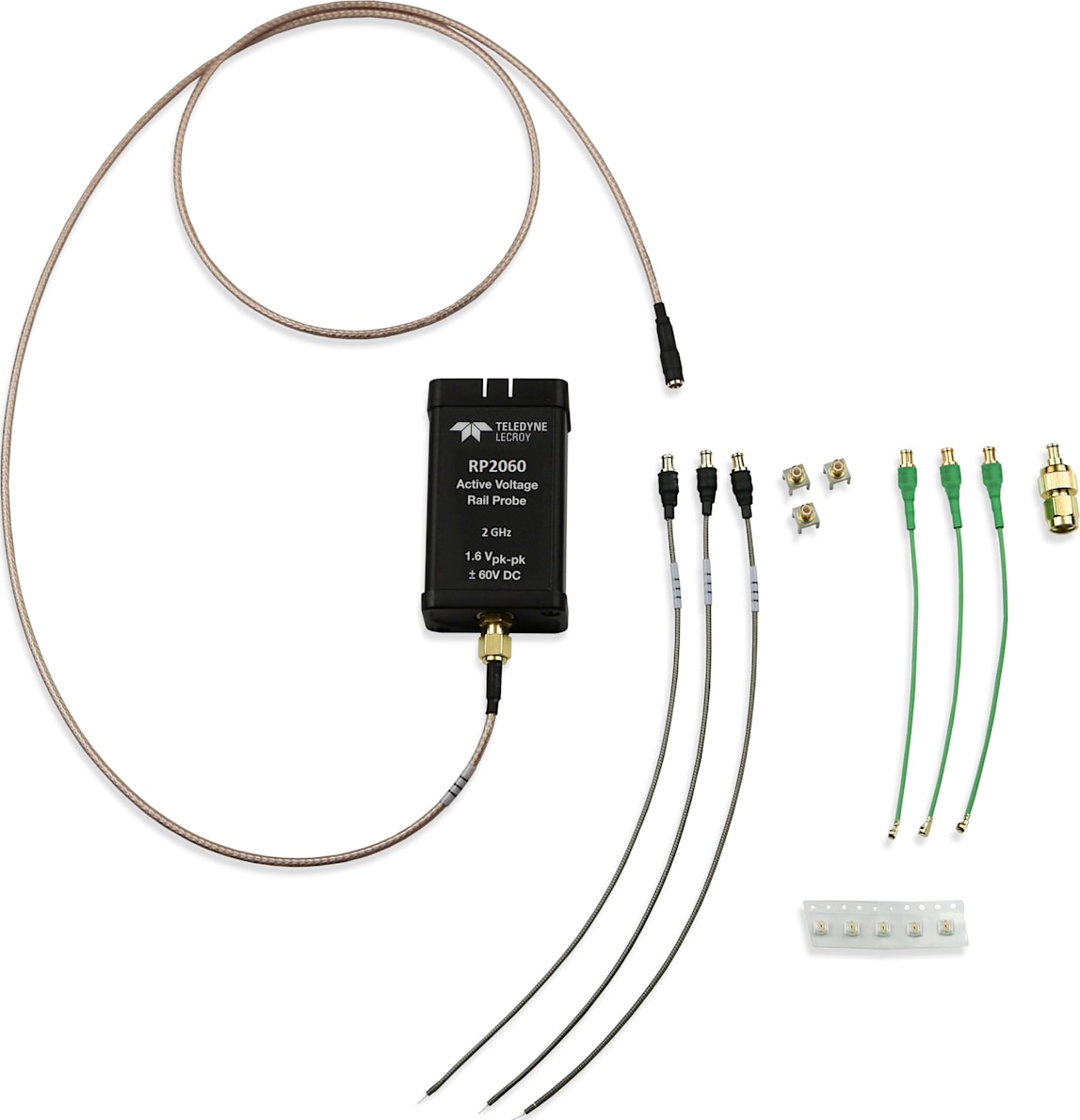

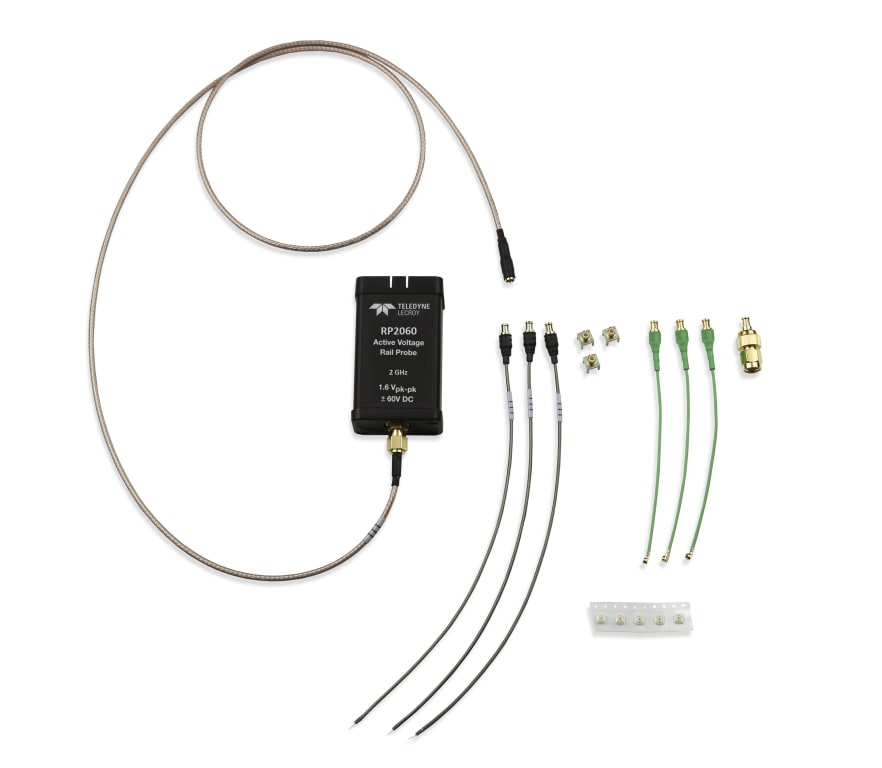

The Teledyne LeCroy RP2060 Power Rail Probes meet the specific requirements of those who need to acquire a low-voltage DC signal to test:

• Digital power management components such as power management IC (PMIC) : voltage regulator module (VMR); point-of-load (POL) switching regulator; or low-dropout regulator
• Complete embedded systems containing digital power management components

The rail probes will acquire a low-impedance, low-voltage DC power/voltage rail signal without loading the device under test (DUT). They provide high sensitivity (gain) with low noise and high offset allowing DC power/voltage rail signals to be displayed in the vertical center of the oscilloscope.
