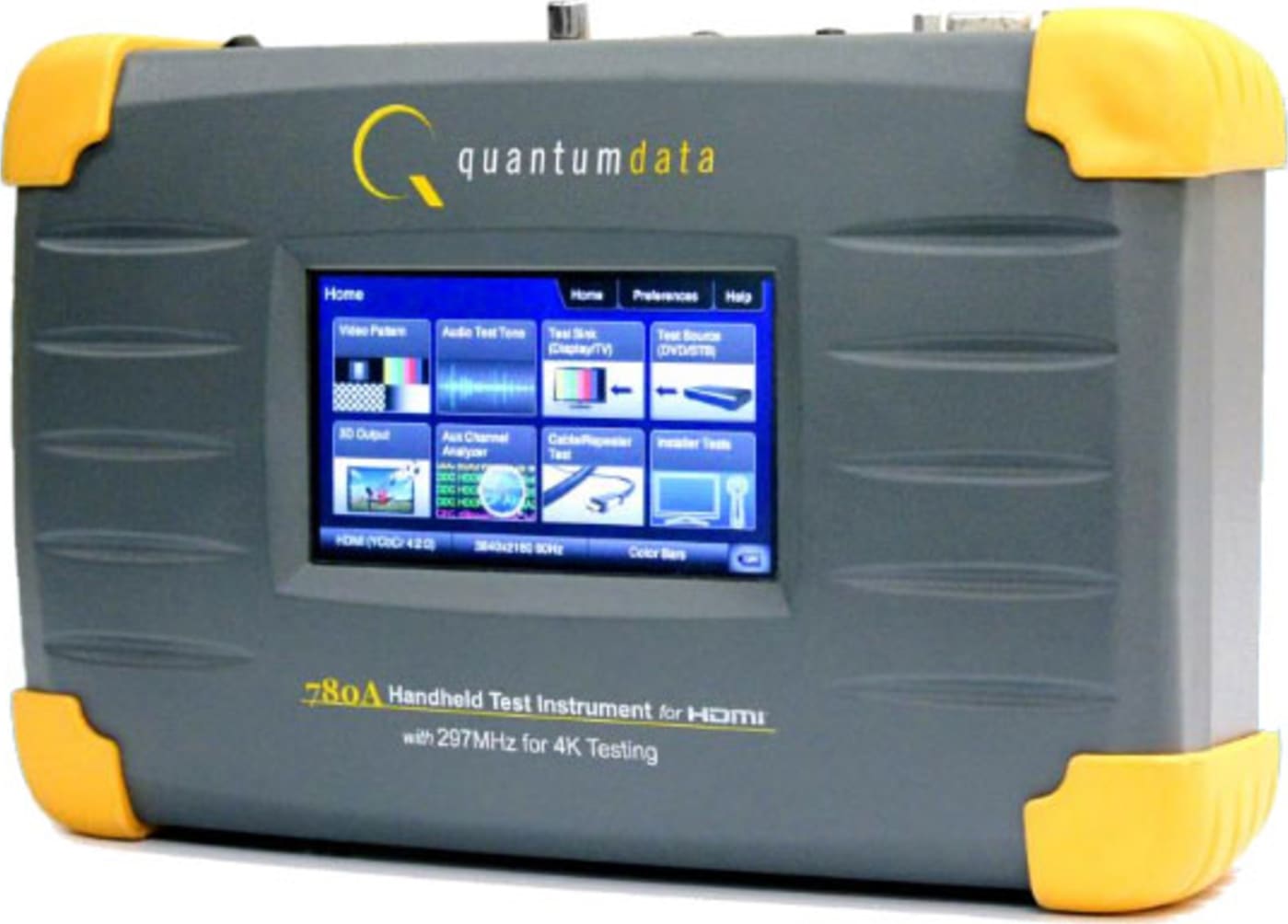

LeCroy Quantum 780AH Handheld Test Instrument with HDCP 2.2 and Network Analyzer

Name: LeCroy Quantum 780AH Handheld Test Instrument with HDCP 2.2 and Network Analyzer
Brand: Teledyne LeCroy
SKU: LeCroyQuantumData 780AH
Price: 6150.00 USD
Availability: InStock

0 reviews | Catalog: QuantumData 780AH | Model: Teledyne LeCroy QuantumData 780AH

Images (2) | Videos (16)

Compare

780AH Handheld Test Instrument for HDMI with HDCP 2.2 (Base Model)

HDMI input and output ports for testing both source display devices as well as cables and distribution networks
Test Ultra High Definition video products supporting 4K resolutions up to 300 MHz
Video pattern and format library with programmable settings
Protocol tests for digital video sources and displays, including test for HDCP 2.2 authentication
Protocol logging application auxiliary channel analyzer (ACA)enables real time monitoring o fEDID exchanges, SCDC, HDCP (including HDCP 2.2) transactions and CEC messages
Passive protocol logging between a source and a sink is also optionally supported on HDMI ports
NEW! Report File Creation feature provides HTML formatted report of tests performed

View Product Details

List Price: $6,150.00

In Stock:

View Payment Options

Recommended for you

The quantumdata™ 780AH Handheld Test Instrument

Teledyne LeCroy’s quantumdata 780AH Handheld Test Instrument is a battery powered portable, handheld digital video generator and analyzer that enables you to run tests on digital video devices and network distribution devices on site or in the R&D lab. The HDMI ports support testing up to 300 MHz pixel rate. Testing these HDMI devices is supported by both an output port and an input port to allow testing of HDMI video sources, displays, audio devices and distribution devices. The 780AH also offers a VGA output for testing RGB and component analog.

Diagnose and Troubleshoot

The 780AH model provide a status bar on the bottom of the touch screen. The status bar provides basic information about what the instrument is transmitting to a display. The instruments can run quick video audio and protocol tests on individual sources, displays , repeaters, distribution gear as well as cables. Protocol tests include tests for EDID, HDCP authentication, infoframes and timing data. You can place the 780AH at any point in a video distribution network and run tests upstream toward the source while emulating a display (or sink). Or you can run tests downstream while emulating a source. Generate reports to demonstrate test series completion.

LeCroy Quantum 780AH Specifications
HDMI
Version	HDMI 2.0
Standard Formats	VESA (DMT, CVT-R, CVT), CEA
Connector	(1)Type A Tx; (1) Type A Rx
Protocol	HDMI, DVI
Video Colorimetry	ITU-R BT.601-5, ITU-R BT.709-5
Video Max Pixel Rate	225 MHz (2.25 Gbps/channel TMDS rate)
Color Depths	8, 10, 12 bits
Video Encoding / Sampling	RGB, YCbCr; 4:4:4, 4:2:2, 4:2:0
HDCP	Versions 1.4
Audio Formats	LPCM, Dolby (DD, DD+, TrueHD), DTS (ES, HD, Master Audio)
Audio LPCM Settings	Sampling rates (32 – 192 kHz); Bits per sample (16, 20, 24)
Digital Audio
Connectors	Optical (JIS FOS); SPDIF (RCA)
Audio Formats	LPCM, Dolby (DD, DD+), DTS (ES, HD)
Audio LPCM Settings	Sampling rates (32 – 192 kHz); Bits per sample (16, 20, 24)
Analog Video
Connector	VGA HD-15
Format Standards	VESA, CEA
Video Encoding	RGB, YPbPr
Max Pixel Rate	80 MHz (higher resolutions supported through pixel repetition)
Options
Cable Test	Test digital video cables and video distribution networks
Netwrok Analyzer	Protocol testing of sources and sinks
ACA Monitor (emulation)	Monitor aux channel and CEC bus while emulating a source or sink device
ACA Monitor (passive)	Monitor aux channel and CEC bus passively between source and sink devices
Report File Creation	NEW!Provides html formatted report of tests performed on a project
Instrument
Battery	6AA NiMh batteries. 2 hours between charge. Overnight charge required.
AC Adapter	100-120 VAC, 47-63Hz; 0.4 amps max
Weight	3.25 LBS; 1.47 Kg
Embedded Display	480 (H); x 272 (V) resolution; 24 bit RGB color.
Tilt Bail	For convenient viewing
Size	Height: 2.7 in. (6.98 cm) Width: 9.75 in. (24.76 cm) Depth: 6 in. (15.24 cm)
Command Line Control	USB Type B
Environmental	Operating Temp: 32 to 104 (F); 0 to 40 (C)
File Access	USB Type B (command line / file transfer; SD Card (upgrades / file transfer)
