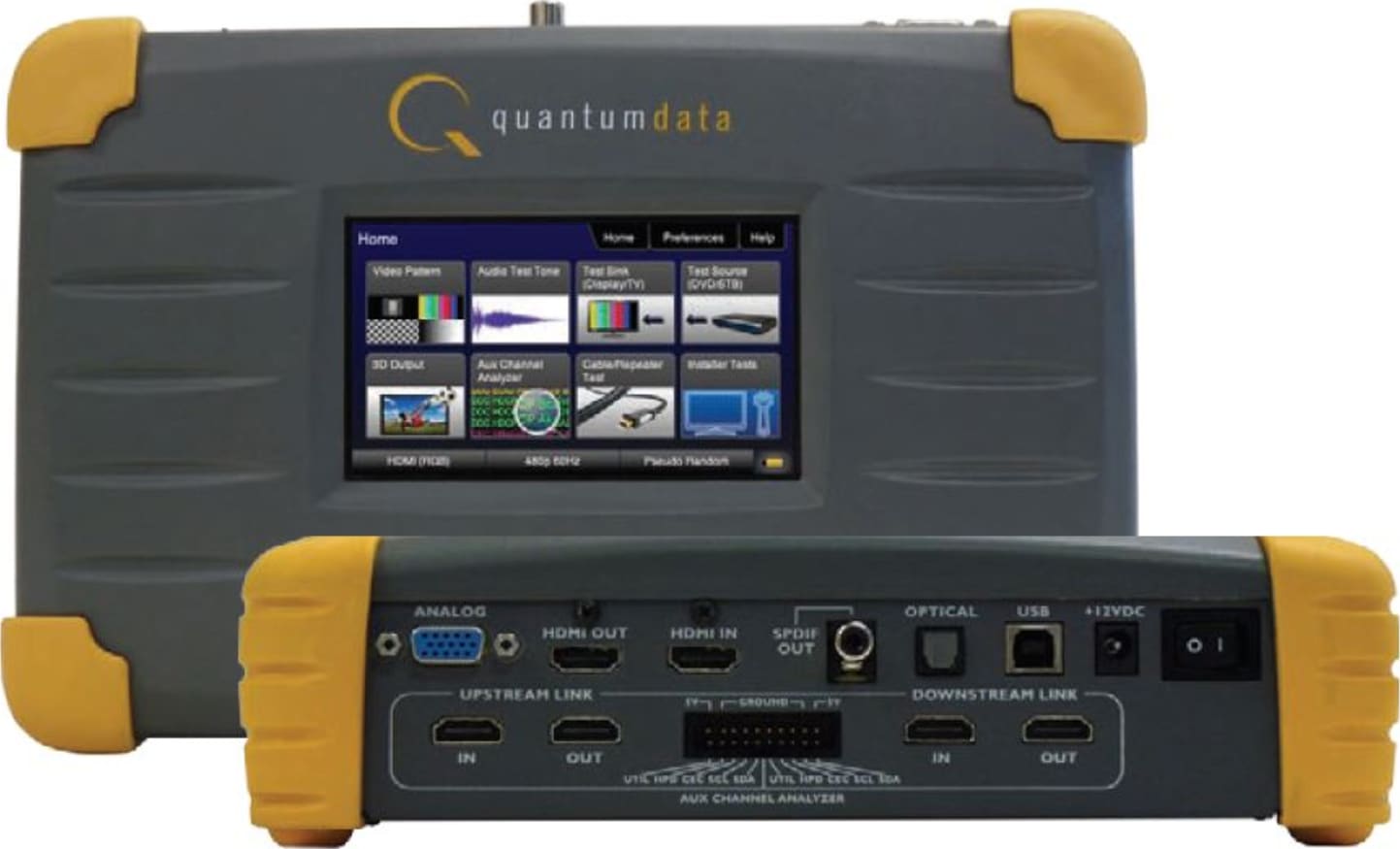

| HDMI |
| Version |
HDMI 1.4b |
| Standard Formats |
VESA (DMT, CVT-R, CVT), CEA |
| Connector |
(1)Type A Tx; (1) Type A Rx |
| Protocol |
HDMI, DVI |
| Video Colorimetry |
ITU-R BT.601-5, ITU-R BT.709-5 |
| Video Max Pixel Rate |
225 MHz (2.25 Gbps/channel TMDS rate) |
| Color Depths |
8, 10, 12 bits |
| Video Encoding / Sampling |
RGB, YCbCr; 4:4:4, 4:2:2, 4:2:0 |
| HDCP |
Versions 1.4 |
| Audio Formats |
LPCM, Dolby (DD, DD+, TrueHD), DTS (ES, HD, Master Audio) |
| Audio LPCM Settings |
Sampling rates (32 – 192 kHz); Bits per sample (16, 20, 24) |
| Digital Audio |
| Connectors |
Optical (JIS FOS); SPDIF (RCA) |
| Audio Formats |
LPCM, Dolby (DD, DD+), DTS (ES, HD) |
| Audio LPCM Settings |
Sampling rates (32 – 192 kHz); Bits per sample (16, 20, 24) |
| Analog Video |
| Connector |
VGA HD-15 |
| Format Standards |
VESA, CEA |
| Video Encoding |
RGB, YPbPr |
| Max Pixel Rate |
80 MHz (higher resolutions supported through pixel repetition) |
| Options |
| Cable Test |
Test digital video cables and video distribution networks |
| Netwrok Analyzer |
Protocol testing of sources and sinks |
| ACA Monitor (emulation) |
Monitor aux channel and CEC bus while emulating a source or sink device |
| ACA Monitor (passive) |
Monitor aux channel and CEC bus passively between source and sink devices |
| Report File Creation |
NEW!Provides html formatted report of tests performed on a project |
| Instrument |
| Battery |
6AA NiMh batteries. 2 hours between charge. Overnight charge required. |
| AC Adapter |
100-120 VAC, 47-63Hz; 0.4 amps max |
| Weight |
3.25 LBS; 1.47 Kg |
| Embedded Display |
480 (H); x 272 (V) resolution; 24 bit RGB color. |
| Tilt Bail |
For convenient viewing |
| Size |
Height: 2.7 in. (6.98 cm) Width: 9.75 in. (24.76 cm) Depth: 6 in. (15.24 cm) |
| Command Line Control |
USB Type B |
| Environmental |
Operating Temp: 32 to 104 (F); 0 to 40 (C) |
| File Access |
USB Type B (command line / file transfer; SD Card (upgrades / file transfer) |
