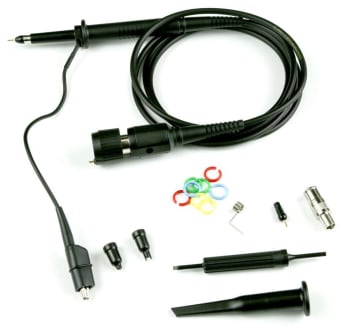

5 (1 Review) | Catalog: PP020-2 | Model: Teledyne LeCroy PP020-2
2 pack of 500 MHz Passive Probe for WaveSurfer 3000, 10:1, 10 MOhm
List Price: $513.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The Teledyne LeCroy PP020 is a passive high impedance voltage oscilloscope probes designed and calibrated for use with general purpose oscilloscopes having an input impedance of 1 MΩ shunted by 16 pF. However, it may be compensated for use with instruments having an input capacitance between 8 to 20 pF for PP020. It is compatible with oscilloscopes that automatically detect probe attenuation and adjust their readout accordingly.
Typical Voltage Derating Curve Typical Input Impedance
Passive probes are the standard probe provided with most oscilloscopes. Typical passive probes provide a 10:1 attenuation and feature a high input resistance of 10 MΩ. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes are designed to handle voltages of at least 400V, some as high as 600V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input. Each passive probe is recommended for a certain oscilloscope, using the right passive probe with the right oscilloscope means that the probe will be properly compensated across the entire bandwidth. Using probes with a different oscilloscope will only let you compensate for low frequencies.
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
LeCroy PP020-2
5.0
Works as advertised. Very well constructed, with good specs (better than the default probe that came with my scopes). Has worked very well for a few months.
Verified Purchase Michael Drozdov on May 16, 2018 I found this helpful (0)
