Teledyne LeCroy's instrument carts provide users with a compact, sturdy, mobile tool for transporting larger Teledyne LeCroy oscilloscopes to different laboratory locations.
- Deluxe oscilloscope cart with one tiltable shelf and additional storage
- Fabricated from steel and aluminum and finished with a durable powder-coat epoxy
- High quality casters for smooth travel
- Extensive storage
- Display and controls located at convenient work height
- Bottom tray/shelf for larger instruments

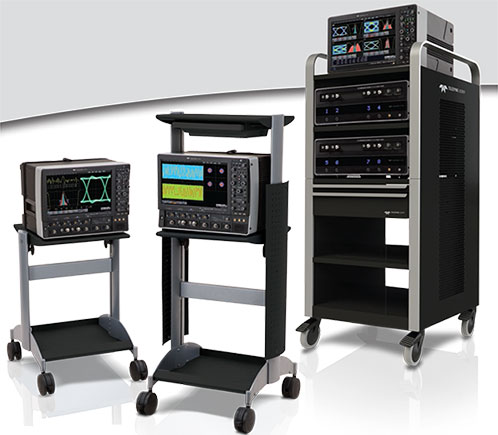

Oscilloscope Carts
Teledyne LeCroy’s instrument carts provide users with a compact, sturdy, mobile tool for transporting larger LeCroy oscilloscopes to different laboratory locations. OC102x-A shelves are height and angle-adjustable, with supporting mounting straps to secure instruments. In addition, larger base bin storage is conveniently located on the bottom of the cart, and OC1024-A has “pegboard” style side panels for storage of probes, cables or other accessories with a storage drawer for smaller items.
The OC910 is the ultimate instrument rack. It’s sleek lines and industrial design nicely complement the LabMaster 9 Zi-A and 10 Zi industrial design. It holds the Master Control Module or Master Acquisition Module and up to four other pieces (e.g. the separate CPU module and/or additional acquisition modules) on up to three different shelves. It can provide space for up to 16 acquisition channels at 36 GHz (using LabMaster 10 Zi acquisition modules) with storage space for accessory items.
Models are available for most Teledyne LeCroy oscilloscopes. All models are usable with nearly any oscilloscope of 12” depth or more. OC1021-A and 1024-A are ideal for WaveMaster 8000A Series, SDA9000, SDA11000, SDA13000, SDA18000, WaveMaster SDA/DDA 8 Zi/Zi-A Series. The larger OC910 deluxe oscilloscope cart is ideal for LabMaster 9 Zi-A and 10 Zi Series.

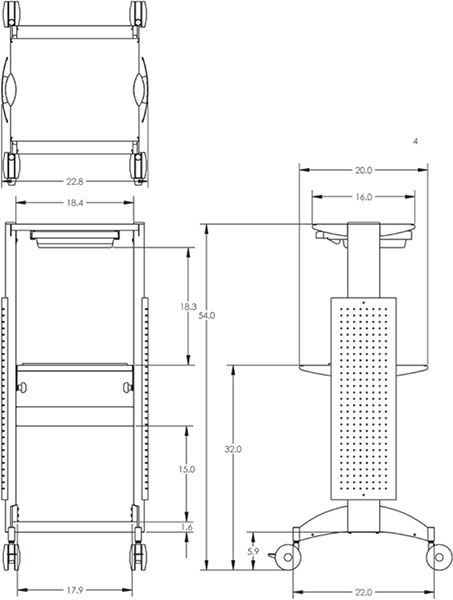

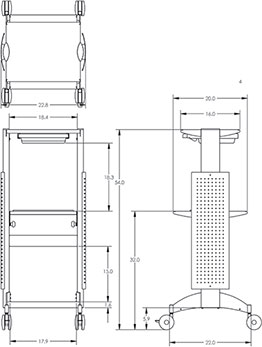

OC1024-A Dimentional Detail
|
|

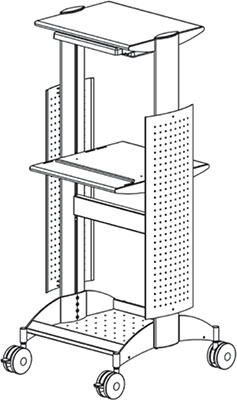

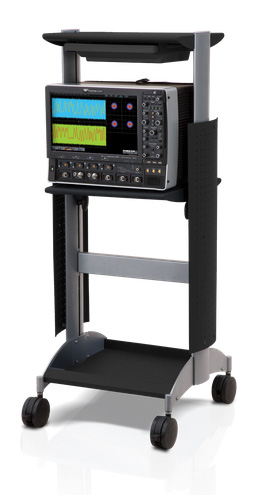

OC1024-A
This cart provides additional storage drawers, shelves, and pegboard storage area to hold not only an oscilloscope, but a variety of other test instruments, cables, probes and other accessories. All dimensions are in US inches. |
