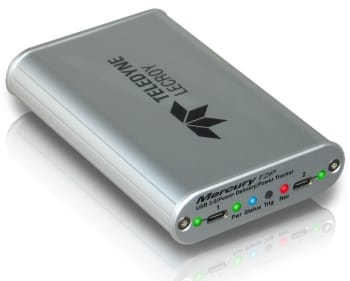

Teledyne LeCroy Mercury T2P - Advanced Analyzer

Name: Teledyne LeCroy Mercury T2P - Advanced Analyzer
Brand: Teledyne LeCroy
SKU: LeCroyMercury T2P ADV
Price: 3395.00 USD
Availability: InStock

0 reviews | Catalog: USB-TMAP-M03-X | Model: Teledyne LeCroy Mercury T2P ADV

Compare

Mercury T2P Advanced Analyzer

Supports USB Power Delivery 2.0 - Captures all CC and PD events and displays them in the easy-to-understand CATC Trace view
Supports USB 2.0 - Capable of capturing all USB 2.0 speeds (LS, FS, HS) over Type-A, B, & C devices
Portable and Affordable - Compact bus-powered system weighs under 8 oz.
512 MB Recording Memory - Extend capture time with spool-to-disk recording
High Impedance probe - Non-intrusive probe preserves real world signal and timing conditions
Advanced Triggering - Isolates important traffic, specific errors or patterns
Extensive Decodes - Mass storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Device (HID), Audio, Video, Communication and more
Hardware Filtering - Automatically exclude non-essential traffic
Event Reporting - Quickly identify and track error rates, abnormal bus activity or timing conditions
Power Tracker - VBUS, VCONN, & CC power analysis

View Product Details

List Price: $3,395.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Options

for the Teledyne LeCroy Mercury T2P ADV

Teledyne LeCroy USB-MCDP-M03-X Add SBU Decode (DisplayPort Aux messages) to Mercury...

Catalog: USB-MCDP-M03-X

(0)

In Stock!

Add to Cart

Teledyne LeCroy Mercury T2P - Advanced Analyzer

USB2.0 / USB1.1 Recording
Spool-to-Disk Recording
512MB Memory
USB 2.0 Event Triggering
Type-C Connectors, Cables, Adapters
Power Tracker

The Teledyne LeCroy Mercury T2C and T2P add USB Type-C and Power Delivery 3.0 support to the industry's smallest and most affordable hardware-based USB 2.0 protocol analyzers. The Mercury combines the de-facto standard CATC Trace display, USB class decoding and Power Delivery 3.0 support in an analyzer that fits in a shirt pocket.

View and Understand USB Protocol

Featuring the industry-leading CATC Trace expert analysis software, the Mercury system provides an easy-to-use display that graphically decodes Power Delivery 3.0 protocol, in addition to USB 2.0 protocol traffic. With the Standard or Advanced edition, all protocol layers can be expanded to show the underlying transactions and packets. Tooltips help explain protocol events making it easier for non-experts to identify errors.

Real-Time Triggering

Isolating specific protocol events with real-time triggering is essential to capturing intermittent problems. The Mercury system provides sophisticated triggering with drag-and-drop selections for PID type, data patterns, standard requests, errors, and bus events. The Mercury features up to 512 MB of on-board memory and supports spool-to-disk capture for extended recording.

USB Power Delivery Support

The Mercury system supports USB Type-C and BMC Power Delivery 3.0 with the capture and decode of all Power Delivery packets. View all PD negotiations over the CC wire including VDM's, role swaps, and entry/exit from alternate modes. The Mercury T2P provides all the PD support plus Power Tracker for vBUS & vCONN analysis and 512MB recording memory.

Find the Issues Fast

The Mercury system provides many mechanisms to measure and report on USB traffic. The Bus Utilization display shows data, packet length, and bus usage by device. Using the Traffic Summary window, users can evaluate statistical reports at a glance or navigate to individual fields. Real-time statistics show throughput by the endpoint.

The CATC Trace display uses collapsible headers to group all packets that are part of a single transfer.

	Mercury T2C USB Power Delivery	Mercury T2C Standard USB 2.0	Mercury T2C Advanced USB 2.0	Mercury T2P Advanced USB 2.0	Mercury T2P Standard USB 2.0
USB 2.0 / 1.1 Recording	Can be added with upgrade	✓	✓	✓	✓
Spool-to-disk Recording	✓	✓	✓	✓	✓
Recording Memory	256MB	256MB	256MB	512MB	512MB
USB 2.0 Event Triggering	Can be added with upgrade	✓	✓	✓	✓
PID Type and Device Address	Can be added with upgrade	✓	✓	✓	✓
Data Pattern	Can be added with upgrade	✓	✓	✓	✓
Max states per Sequence	Can be added with upgrade	4	7	7	4
Max Number of Sequences	Can be added with upgrade	2	2	2	2
Power Delivery 3.0 capture	✓	Can be added with upgrade	Can be added with upgrade	Can be added with upgrade	Can be added with upgrade
Type-C Connectors, Cables, Adapters	✓	✓	✓	✓	✓
USB Real-Time Statistics (RTS)	Can be added with upgrade	✓	✓	✓	Can be added with upgrade
Export to .CSV (Packet Layer)	Can be added with upgrade	Can be added with upgrade	✓	✓	Can be added with upgrade
Automation API	Can be added with upgrade	Can be added with upgrade	✓	✓	Can be added with upgrade
Verification Script Engine	Can be added with upgrade	Can be added with upgrade	✓	✓	Can be added with upgrade
Power Tracker				✓	✓
DisplayPort AUX capture (SBU)				Can be added with upgrade	Can be added with upgrade

Specifications
Host Requirements	Mircosoft ® Windows 7, Windows 8.1 or Windows 10
Standard Trigger Events	Packet Identifier, Token Pattern, Frame Pattern, Device Request, Data Pattern, Bus Conditions, Errors, Transactions, Data Length, Splits, PD Messages, Type-C logical states
Reporting & Statistics	Packet Level, Transaction Level, Transfer Level, Error Reports
Recording Memory Size	Mercury T2C: 256 MB Mercury T2P: 512 MB
Power Consumption	Idle: 460 mA (typical); Active: 500 mA (typical) (Note: assumes Vconn current required is < 50 uA)
Connectors	USB Type-C
Temperature	Operating: 0°C to 55°C (32°F to 131°F) Non-Operating: -20°C to 80°C (-4°F to 176°F)
Humidity	Operating: 10% to 90% non- condensing
Dimensions	Mercury T2C: 80 x 90 x 24 mm (3.0” x 3.6” x 1”) Mercury T2P: 80 x 123 x 24 mm (3.0” x 4.8” x 1”)
Net Weight	Mercury T2C: 158g (5.8 oz) Mercury T2P: 220g (7.7 oz)
	Mercury T2C Power Delivery	Mercury T2C Standard USB 2.0	Mercury T2C Advanced USB 2.0	Mercury T2P Standard SUB 2.0	Mercury T2P Advanced USB 2.0
Model	USB-TMPD-M02-X	USB-TMS2-M02-X	USB-TMA2-M02-X	USB-TMSP2-M02-x	USB-TMAP-M03-X
USB 2.0 / USB 1.1 Recording	□	✔	✔	✔	✔
Power Delivery (BMC) Recording	✔	□	□	□	□
Spool-to-Disk Recording	✔	✔	✔	✔	✔
Type C Connectors / Cables	✔	✔	✔	✔	✔
Recording Memory	256MB	256MB	256MB	512MB	512MB
USB 2.0 Event Triggering	□	✔	✔	✔	✔
Triggering Power Delivery Events	✔	□	□	□	□
Triggering PID Type, Dev Address	□	✔	✔	✔	✔
Triggering Payload & Dev. Req	□	✔	✔	✔	✔
Max States per sequence	□	4	7	4	7
Max Number of sequence	□	2	2	2	2
USB Real-Time Statistics (RTS)	□	✔	✔	✔	✔
Export to .CSV (Packet Layer)	□	□	✔	✔	✔
Automation API	□	□	✔	□	✔
Verification Script Engine	□	□	✔	□	✔
Power Tracker™				✔	✔
Thunderbold-3™ (LSTX) Decoding				□	□
Display Port™ (AUX) Decoding				□	□
