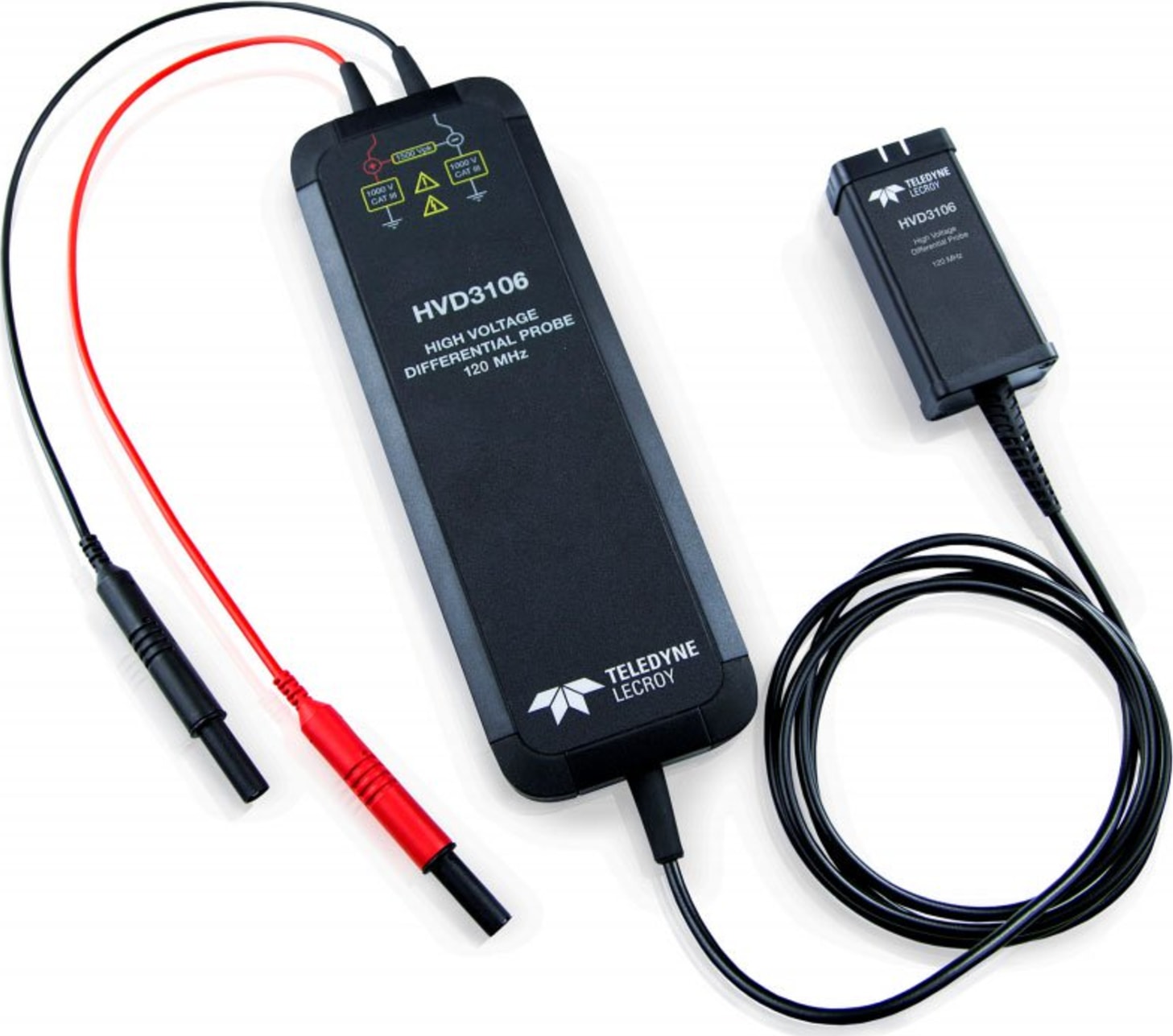

1kV, 120 MHz High Voltage Differential Probe without tip Accessories

The HVD3106-NOACC high voltage differential probe covers a wide range of applications, from 120/240 V switch-mode power supplies through 600 V class electrical apparatus. It is the only 1 kV safety rated probe that serves the full 600 V class requirement.

Widest Application Coverage

The HVD310x high voltage differential probe covers a wide range of applications, from 120/240 V switch-mode power supplies through 600 V class electrical apparatus. It is the only 1 kV safety rated probe that serves the full 600 V class requirement.

Exceptional Common-Mode Rejection Ratio

The CMRR for the probes is exceptional out to very high frequencies, greatly improving measurement capability in noisy, high common-mode environments found in power electronics. The high CMRR combined with low probe noise and high offset capability makes the probes capable of measuring very small control signals floating on high common-mode voltages.

High Precision Measurements

HVD probes provide 1% gain accuracy enabling precise voltage measurements. AutoZero capability ensures further measurement precision by allowing small offset drifts to be calibrated out of the measurement.

Complete Probe Integration

The ProBus interface provides power and communication to the probe eliminating the need for a separate power supply or batteries. Attenuation is automatically selected based on oscilloscope gain range (V/div) setting.

Teledyne LeCroy high voltage differential probes provide high CMRR over a broad frequency range to simplify the measurement challenges found in noisy, high common-mode power electronics environments.The probe’s design is easy-to-use and enables safe, precise high voltage floating measurements.

The HVD3000 series of high voltage differential probes cover the fullest range of applications, from 120/240 V switch-mode power supplies through 600 V class and 5 kV class electricalapparatus. The table below provides a list of recommended probe models based on specific device under test applications.


Device Under Test	Recommended Model	Safety Class	Bandwidth	Cable Length	Tip Accessories Included
120 V/240 V Half-Bridge Circuit Topologies	HVD3102	1 kV	25 MHz	2 m	Yes
	HVD3102-NOACC	1 kV	25 MHz	2 m	No
	HVD3106	1 kV	120 MHz	2 m	Yes
	HVD3106-NOACC	1 kV	120 MHz	2 m	No
380 V - 600 V Class Electrical Apparatus	HVD3106	1 kV	120 MHz	2 m	Yes
	HVD3106-NOACC	1 kV	120 MHz	2 m	No
	HVD3106-6M	1 kV	80 MHz	6 m	Yes
Solar PV Inverter	HVD3106	1 kV	120 MHz	2 m	Yes
	HVD3206	2 kV	120 MHz	2 m	Yes
5 kV Electrical Apparatus	HVD3605	8.485 kV	100 MHz	6 m	Yes
