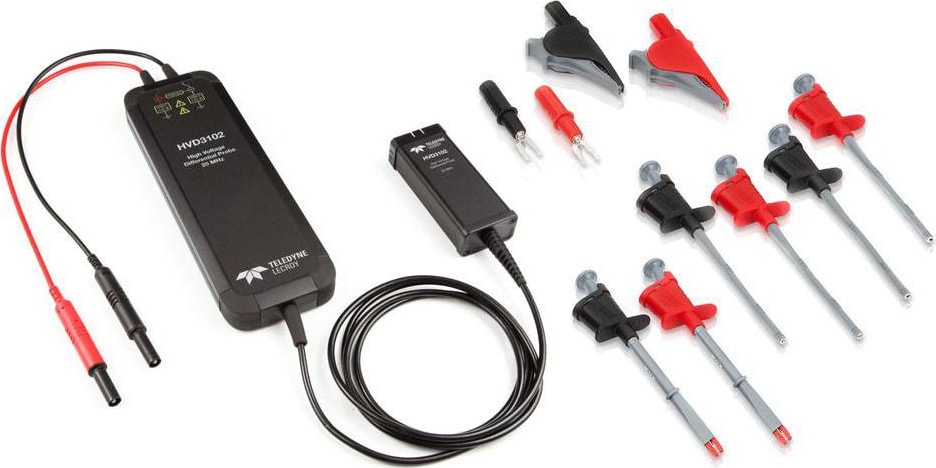

LeCroy HVD3102 25 MHz High Voltage Differential Probe
The HVD3000 high voltage differential probes provide high CMRR over a broad frequency range to simplify the measurement challenges found in noisy, high common-mode power electronics environments. The probe’s design is easy-to-use and enables safe, precise high voltage floating measurements.
Exceptional Common-Mode Rejection Ratio
The CMRR for is exceptional out to very high frequencies, greatly improving measurement capability in noisy, high common-mode environments found in power electronics. The high CMRR combined with low probe noise and high offset capability makes the probes capable of measuring very small control signals floating on high common-mode voltages.
High Precision Measurements
HVD probes provide 1% DC and low frequency gain accuracy enabling precise voltage measurements. AutoZero capability ensures further measurement precision by allowing small offset drifts to be calibrated out of the measurement.
Wide Differential Voltage Range
The wide voltage range of 1500 Vp-p enables flexible probing in a variety of floating measurement applications. Beyond that limit, the HVD probes can be safely operated up to 2000 Vp-p for capturing short duration overshoots. With the HVD connected, the oscilloscope vertical sensitivity ranges from 400 V/div (3200 V on screen) to display high voltage signals, down to 100 mV/div to show the small details.
Complete Probe Integration
The ProBus interface provides power and communication to the probe eliminating the need for a separate power supply or batteries. Attenuation is automatically selected based on oscilloscope gain range (V/div) setting.
