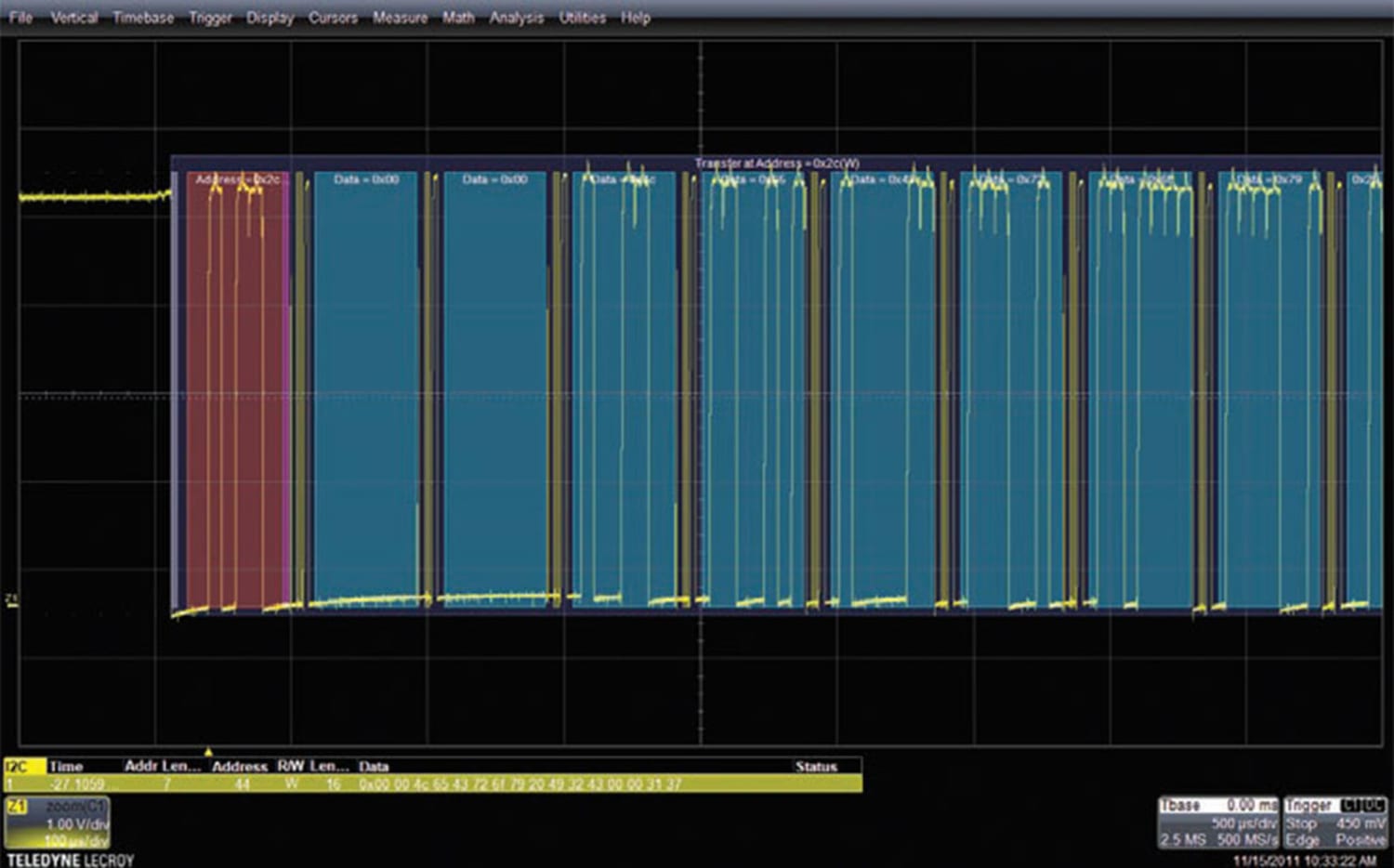

| LeCroy UART-RS232bus TD Specifications |
| Protocol Setup |
For UART
Select BitRate
Select # Data Bits (5-9)
Select Parity (Odd, Even, None)
Select # Stop Bits (1, 1.5, 2)
Select Bit Order (MSB or LSB)
Select Polarity (IdleLow or IdleHigh)
For RS-232
Select BitRate
Select # Data Bits (5-8)
Select Parity (Odd, Even, None)
Select # Stop Bits (1, 1.5, 2) |
| Decode Capability |
| Format |
Hexadecimal, Binary, ASCII |
| Decode Setup |
Threshold definition required. Default is to Percent amplitude. Select BitRate, # Data Bits, Parity, # Stop Bits, Bit Order, and Polarity (for RS-232, no Bit Order or Polarity setup). |
| Decode Input |
Any analog Channel, Memory, or Math trace. |
| # of Decoded Waveforms |
Up to 4 buses may be decoded at one time. In addition, zooms can be displayed (with decoded information). |
| Location |
Overlaid over DATA waveform, on Grid. (Note: Use multi-grid if there is more than one decoder ON) |
| Visual Aid |
Color Coding for Start Bit, Stop Bit, Parity Bit, and DATA. Decode information is intelligently annotated based on timebase setting. |
| Trigger Capability |
| Format |
Hexadecimal or Binary. |
| Trigger Setup |
Trigger on DATA or Parity ERROR |
| ADDRESS (ID) Condition Set Up |
N.A. |
| DATA Condition Setup |
<=, <, =, >, >=, <>, in range, out of range, don’t care. |
| DATA Setup |
Hexadecimal: # Data Bytes = 0 to 12.
Data can be defined by nibble.
Binary: Any combination of 0,1, or X for 1-96 bits.
May specify particular data position anywhere in a 2048 byte sequence. |
| ACK Condition Setup |
N.A. |
| Bit |
Any from 300 b/s to 10 Mb/s (User settable) |
| Trigger Input |
Any analog Channel or the EXT input. |
| Trigger Design |
Internal to oscilloscope, settable like any other oscilloscope trigger. |
| Search Capability |
| Pattern Search |
Search by DATA in Hexadecimal formats, or for Next ERROR. |
| Other |
| Compatible With… |
TD (Trigger & Decode) Option compatible with all WaveMaster® 8 Zi/Zi-A, WavePro® 7 Zi/Zi-A, WaveRunner® 6Zi, WaveRunner Xi and WaveSurfer Xs |
