Teledyne LeCroy HDO4K-I2CBUS TD - I2C Bus Trigger and Decode Option for HDO4000

Name: Teledyne LeCroy HDO4K-I2CBUS TD - I2C Bus Trigger and Decode Option for HDO4000
Brand: Teledyne LeCroy
SKU: LeCroyHDO4K-I2CBUS TD
Price: 1130.00 USD
Availability: InStock

0 reviews | Catalog: HDO4K-I2CBUS TD | Model: Teledyne LeCroy HDO4K-I2CBUS TD

LeCroy I2c Bus Trigger And Decode Option

Compare

I2C Bus Trigger and Decode Option for HDO4000

I2C Bus Trigger and Decode Option for HDO4000
Set an ACK condition (ACK, NO ACK, Don't Care) in all frame trigger setups
Does not require clock trace to be displayed during decode
EEPROM read/write 2048 byte trigger capability
Frame Length trigger capability
Conditional DATA trigger definition (<, <=, =, >, >=, <>, IN RANGE, OUT of RANGE)
Address can include a R/W bit, or define as Don't Care
Use analog or digital (MSO) inputs for acquisition and triggering.
EXT input may be used for clock signal
Intuitive, color-coded decode overlays
Interactive protocol table with zoom and pattern search

View Product Details

Your Price: $1,130.00

In Stock:

Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Teledyne LeCroy HDO4K-I2CBUS TD I2C Bus Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-CAN FDBUS TD CAN and CAN FD Trigger and Decode Option for HDO4K Osci ...	Teledyne LeCroy HDO4K-ENETBUS D ENET Bus Decode Option for HDO4K	Teledyne LeCroy HDO4K-MANCHESTERBUS D Manchester Bus Decode Option for HDO4K	Teledyne LeCroy HDO4K-NRZBUS D NRZ Bus Decode Option for HDO4K	Teledyne LeCroy HDO4K-AUTO CAN, LIN and FlexRay Trigger and Decode Package for HDO4000	Teledyne LeCroy HDO4K-LINBUS TD LIN Bus Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-FLEXRAYBUS TD FlexRay Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-EMB I2C, SPI, UART and RS-232 Trigger and Decode Package for HDO4000	Teledyne LeCroy HDO4K-SPIBUS TD SPI Bus Trigger and Decode Option for HDO4000	Teledyne LeCroy HDO4K-UART-RS232BUS TD UART and RS232 Bus Trigger and Decode Option for HD ...	Teledyne LeCroy HDO4K-AUDIOBUS TD AudioBus trigger and decode option for HDO4000	Teledyne LeCroy HDO4K-DIGRF3GBUS D DigRF 3G Bus Decode option for HDO4000	Teledyne LeCroy HDO4K-DIGRFV4BUS D DigRF V4 Bus Decode option for HDO4000	Teledyne LeCroy HDO4K-DPHYBUS D MIPI D-PHY CSI-2, DSI Bus Decode option for HDO4000	Teledyne LeCroy HDO4K-ARINC429BUS ARINC 429 Bus Symbolic Decode option for HDO4000	Teledyne LeCroy HDO4K-1553 TD MIL-STD-1553 Trigger and decode option for HDO4000	Teledyne LeCroy HDO4K-USB2BUS TD USB 2.0 Bus Trigger and Decode option for HDO4000	Teledyne LeCroy HDO4K-USB2-HSICBUS D USB 2.0 HSIC Decode Option for HDO4000	Teledyne LeCroy HDO4K-PWR Power Analysis Option for HDO4000
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Teledyne LeCroy HDO4K-I2CBUS TD - I2C Bus Trigger and Decode Option for HDO4000

Set an ACK condition (ACK, NO ACK, Don't Care) in all frame trigger setups
Does not require clock trace to be displayed during decode
EEPROM read/write 2048 byte trigger capability
Frame Length trigger capability
Conditional DATA trigger definition (<, <=, =, >, >=, <>, IN RANGE, OUT of RANGE)
Address can include a R/W bit, or define as Don't Care
Use analog or digital (MSO) inputs for acquisition and triggering.

The Most Intuitive Decode

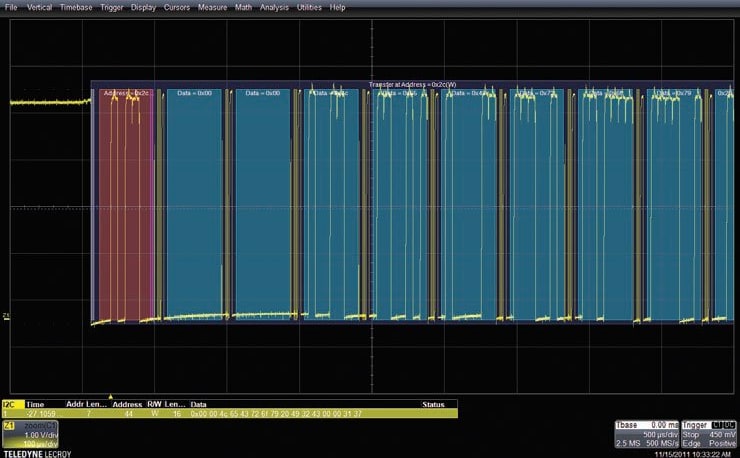

Advanced software algorithms deconstruct the waveform into protocol information, then overlay the decoded data on the waveform. Decode information condenses or expands depending on the timebase/zoom ratio setting, so understanding messages is easy. Various sections of the protocol are color-coded to make it easy to understand, especially for users new to I2C, SPI, UART, and RS-232 serial data. The decode operation is fast—even with long acquisitions. The user can choose to decode into Hex, Binary, or ASCII formats.

Teledyne LeCroy’s decode algorithms allow the CLOCK signal to be input to the external channel, which saves valuable channels for other signals. Or, if the CLOCK signal is input to a channel, it can be turned OFF as desired to reduce display clutter.

Powerful Conditional Data Triggering

Completely isolate specific I2C, SPI, UART, or RS-232 message events for better understanding and debug. Use a conditional DATA trigger to select a range of DATA values to trigger on, not just a single DATA value. Oftentimes, I2C utilizes DATA bytes to specify sub-addresses for accessing memory locations in EEPROMs. Conditional DATA trigger allows triggering on a range of DATA bytes that correspond to reads or writes to specific sub-address memory blocks in the EEPROM. It can also aid in monitoring DATA outputs from I2C-based sensors, such as analog-to-digital converters, and triggering when DATA is outside a safe operating range. In both cases, verifying proper operation becomes a simple task. Of course, all the basic I2C and SPI triggering capability you would expect is also included.

Full UART and RS-232 Capability and Customization

Complete support for any configuration of UART and standard RS-232. Generic UART is commonly used as the backbone for proprietary protocols, and the flexible setup configuration allows definition to meet your exact need.

Powerful Triggering, Intuitive Decoding

Flexible Triggering

I2C, SPI, and UART all have special use cases and the Teledyne LeCroy Trigger and Decode solutions address these cases. The I2C trigger can be configured for 7 or 10-bit addressing with out without inclusion of the R/W bit. The SPI trigger can be configured for a range of CPOL and CPHA settings as well as the Simplified SPI protocol. With the UART trigger 8 and 9-bit (8+1) formats are supported.

Simultaneously decode up to 4 serial data buses. When using the MSO option on WaveRunner Xi or WaveSurfer Xs the digital inputs D0, D1, D2, etc. can be used as the source for a serial data trigger and decode.

Convenient Table Display Summarizes Results

Turn your oscilloscope into a protocol analyzer with the Table display of protocol information. Custom configure the Table to display only the information you want, and export Table data to an Excel file. Touch a message in the table and automatically zoom for detail. In all cases, the Table never obscures your waveform data.

Display your values in an easy-to-understand table. Touch a row to zoom, or export to Excel with one button push.

Search and Zoom

I2C, SPI, UART, and RS-232 messages can be quickly located by searching on Address (I2C) or DATA (I2C, SPI, UART, RS-232). Pressing an arrow button advances the single zoomed message view one message to the right or left of the current message.

Search through long record of decoded data by entering the message or address you are looking for and clicking the right or left search arrows.

LeCroy I2Cbus TD Specifications
Protocol	NA
Decode Capability
Format	Hexadecimal, Binary, ASCII
Decode Setup	Threshold definition required. Default is to Percent amplitude. Choose to Decode address values including/not including the R/W bit in address value.
Decode Input
# of Decoded Waveforms	Up to 4 buses may be decoded at one time. Sources can be Channels or Memory Waveforms. In addition, zooms can be displayed (with decoded information).
Location	Overlaid over DATA waveform, on Grid
Visual Aid	Color Coding for FRAME, START/ ReSTART bit, ADDR, R/W, DATA, ACK, and STOP bit
Trigger Capability
Format	Hexadecimal or Binary. ADDRESS and DATA can be set up with different formats.
Trigger Setup	Trigger on START, ReSTART, STOP, ADDR, DATA, ADDR+DATA, Data Length, Missing ACK
ADDRESS (ID) Condition Set Up	Specify one ADDRESS with condition of = 7 or 10-bit ADDRESS supported with full Read, Write, or R/W=”Don’t Care” selectability on both 7 and 10-bit ADDRESSes Choose to Trigger on address values that include/don’t include R/W bit in address value.
DATA Condition Setup	<=, <, =, >, >=, <>, in range, out of range, don’t care.
DATA Setup	Hexadecimal: # Data Bytes = 0 to 12. Data can be defined by nibble. Binary: Any combination of 0,1, or X for 1-96 bits. Data pattern can be set to start on any byte in a 2048-byte window (EEPROM mode only).
ACK Condition Setup	For any ADDR, ADDR+DATA, ADDR+DATA LENGTH, or EEPROM frame setup, select an ACK Condition of ACK, NO ACK, and DON’T CARE.
Bit	Full range over I2C specification for Standard, Fast, Fast-Mode Plus, and Highspeed modes. Auto-detected
Trigger Input	Any analog Channel or the EXT input. Clock may be input to EXT to conserve available analog Channels.
Trigger Design	Internal to oscilloscope, settable like any other oscilloscope trigger
Search Capability
Pattern Search	Search by ADDRESS or DATA in Hexadecimal format
Other
Compatible With…	TD (Trigger & Decode) Option compatible with all WaveMaster 8Zi/Zi-A, WavePro 7Zi/ Zi-A, WaveRunner 6Zi, WaveRunner® Xi and WaveSurfer® Xs
